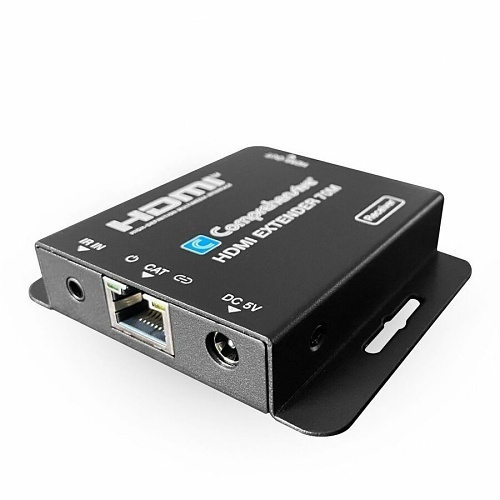

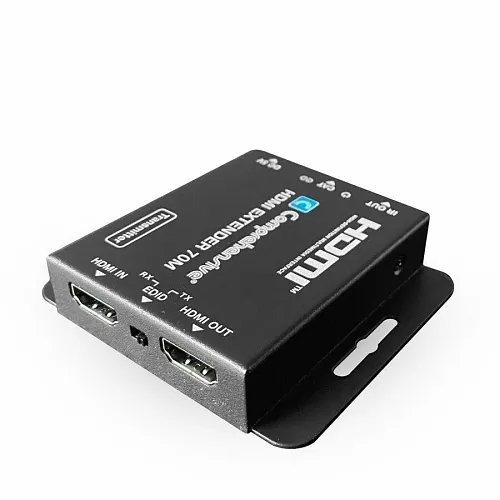

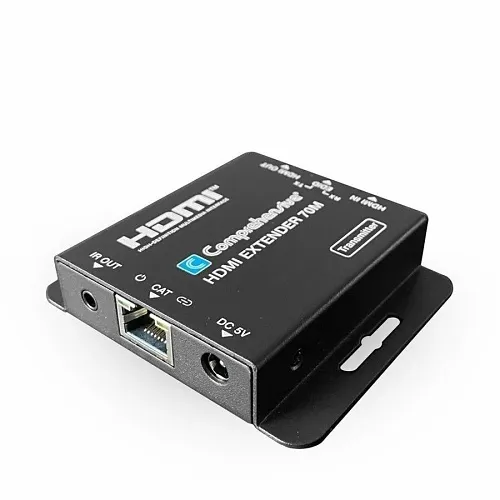

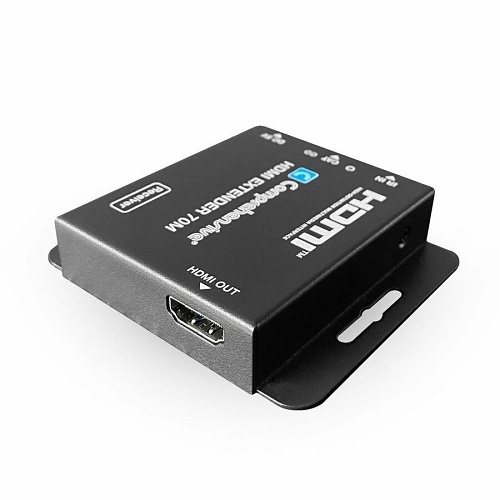

Comprehensive CHE-1 4K HDMI Extender with IR control up to 230'
Image of 5
Key Features
- Extend HDMI up to 230' (1080p) or 130' (4K) over Cat5e/6 to simplify long-distance AV and surveillance deployments
- EDID management and HDCP 1.4 compliance ensure reliable source/display handshake for plug-and-play integration
- Directional IR pass-through lets you control remote sources from the display location, ideal for centralized monitoring
- HDMI loop output for a local monitor or cascading to additional displays, reducing the need for extra splitters
- Compact, low-voltage design fits tight installations and comes with a 3-year warranty for professional reliability
Quick Specifications
- Product Model
- CHE-1
- Brand Name
- Comprehensive
- Product Name
- 4K HDMI extender with IR control up to 130ft (40m), 1080p 230ft (70m)
- Product Type
- Video Extender Transmitter/Receiver
Frequently Bought Together
Comprehensive CHE-1 4K HDMI Extender with IR control up to 230'
$126.14
2 items selected
Total: $151.09
Explore the details
Product information
CHE-1
Overview
Extend high-quality video across long cable runs for security, surveillance and professional AV with the Comprehensive CHE-1 4K HDMI extender. This pro HDMI extender transmits full 1080p60 up to 230' (70 m) and 4K30 up to 130' (40 m) over standard Cat5e/6 twisted-pair cabling, cutting installation time and cost compared with long HDMI runs. With up to 10.2 Gbps signaling, HDMI 1.4/HDCP 1.4 compliance and EDID management, the CHE-1 promotes a reliable handshake between sources and displays for consistent monitoring and digital signage performance. Directional IR pass-through provides remote control of source equipment from the display end — ideal for control rooms, surveillance stations and distributed AV systems — while the HDMI loop output supports a local monitor or cascading to additional screens. Compact, rack-friendly housings and standard RJ-45 connectivity make this a practical choice for low-voltage integrators and networked AV projects. Add the CHE-1 to your security, monitoring or commercial AV deployments — contact sales or order now to streamline your installation.
Features
- Extend HDMI up to 230' (1080p) or 130' (4K) over Cat5e/6 to simplify long-distance AV and surveillance deployments
- EDID management and HDCP 1.4 compliance ensure reliable source/display handshake for plug-and-play integration
- Directional IR pass-through lets you control remote sources from the display location, ideal for centralized monitoring
- HDMI loop output for a local monitor or cascading to additional displays, reducing the need for extra splitters
- Compact, low-voltage design fits tight installations and comes with a 3-year warranty for professional reliability
| General Information | |
|---|---|
| Brand Name | Comprehensive |
| Manufacturer | Comprehensive Connectivity Company |
| Product Name | 4K HDMI extender with IR control up to 130ft (40m), 1080p 230ft (70m) |
| Product Type | Video Extender Transmitter/Receiver |
| Product Model | CHE-1 |
| Application/Usage | Display |
| Country of Origin | CN |
| Manufacturer Part Number | CHE-1 |
| Technical Information | |
| Cable Type | Category 6 |
| Media Type Supported | Twisted Pair |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 229' |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Display & Graphics | |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Physical Characteristics | |
| Depth | 2.72" |
| Width | 3.13" |
| Height | 0.65" |
| Video | |
| Graphics Mode | 4K UHD |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Environmentally Friendly | Yes |
