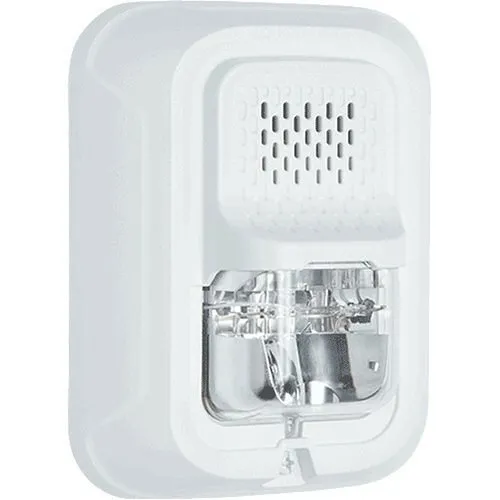

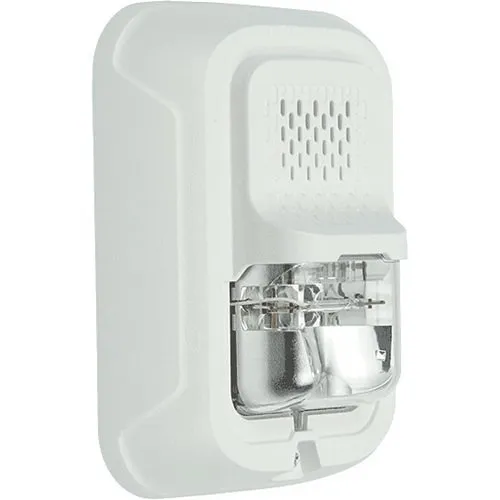

System Sensor CHSWL L-Series Selectable Output Chime Strobe, Wall Mount, White
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 3
Key Features
- Reliable private-mode notification for security and nurse stations, enabling trained personnel to investigate alerts without full building evacuation
- Flexible field-selectable candela outputs (15–185 cd) and five tones with two volume levels to meet varied indoor notification and code requirements
- Plug-in wall-mount design with minimal backbox intrusion for faster installs, fewer ground faults and reduced labor costs
- Automatic 12/24V selection (at lower candela settings) and compatibility with legacy SpectrAlert devices for seamless retrofits
- Tamper-resistant housing and captive mounting screw protect the device in high-traffic areas while simplifying maintenance
Quick Specifications
- Product Model
- CHSWL
- Brand Name
- System Sensor
- Product Name
- Chime Strobe, Wall, White
- Product Type
- Chime Strobe
Frequently Bought Together
System Sensor CHSWL L-Series Selectable Output Chime Strobe, Wall Mount, White
$105.16
5 items selected
Total: $191.68
Explore the details
Product information
CHSWL
Overview
For targeted indoor notification where trained staff respond to incidents, the System Sensor CHSWL L-Series selectable output chime strobe delivers a dependable combination of audible and visual alerts. This chime strobe is designed for security desks, nurse stations and monitoring rooms where private-mode notification and clear occupant communication are critical. Installers benefit from a space-saving plug-in wall mount that minimizes intrusion into the backbox and reduces installation time and ground-fault troubleshooting.
The CHSWL offers field-selectable candela settings (examples: 15, 75, 185 cd) and an automatic 12/24V selection at lower outputs, allowing you to dial in the right visual intensity for corridors, lobbies or control rooms while remaining compatible with legacy SpectrAlert and SpectrAlert Advance systems. Five selectable tones and two volume levels let you customize audible alerts to fit security and monitoring workflows without disturbing adjacent areas. Tamper-resistant construction and a captive mounting screw protect the unit in public or secure environments.
Specify the System Sensor CHSWL chime strobe for retrofit and new installations to streamline installation, maintain code flexibility, and enhance security and surveillance notification capabilities. Order or request a quote today.
Features
- Reliable private-mode notification for security and nurse stations, enabling trained personnel to investigate alerts without full building evacuation
- Flexible field-selectable candela outputs (15–185 cd) and five tones with two volume levels to meet varied indoor notification and code requirements
- Plug-in wall-mount design with minimal backbox intrusion for faster installs, fewer ground faults and reduced labor costs
- Automatic 12/24V selection (at lower candela settings) and compatibility with legacy SpectrAlert devices for seamless retrofits
- Tamper-resistant housing and captive mounting screw protect the device in high-traffic areas while simplifying maintenance
| General Information | |
|---|---|
| Brand Name | System Sensor |
| Manufacturer | Honeywell International, Inc |
| Product Name | Chime Strobe, Wall, White |
| Product Type | Chime Strobe |
| Product Model | CHSWL |
| Product Series | L |
| Application/Usage | Fire Alarm, Indoor |
| Manufacturer Part Number | CHSWL |
| Technical Information | |
| Alarm Type | Audible, Visual |
| Connectivity Technology | Wired |
| Physical Characteristics | |
| Color | White |
| Depth | 1.90" |
| Width | 4.70" |
| Height | 5.60" |
| Durability | Tamper Resistant |
| Lens Color | Clear |
| Form Factor | Wall Mount |
| Power Description | |
| Power Source | DC Power |
| Input Voltage | 33V DC |
| Product Information | |
| Mount Type | Wall Mount |
| Product Replacements & Other Alternatives | |
| Model Number Replaces | SH-532BQ |
| Miscellaneous | |
| Compatibility | Compatible Products: Legacy SpectrAlert SpectrAlert Advance Devices |
| Indoor/Outdoor | Indoor |
