AtlasIED CLA402 2-Channel Multi Impedance Power Share Amplifier, 400W

SKU: CLA402 AtlasIED

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

Image of AT-CLA402

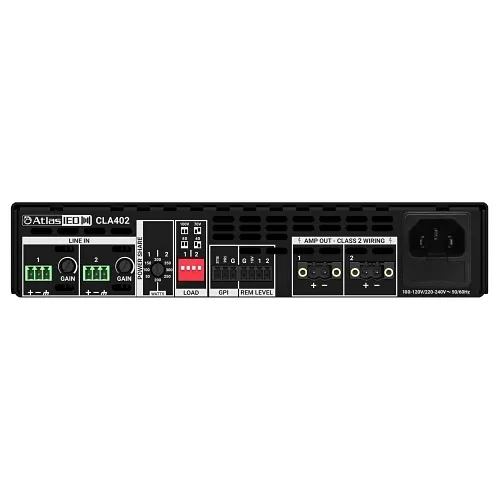

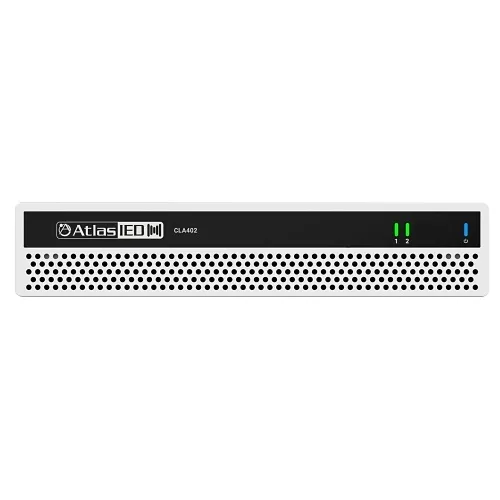

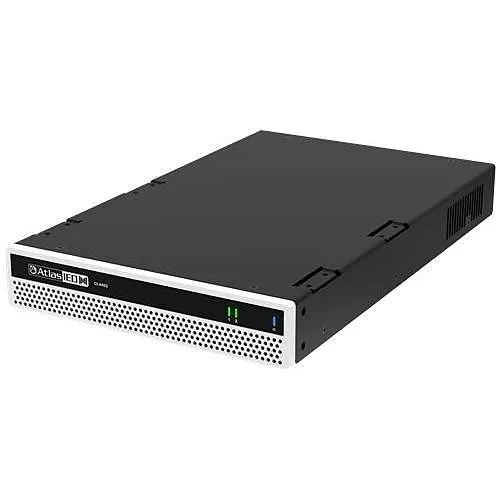

Product images for AtlasIED CLA402 2-Channel Multi Impedance Power Share Amplifier, 400W. 4 image(s) available. Click on image to view full size.

Key Features

  • Patent‑pending Power Share technology lets you allocate up to 400W between zones for consistent, controllable coverage regardless of speaker impedance
  • Multi-impedance flexibility (2/4/8 ohm and 25V/70.7V/100V) simplifies integration with distributed audio, paging and public-address systems
  • Compact 1RU half-rack design with 1W standby and convection/fan‑assist cooling saves rack space and reduces energy costs for 24/7 security deployments
  • Remote level control and priority mute GPI provide reliable control for paging, emergency notifications and surveillance monitoring
  • Robust switch-mode, global auto-sensing power supply delivers stable 400W RMS output and broad 20Hz–20kHz response for clear speech and music reproduction

Quick Specifications

Product Model
CLA402
Brand Name
AtlasIED
Product Name
400-W Two Channel Multi Impedance Power Share Amplifier
Product Type
Amplifier
View Full Technical Specifications

Explore the details

Product information

CLA402

Overview

Deliver reliable, zone‑accurate audio power where it matters most — security rooms, monitoring centers, schools and commercial paging systems. The AtlasIED CLA402 pro amplifier pairs industry-first Power Share technology with 400W of RMS power across two channels so integrators can precisely distribute available wattage to different zones regardless of load. Engineered as a multi-impedance amplifier, the CLA402 supports low-impedance 2/4/8 ohm loads as well as 25V/70.7V/100V distributed systems, and reproduces speech and music cleanly across a 20Hz–20kHz frequency range. Its switch‑mode, global auto-sensing power supply and convection/fan-assist cooling provide dependable operation in fluctuating power environments, while 1W standby improves energy efficiency for always-on security and surveillance installations. Compact 1RU half-rack form and remote level control make the CLA402 easy to deploy and manage in control rooms or networked AV racks. Ideal for paging, public address, monitoring and life-safety audio applications — contact us to specify the CLA402 for your next security or surveillance audio project.

Features

  • Patent‑pending Power Share technology lets you allocate up to 400W between zones for consistent, controllable coverage regardless of speaker impedance
  • Multi-impedance flexibility (2/4/8 ohm and 25V/70.7V/100V) simplifies integration with distributed audio, paging and public-address systems
  • Compact 1RU half-rack design with 1W standby and convection/fan‑assist cooling saves rack space and reduces energy costs for 24/7 security deployments
  • Remote level control and priority mute GPI provide reliable control for paging, emergency notifications and surveillance monitoring
  • Robust switch-mode, global auto-sensing power supply delivers stable 400W RMS output and broad 20Hz–20kHz response for clear speech and music reproduction
13 of 13 specifications
Technical specifications for AtlasIED CLA402 2-Channel Multi Impedance Power Share Amplifier, 400W
General Information
Brand Name AtlasIED
Product Name 400-W Two Channel Multi Impedance Power Share Amplifier
Product Type Amplifier
Manufacturer Part Number CLA402
Technical Information
Impedance 8 ohms
Audio
RMS Output Power 400W
Maximum Frequency Response 20 kHz
Minimum Frequency Response 20Hz
Physical Characteristics
Depth 13.5"
Width 8.75"
Height 1.75"
Weight 5.9lb
Warranty
Limited Warranty 36-Month
