AtlasIED CLA804 4-Channel Multi Impedance Power Share Amplifier, 1RU, 800W

SKU: CLA804 AtlasIED

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

Image of AT-CLA804

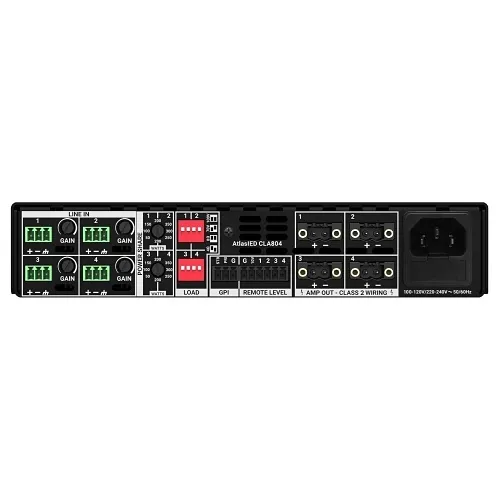

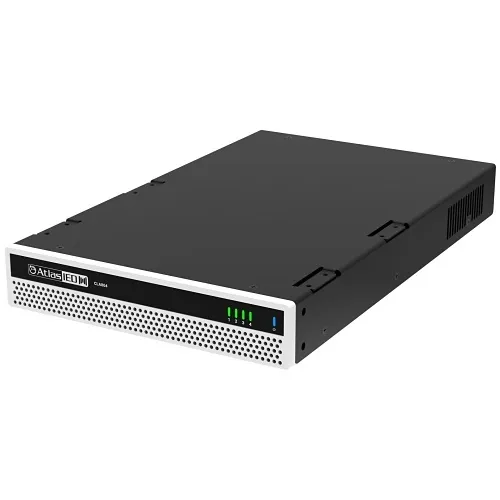

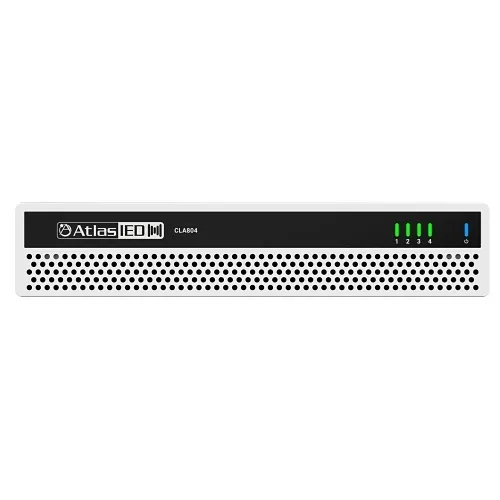

Product images for AtlasIED CLA804 4-Channel Multi Impedance Power Share Amplifier, 1RU, 800W. 4 image(s) available. Click on image to view full size.

Key Features

  • Patent-Pending Power Share: dynamically allocate power by channel to maintain consistent coverage across zones and simplify multi-zone paging and sound reinforcement.
  • Multi-impedance flexibility: configure each channel for 25V/70.7V/100V or low-impedance 2/4/8Ω loads to support distributed audio, PA and surveillance audio endpoints.
  • High power density in 1RU: 800W total output in a half-rack form factor saves rack space in equipment rooms and security closets.
  • Energy-efficient, convection-cooled design with fan-on-demand: lowers operating costs and keeps noise minimal in monitoring and control environments.
  • Intuitive setup and control: rear-panel switches and remote level control speed installation and simplify integration with security, surveillance and building monitoring systems.

Quick Specifications

Product Model
CLA804
Brand Name
AtlasIED
Product Name
800-W Four Channel Multi Impedance Power Share Amplifier
Product Type
Power Share Amplifier
View Full Technical Specifications

Explore the details

Product information

CLA804

Overview

Deliver clear, reliable audio where it matters most—paging, monitoring and distributed sound—using the AtlasIED CLA804 power share amplifier. This 4-channel, 1RU Pro Amplifier combines industry-first Power Share technology with versatile multi-impedance support so integrators can apply controllable power levels to different zones regardless of load. With 800W RMS total output and per-channel configuration for 25V/70.7V/100V and 2/4/8Ω loads, the CLA804 adapts to commercial PA, security paging and surveillance audio without extra transformers or amplifiers.

Designed for real-world deployments, the global auto-sensing switch-mode power supply and low-resistance direct-coupled thermal design maintain stable performance under dynamic loads. The amplifier is energy-efficient (<1W standby) and typically convection-cooled; whisper-quiet fans engage only as needed—ideal for control rooms and monitoring stations. Simple rear-panel switches and remote level control reduce setup time and streamline system maintenance. Backed by a 3-year limited warranty, the AtlasIED CLA804 is built for dependable operation in security, surveillance and facility-wide audio applications. Specify the CLA804 for flexible, high-efficiency amplification—contact your AtlasIED dealer to discuss deployment in your next project.

Features

  • Patent-Pending Power Share: dynamically allocate power by channel to maintain consistent coverage across zones and simplify multi-zone paging and sound reinforcement.
  • Multi-impedance flexibility: configure each channel for 25V/70.7V/100V or low-impedance 2/4/8Ω loads to support distributed audio, PA and surveillance audio endpoints.
  • High power density in 1RU: 800W total output in a half-rack form factor saves rack space in equipment rooms and security closets.
  • Energy-efficient, convection-cooled design with fan-on-demand: lowers operating costs and keeps noise minimal in monitoring and control environments.
  • Intuitive setup and control: rear-panel switches and remote level control speed installation and simplify integration with security, surveillance and building monitoring systems.
12 of 12 specifications
Technical specifications for AtlasIED CLA804 4-Channel Multi Impedance Power Share Amplifier, 1RU, 800W
General Information
Brand Name AtlasIED
Product Name 800-W Four Channel Multi Impedance Power Share Amplifier
Product Type Power Share Amplifier
Manufacturer Part Number CLA804
Technical Information
Impedance 8 ohms
Audio
RMS Output Power 800W
Maximum Frequency Response 20000 Hz
Minimum Frequency Response 20Hz
Physical Characteristics
Depth 13.5"
Width 8.75"
Height 1.75"
Warranty
Limited Warranty 3-Year
