SoundTube CM42-EZS-II-BK 4" Coaxial In-Ceiling Speaker, 4", Black
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 4
Key Features

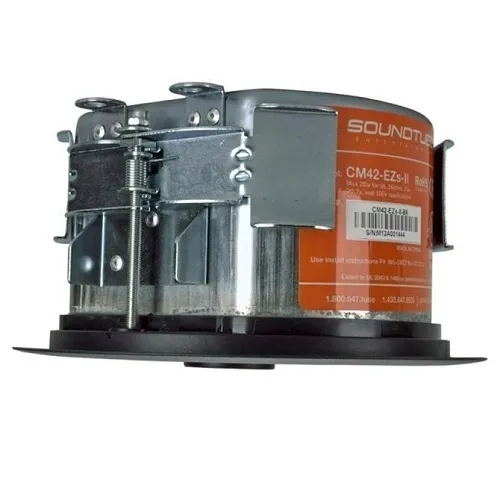

- Saves installation space with a SoundTube-specific shallow backcan (3.5" installed depth) ideal for tight plenum and retrofit applications

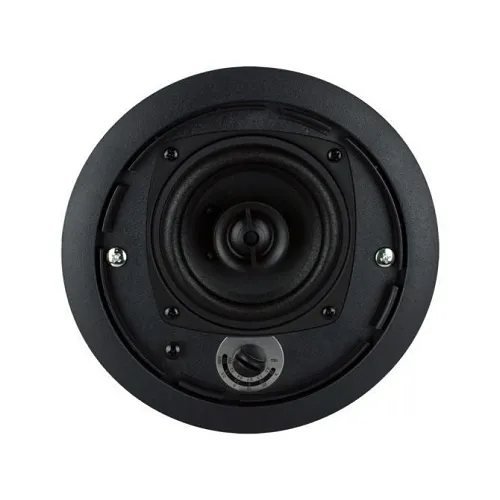

- Delivers clear voice intelligibility and consistent coverage using a 4" treated-fiber woofer and 0.75" silk dome tweeter (87.5 dB sensitivity)
- Flexible deployment with an easy-access six-position tap for 25/70.7/100V plus 16 Ω bypass to reduce amplifier count and system cost
- Compliance-ready for safety and security projects: EN54-24 listed and UL 1480/2043 approved for voice alarm and monitoring systems
- Durable, professional finish with painted steel grille and included tile bridge, conduit clamp and paint mask for fast, code-compliant installs
Quick Specifications
- Product Model
- CM42-EZS-II-BK
- Brand Name
- SoundTube
- Manufacturer Part Number
- CM42-EZS-II-BK
Explore the details
Product information
CM42-EZS-II-BK
Overview
Optimize background music, paging and security monitoring in venues with limited plenum depth using the SoundTube CM42-EZS-II-BK 4" Coaxial In-Ceiling Speaker. Designed as a professional pro speaker, this model combines a 4" treated-fiber woofer and 0.75" silk dome tweeter to deliver intelligible speech and full-range audio with 87.5 dB sensitivity—so announcements, alarms and paging carry clearly across retail, corporate, healthcare and surveillance environments. The proprietary shallow backcan installs with just a 3.5" depth, simplifying retrofits where ceiling voids are constrained. A six-position tap switch supports 25/70.7/100V systems plus a 16 ohm bypass for transformer-less amplifier savings, making it easy to design efficient multi-speaker systems. Built for long-term reliability, the speaker includes a painted steel grille, tile bridge, conduit clamp and is EN54-24 listed and UL-certified for voice alarm and security use. Choose the CM42-EZS-II-BK for discreet, code-compliant audio in paging, monitoring and surveillance installations—contact us to specify or order for your next project.
Features
- Saves installation space with a SoundTube-specific shallow backcan (3.5" installed depth) ideal for tight plenum and retrofit applications
- Delivers clear voice intelligibility and consistent coverage using a 4" treated-fiber woofer and 0.75" silk dome tweeter (87.5 dB sensitivity)
- Flexible deployment with an easy-access six-position tap for 25/70.7/100V plus 16 Ω bypass to reduce amplifier count and system cost
- Compliance-ready for safety and security projects: EN54-24 listed and UL 1480/2043 approved for voice alarm and monitoring systems
- Durable, professional finish with painted steel grille and included tile bridge, conduit clamp and paint mask for fast, code-compliant installs
| General Information | |
|---|---|
| Brand Name | SoundTube |
| Manufacturer Part Number | CM42-EZS-II-BK |
| Audio | |
| Maximum Frequency Response | 22 kHz |
| Minimum Frequency Response | 125 Hz |
| Physical Characteristics | |
| Color | Black |
| Miscellaneous | |
| Features | Engineered for applications with limited plenum space incorporating a SoundTube-specific shallow backcan with an installed depth of only 3.5", High-quality black or white painted finish. Custom colors available, Included accessories tile bridge, UL-listed 0.5" flex conduit clamp, paint shield, and two wire nuts, Incorporates a painted steel grille for lasting durability, Reduced amplification costs with maximum efficiency including 87.5 dB sensitivity and 16 ohms impedance |
| Package Contents | Conduit Clamp, Cover Plate, Grille, Paint Mask |
| Environmentally Friendly | Yes |
| Environmental Certification | CE, RoHS, UL |
