SoundTube CM42-EZS-II-WH 2-Way In-Ceiling Speaker with Short Can, 4", White
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 5
Key Features

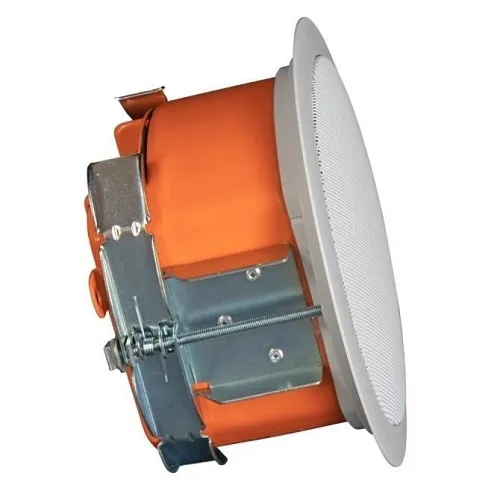

- Installs in tight plenum spaces with a SoundTube shallow backcan (installed depth just 3.5 inches) — ideal for retrofit and limited-ceiling-void projects
- Delivers clear voice intelligibility for paging, AV and security announcements with a 4-inch treated fiber woofer and 0.75-inch silk dome tweeter (125 Hz–22 kHz)
- Six-position tap switch (25/70.7/100 V) plus 16 ohm bypass simplifies ordering and lets you run multiples on standard amplifiers to reduce system cost
- High efficiency (87.5 dB sensitivity) and 16 ohm option lower amplification requirements and total installation expense
- Compliance-ready and durable: EN54-24 listed, UL 1480 and UL 2043 approved, ceramic plenum-rated terminal with thermal fuse and painted steel grille for reliable long-term operation
Quick Specifications
- Product Model
- CM42-EZS-II-WH
- Brand Name
- SoundTube
- Manufacturer Part Number
- CM42-EZS-II-WH
Explore the details
Product information
CM42-EZS-II-WH
Overview
Built for locations where ceiling depth is limited, the SoundTube CM42-EZS-II-WH 2-way in-ceiling speaker delivers reliable voice paging and background music without sacrificing performance. The shallow SoundTube backcan installs in just 3.5 inches of plenum space, making this pro speaker a go-to solution for retrofit, retail, hospitality and security installations where space and code compliance matter.
Audio is driven by a 4-inch treated fiber woofer and a 0.75-inch silk dome tweeter, producing clear speech intelligibility across a 125 Hz–22 kHz frequency range. An easy-access six-position tap switch (25/70.7/100 V) plus a 16 ohm transformer bypass lets integrators mix and match system topologies while reducing amplifier count and cost. With 87.5 dB sensitivity and robust plenum-rated inputs (accepts up to 10 AWG), the CM42 is also suitable for monitored voice alarm and security paging systems and meets EN54-24 requirements.
Specify the CM42-EZS-II-WH for professional AV, monitoring, surveillance, or security paging applications where compact installation, regulatory compliance, and clear voice reproduction are essential.
Features
- Installs in tight plenum spaces with a SoundTube shallow backcan (installed depth just 3.5 inches) — ideal for retrofit and limited-ceiling-void projects
- Delivers clear voice intelligibility for paging, AV and security announcements with a 4-inch treated fiber woofer and 0.75-inch silk dome tweeter (125 Hz–22 kHz)
- Six-position tap switch (25/70.7/100 V) plus 16 ohm bypass simplifies ordering and lets you run multiples on standard amplifiers to reduce system cost
- High efficiency (87.5 dB sensitivity) and 16 ohm option lower amplification requirements and total installation expense

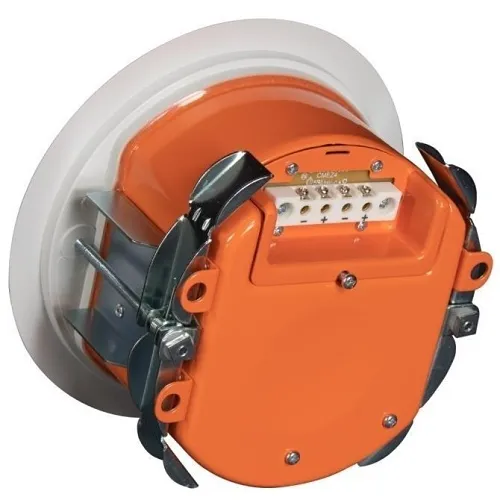

- Compliance-ready and durable: EN54-24 listed, UL 1480 and UL 2043 approved, ceramic plenum-rated terminal with thermal fuse and painted steel grille for reliable long-term operation
| General Information | |
|---|---|
| Brand Name | SoundTube |
| Manufacturer Part Number | CM42-EZS-II-WH |
| Audio | |
| Maximum Frequency Response | 22.0kHz |
| Minimum Frequency Response | 125.0000Hz |
| Physical Characteristics | |
| Color | White |
| Miscellaneous | |
| Features | Engineered for applications with limited plenum space incorporating a SoundTube-specific shallow backcan with an installed depth of only 3.5", High-quality black or white painted finish. Custom colors available, Included accessories tile bridge, UL-listed 0.5" flex conduit clamp, paint shield, and two wire nuts, Incorporates a painted steel grille for lasting durability, Reduced amplification costs with maximum efficiency including 87.5 dB sensitivity and 16 ohms impedance |
| Package Contents | Conduit Clamp, Cover Plate, Grille, Paint Mask |
| Environmentally Friendly | Yes |
| Environmental Certification | CE, RoHS, UL |
