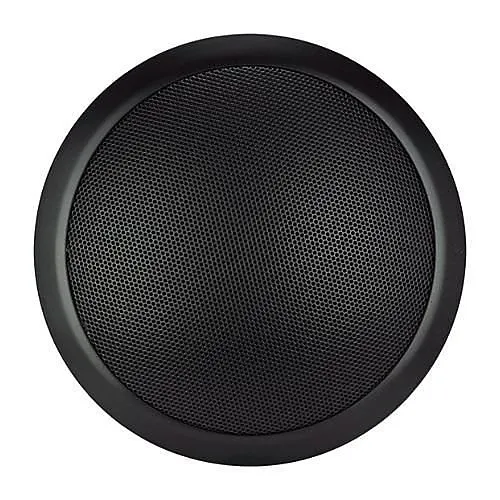

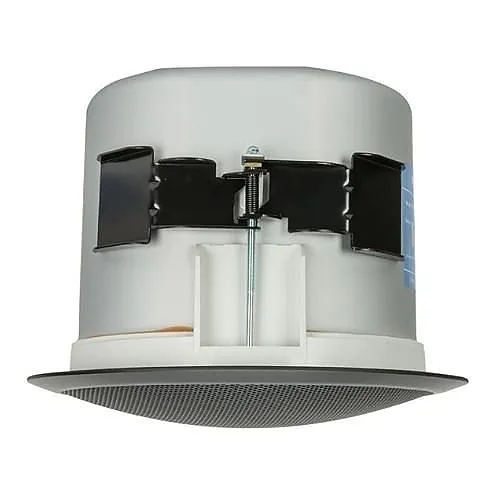

SoundTube CM500I-BK BroadBeam 5.25" in Ceiling Speaker with 1" Convex Titanium Tweeter, Black
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 5
Key Features
- Delivers consistent, intelligible audio across ceiling zones using patented BroadBeam waveguide—improves speech clarity for paging, monitoring and security announcements
- High output with 75W RMS and 87 dB sensitivity reduces amplifier needs and lowers total system cost in large or distributed audio systems
- 5.25in polypropylene woofer and 1in convex titanium tweeter with FerroFluid cooling provide balanced frequency response (55 Hz–22 kHz) for music, voice and alarms
- Rapid blind-mount installation, tool-free magnetic grille and integrated safety cable speed installs and maintenance in commercial and surveillance environments
- Multi-tap transformer (25/70.7/100V) plus transformer bypass gives flexible deployment across distributed audio, paging and security systems
Quick Specifications
- Product Model
- CM500i
- Brand Name
- SoundTube
- Product Name
- CM500i Speaker
- Product Type
- Speaker
Frequently Bought Together
SoundTube CM500I-BK BroadBeam 5.25" in Ceiling Speaker with 1" Convex Titanium Tweeter, Black
$318.89
2 items selected
Total: $339.11
Explore the details
Product information
CM500I-BK
Overview
For commercial audio, paging and security installations that demand clear, reliable coverage, the SoundTube CM500I-BK BroadBeam 5.25in in-ceiling speaker delivers edge-to-edge intelligibility and simplified installation. This pro speaker pairs a 5.25in polypropylene woofer with a 1in convex titanium tweeter (with FerroFluid cooling) on a cast-aluminum baffle for consistent voice reproduction and extended frequency response from 55 Hz to 22 kHz. Rated at 75W RMS with an average sensitivity of 86.5–87 dB, the CM500I-BK provides high output while minimizing amplifier requirements—saving on equipment and installation costs.
Designed for installers and integrators, the CM500I-BK features a rapid blind-mount fixed-wing mechanism that fits a variety of ceiling thicknesses, a six-position tap switch for 25/70.7/100V systems, and a tool-free magnetic grille with integrated safety cable for quick service and painting. UL 1480 and UL 2043 approvals ensure compliance in many commercial, security and surveillance applications. Ideal for paging, background music, monitoring rooms and AV/security systems—specify the SoundTube CM500I-BK for dependable, high-performance ceiling audio. Contact your rep to order or specify for next-site deployments.
Features
- Delivers consistent, intelligible audio across ceiling zones using patented BroadBeam waveguide—improves speech clarity for paging, monitoring and security announcements
- High output with 75W RMS and 87 dB sensitivity reduces amplifier needs and lowers total system cost in large or distributed audio systems
- 5.25in polypropylene woofer and 1in convex titanium tweeter with FerroFluid cooling provide balanced frequency response (55 Hz–22 kHz) for music, voice and alarms
- Rapid blind-mount installation, tool-free magnetic grille and integrated safety cable speed installs and maintenance in commercial and surveillance environments
- Multi-tap transformer (25/70.7/100V) plus transformer bypass gives flexible deployment across distributed audio, paging and security systems
| General Information | |
|---|---|
| Brand Name | SoundTube |
| Manufacturer | SoundTube |
| Product Name | CM500i Speaker |
| Product Type | Speaker |
| Product Model | CM500i |
| Product Series | CMi |
| Manufacturer Part Number | CM500I-BK |
| Technical Information | |
| Material | PP |
| Impedance | 8 ohms |
| Sensitivity | 87dB |
| Audio | |
| RMS Output Power | 75W |
| Maximum Frequency Response | 22 kHz |
| Minimum Frequency Response | 55Hz |
| Certifications | |
| TAA Compliant | No |
| Environmental Conditions | |
| Sound Emission | 5 dB |
| Physical Characteristics | |
| Size | 5.25" |
| Color | Black |
| Height | 7.8" |
| Enclosure Type | Ported |
| Product Information | |
| Diameter | 8.6" |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Country of Origin | CN |
| Environmentally Friendly | Yes |
