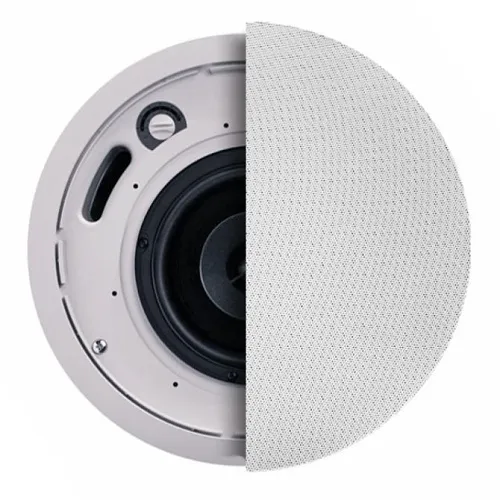

SoundTube CM52-BGM-II-WH 5.25" In-Ceiling Speaker with Seamless Magnetic White Grille
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 4
Key Features
- Consistent, intelligible paging and background music across large spaces thanks to BroadBeam Ring mid-range clarity and a 0.75" silk dome tweeter
- Simplifies system design and lowers amplifier costs with a six-position 25/70.7/100V tap switch and high 83.5 dB efficiency
- Discreet, durable installation with a flangeless magnetic white grille that blends into ceilings and resists damage
- Deeper, musical low end from a tuned port that extends response down to 56 Hz for fuller voice and music reproduction
- Code-ready for commercial projects: UL 1480 and 2043 listings plus included tile bridge and UL conduit clamp for fast installation
Quick Specifications
- Product Model
- CM52-BGM-II-WH
- Brand Name
- SoundTube
- Manufacturer Part Number
- CM52-BGM-II-WH
Explore the details
Product information
CM52-BGM-II-WH
Overview
Deliver clear, reliable background music and paging for commercial and security environments with the SoundTube CM52-BGM-II-WH 5.25" in-ceiling pro speaker. Engineered for professional AV, paging and monitoring applications, this in-ceiling speaker combines a 5.25" polypropylene woofer and 0.75" silk dome tweeter with BroadBeam Ring technology to provide even off-axis coverage and intelligible voice reproduction—critical for retail, hospitality, office paging and surveillance monitoring rooms. The integrated six-position transformer supports 25/70.7/100V systems to simplify wiring and inventory, while an efficient 83.5 dB sensitivity reduces amplifier requirements. A tuned port extends bass to 56 Hz for more musical playback, and the flangeless magnetic white grille offers a seamless aesthetic that resists wear. UL 1480 and 2043 listings ensure the CM52-BGM-II-WH meets commercial safety and plenum requirements, and included accessories (tile bridge, conduit clamp, paint mask) speed installation. Choose this SoundTube pro speaker when you need durable, code-compliant audio with clear paging and dependable background music—contact sales or add to cart to spec for your next security, surveillance or AV deployment.
Features
- Consistent, intelligible paging and background music across large spaces thanks to BroadBeam Ring mid-range clarity and a 0.75" silk dome tweeter
- Simplifies system design and lowers amplifier costs with a six-position 25/70.7/100V tap switch and high 83.5 dB efficiency
- Discreet, durable installation with a flangeless magnetic white grille that blends into ceilings and resists damage
- Deeper, musical low end from a tuned port that extends response down to 56 Hz for fuller voice and music reproduction
- Code-ready for commercial projects: UL 1480 and 2043 listings plus included tile bridge and UL conduit clamp for fast installation
| General Information | |
|---|---|
| Brand Name | SoundTube |
| Manufacturer Part Number | CM52-BGM-II-WH |
| Audio | |
| Maximum Frequency Response | 22 kHz |
| Minimum Frequency Response | 56Hz |
| Physical Characteristics | |
| Color | White |
| Miscellaneous | |
| Features | BroadBeam Ring technology for mid-range clarity and ultra wide off axis performance, High-quality black or white painted finish, included accessories tile bridge, UL listed 0.5" conduit clamp, Reduced ampli cation costs and maximum efficiency of 83.5 dB sensitivity, 16 ohms impedance, Tuned port on baf e for improved bass response down to 56 Hz (±10 dB) |
| Package Contents | Conduit Clamp, Cover Plate, Grille, Paint Mask |
| Environmentally Friendly | Yes |
| Environmental Certification | CE, RoHS, UL |
