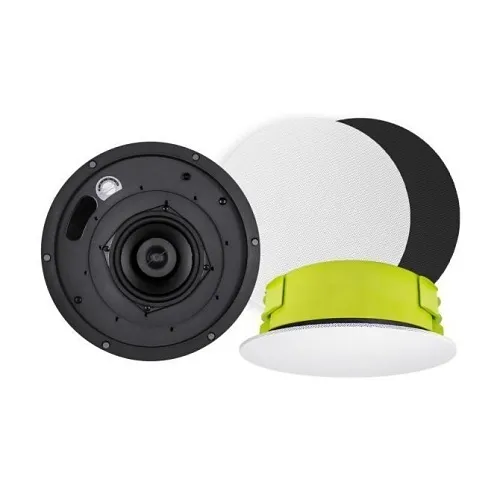

SoundTube CM52S-BGM-II-WH In-Ceiling Speaker with Magnetic Grill and Short Can, 5.25"
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 5
Key Features

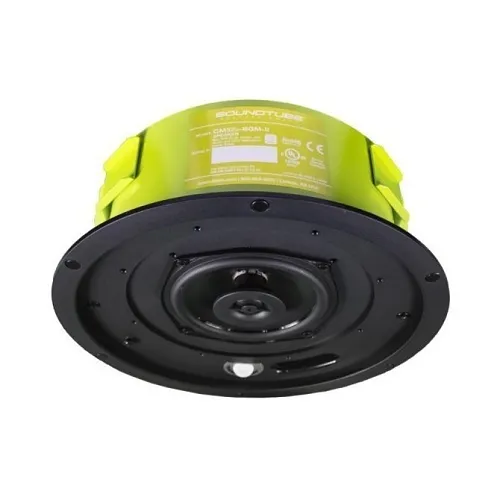

- Shallow backcan (3.5" installed depth) enables installation in tight plenum spaces, reducing retrofit labor and enabling flexible placement
- BroadBeam Ring delivers wide, even coverage so you need fewer speakers for consistent background music and paging across large areas
- High efficiency (84.5 dB) lowers amplifier requirements and operating cost for multi-zone commercial audio systems
- Six-position tap switch (25/70.7/100 V + bypass) simplifies integration with enterprise paging, security paging and distributed audio networks

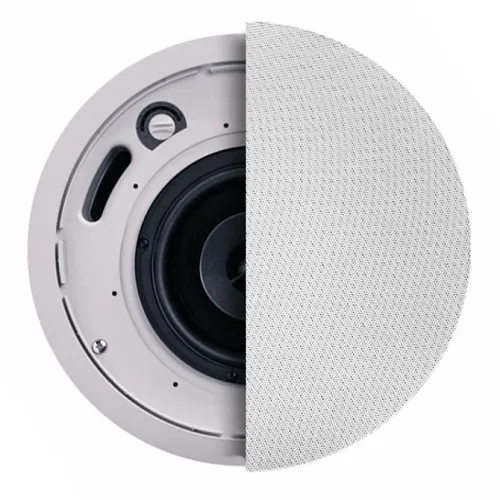

- Magnetic seamless steel grille provides a low-profile, tamper-resistant aesthetic that blends into ceilings and simplifies maintenance
- UL 1480 and 2043 listings ensure code-compliant performance for plenum installations in commercial, retail, education and security environments
Quick Specifications
- Product Model
- CM52S-BGM-II-WH
- Brand Name
- SoundTube
- Product Type
- Speaker
- Manufacturer Part Number
- CM52S-BGM-II-WH
Explore the details
Product information
CM52S-BGM-II-WH
Overview
Built to solve installation constraints without sacrificing audio quality, the SoundTube CM52S-BGM-II in-ceiling speaker delivers dependable background music (BGM), paging and security paging for commercial spaces with limited plenum depth. This pro speaker combines a 5.25" polypropylene woofer and 0.75" silk dome tweeter with BroadBeam Ring technology to produce clear mid-range and smooth off-axis coverage — ideal for retail, hospitality, education and monitoring/ surveillance support. The speaker’s shallow backcan installs with just 3.5" of depth, saving time and enabling ceiling placements where standard cans won’t fit. With 84.5 dB sensitivity and multiple 25/70.7/100‑volt transformer taps plus a transformer bypass, it integrates easily into distributed audio and security systems while minimizing amplifier count and cost. A tuned port extends bass response to 65 Hz for fuller background music, and the painted magnetic steel grille offers a seamless, tamper-resistant finish in white (also available in black). UL 1480 and 2043 listings provide peace of mind for code-compliant plenum installations. Specify the SoundTube CM52S-BGM-II for reliable, easy-to-install ceiling audio in paging, security, and monitoring applications — order or request a quote today.
Features
- Shallow backcan (3.5" installed depth) enables installation in tight plenum spaces, reducing retrofit labor and enabling flexible placement
- BroadBeam Ring delivers wide, even coverage so you need fewer speakers for consistent background music and paging across large areas
- High efficiency (84.5 dB) lowers amplifier requirements and operating cost for multi-zone commercial audio systems
- Six-position tap switch (25/70.7/100 V + bypass) simplifies integration with enterprise paging, security paging and distributed audio networks
- Magnetic seamless steel grille provides a low-profile, tamper-resistant aesthetic that blends into ceilings and simplifies maintenance
- UL 1480 and 2043 listings ensure code-compliant performance for plenum installations in commercial, retail, education and security environments
| General Information | |
|---|---|
| Brand Name | SoundTube |
| Product Type | Speaker |
| Manufacturer Part Number | CM52S-BGM-II-WH |
| Audio | |
| Maximum Frequency Response | 22 kHz |
| Minimum Frequency Response | 90 Hz |
| Physical Characteristics | |
| Color | White |
| Miscellaneous | |
| Features | 88.9 mm, BroadBeam Ring technology for mid-range clarity and ultra wide off axis performance, Engineered for applications with limited plenum space incorporating a SoundTube-specific shallow backcan with an installed depth of 3.5", included accessories tile bridge, UL listed 0.5" conduit clamp, Incorporates a steel plated and powder coated angeless magnetic grille for lasting durability and seamless aesthetic (White grille included, but also available in Black), Tuned port on bafe for added musicality and bass response down to 65 Hz (±10 dB) |
| Environmentally Friendly | Yes |
| Environmental Certification | CE, RoHS, UL |
