SoundTube CM600I-WH SoundTube 2-Way In Ceiling Speaker with BroadBeam Tweeter, 4", White

SKU: CM600I-WH SoundTube

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

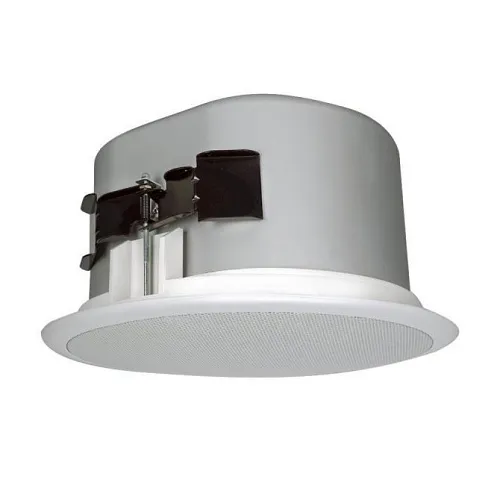

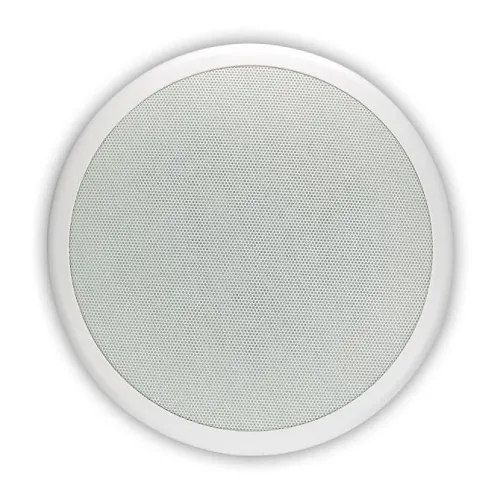

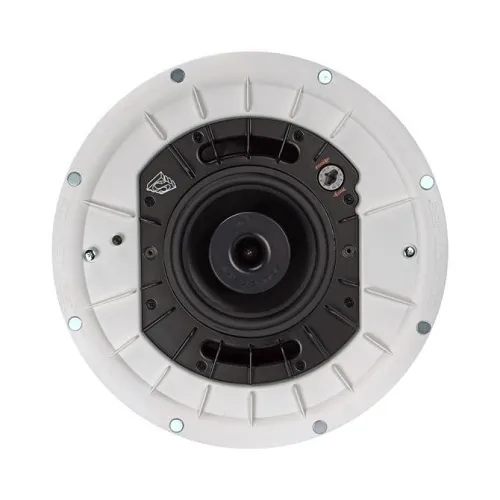

Image of 9W-CM600IWH
Product images for SoundTube CM600I-WH SoundTube 2-Way In Ceiling Speaker with BroadBeam Tweeter, 4", White. 4 image(s) available. Click on image to view full size.

Key Features

  • Consistent edge-to-edge speech intelligibility using BroadBeam dispersion for clear paging, background music, and voice evacuation
  • Flexible power options with selectable 25 / 70.7 / 100 V taps and transformer bypass for easy integration into distributed audio/security systems
  • High sensitivity (88 dB) and wide frequency response (52 Hz–22 kHz) reduce amplifier requirements while delivering full-range sound
  • Quick, tool-free installation: magnetic grille, tile bridge and blind-mount constant-tension wings speed deployment and simplify service
  • Durable, paintable steel grille and UL 1480/2043 approvals for plenum use provide long-term reliability in commercial and security environments

Quick Specifications

Product Model
CM600I-WH
Brand Name
SoundTube
Manufacturer Part Number
CM600I-WH
View Full Technical Specifications

Product Information Tabs

Overview

Designed for commercial AV, security audio and paging systems, the SoundTube CM600I-WH in-ceiling pro speaker delivers consistent, intelligible sound across large coverage areas. The patented BroadBeam waveguide provides uniform dispersion so announcements and background music remain clear from edge-to-edge — a critical benefit for monitoring, surveillance control rooms, lobbies and retail environments. With a wide frequency response of 52 Hz–22 kHz and an average sensitivity of 88 dB, the CM600I-WH offers full-range performance while reducing amplifier load and system cost. Installers will appreciate fast, blind-mount, constant-tension wings, a tool-free magnetic grille with safety cable, and included tile bridge, conduit plate and euroblock connector for quick integration. Multiple selectable transformer taps (25, 70.7, 100 V) plus a transformer bypass position make this speaker versatile for distributed audio and security paging systems. UL 1480 and UL 2043 listings ensure compliance for plenum and public-safety installations. Choose the SoundTube CM600I-WH for reliable, high-intelligibility audio in security, surveillance, monitoring and commercial audio applications — contact us to specify or order.

Features

  • Consistent edge-to-edge speech intelligibility using BroadBeam dispersion for clear paging, background music, and voice evacuation
  • Flexible power options with selectable 25 / 70.7 / 100 V taps and transformer bypass for easy integration into distributed audio/security systems
  • High sensitivity (88 dB) and wide frequency response (52 Hz–22 kHz) reduce amplifier requirements while delivering full-range sound
  • Quick, tool-free installation: magnetic grille, tile bridge and blind-mount constant-tension wings speed deployment and simplify service
  • Durable, paintable steel grille and UL 1480/2043 approvals for plenum use provide long-term reliability in commercial and security environments
General Information
Brand Name SoundTube
Manufacturer Part Number CM600I-WH
Audio
Maximum Frequency Response 22 kHz
Minimum Frequency Response 52 Hz
Physical Characteristics
Color White
Miscellaneous
Features Average sensitivity of 88 dB offers high-output capabilities and reduced amplification costs, High-quality black or white paint finish. Custompaint colors optiona, Included accessories tile bridge, Euroblock connector, conduit plate, and paint mask, Patented BroadBeam waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage (2-10 kHz, independently verified), Separate tool-free magnetic grille and bezel assembly with integrated safety cable for ease of install and in-field painting, Steel grille with protective powder-coated finish for lasting durability
Package Contents Conduit Plate, Euroblock, Grille, Paint Mask, Tile Bridge
Environmentally Friendly Yes
Environmental Certification CE, RoHS, UL
