SoundTube CM62-EZS-II-WH 6" 2-Way In-Ceiling Speaker with White Seamless Magnetic Grille with Short Can

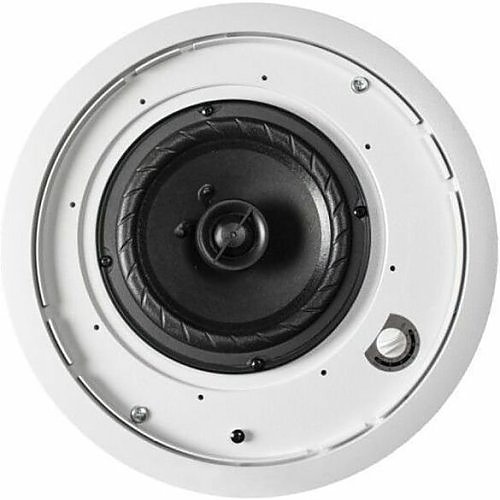

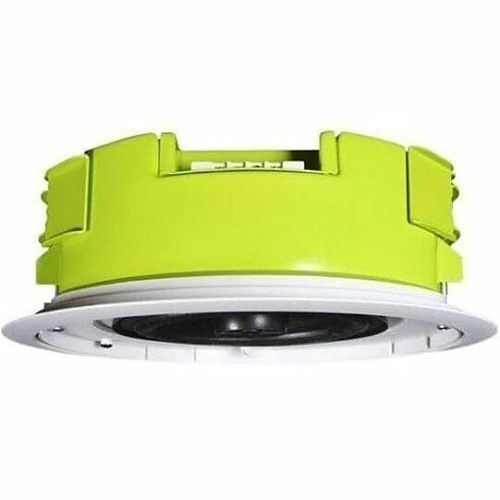

Image of 3
Key Features
- Delivers clear, intelligible voice and music for paging, security and monitoring applications, improving communication across facilities
- High-efficiency design (90+dB sensitivity, 50W RMS) reduces amplifier requirements and lowers overall system cost
- Shallow sealed backcan (3.5" installed depth) fits tight plenum spaces for easier retrofit and new-construction installs
- Magnetic seamless white grille provides a discreet, tamper-resistant finish that blends into ceilings for surveillance and retail environments
- Multi-tap 25/70.7/100V transformer with 16Ω bypass simplifies inventory and lets integrators deploy the speaker across paging and distributed audio systems
Quick Specifications
- Brand Name
- SoundTube
- Manufacturer
- SoundTube
- Product Name
- CM62-EZS-II Speaker
- Product Type
- Speaker
Product Information Tabs
Overview
Optimized for commercial paging, retail audio and security monitoring, the SoundTube CM62-EZs-II 6-inch in-ceiling speaker delivers reliable, high-efficiency performance where clear voice intelligibility matters most. This two-way, coaxial design pairs a 6.5" treated-fiber woofer and 1" silk dome tweeter to produce a wide 75Hz–22kHz frequency response and excellent clarity for announcements, background music and alarm/voice systems. With 90+dB sensitivity and 50W RMS handling, the CM62-EZs-II reduces amplifier load and operating costs while maintaining consistent coverage verified to 10 kHz. The shallow sealed backcan (3.5" installed depth) and blind-mount design make it ideal for tight plenum spaces and retrofit installations commonly found in schools, hospitals, retail and transportation hubs. A six-position tap switch supports 25/70.7/100V systems with a 16Ω bypass for flexibility across networked audio and distributed paging infrastructures. Finished with a white seamless magnetic grille that resists tampering, this SoundTube pro speaker integrates unobtrusively into surveillance and security environments. Specify the CM62-EZs-II for dependable voice reproduction in commercial and mission-critical monitoring applications — ideal for integrators and AV professionals.
Features
- Delivers clear, intelligible voice and music for paging, security and monitoring applications, improving communication across facilities
- High-efficiency design (90+dB sensitivity, 50W RMS) reduces amplifier requirements and lowers overall system cost
- Shallow sealed backcan (3.5" installed depth) fits tight plenum spaces for easier retrofit and new-construction installs
- Magnetic seamless white grille provides a discreet, tamper-resistant finish that blends into ceilings for surveillance and retail environments
- Multi-tap 25/70.7/100V transformer with 16Ω bypass simplifies inventory and lets integrators deploy the speaker across paging and distributed audio systems
| General Information | |
|---|---|
| Brand Name | SoundTube |
| Manufacturer | SoundTube |
| Product Name | CM62-EZS-II Speaker |
| Product Type | Speaker |
| Product Model | CM62-EZs-II |
| Manufacturer Part Number | CM62EZSIIWH |
| Technical Information | |
| Material | Fiber Cone |
| Impedance | 16 ohms |
| Sensitivity | 90dB |
| Crossover Type | 2-way |
| Application/Usage | Alarm, Voice |
| Audio | |
| RMS Output Power | 50W |
| Maximum Frequency Response | 22 kHz |
| Minimum Frequency Response | 75Hz |
| Certifications | |
| TAA Compliant | No |
| Environmental Conditions | |
| Sound Emission | 10 dB, 5 dB |
| Others | |
| Model Number Replaces | CM62-EZS-II-WH |
| Physical Characteristics | |
| Size | 6.50" |
| Color | White |
| Height | 0.3" |
| Enclosure Type | Sealed |
| Product Information | |
| Diameter | 11.8" |
| Mount Type | Blind Mount, Ceiling Mount, In-ceiling Mount |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Country of Origin | CN |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS, WEEE |
