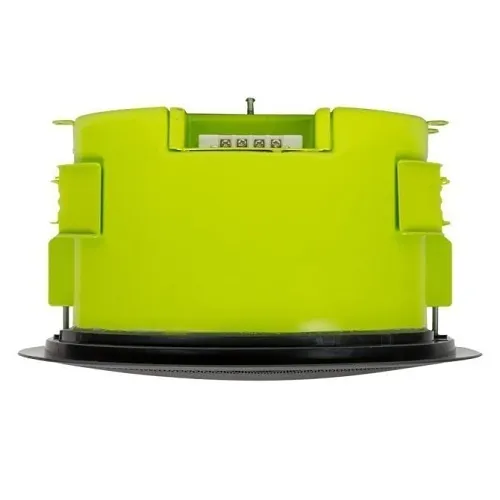

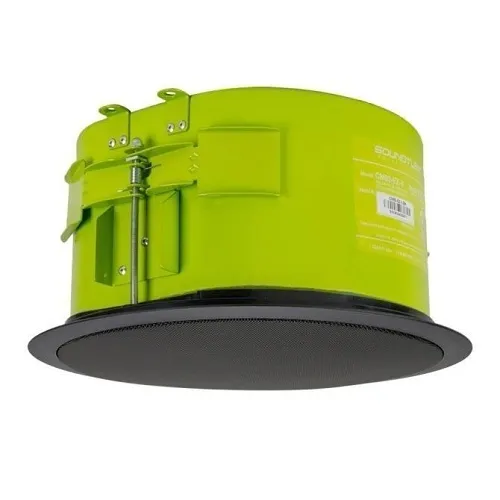

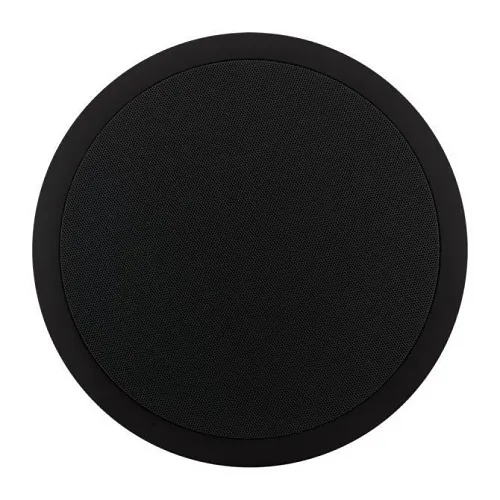

SoundTube CM82-EZ-II-BK 8" 2-Way In-Ceiling Speaker, Black
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 4
Key Features
- Simplifies installation and inventory: six-position tap switch (25/70.7/100V + 16Ω bypass) and included tile bridge speed up staging and installs
- Lowers system costs: 89 dB sensitivity and 16Ω option let you run multiples on a standard amplifier without transformers
- Clear, intelligible audio for speech and paging thanks to 8" polypropylene woofer and 1" silk-dome tweeter with 65 Hz–22 kHz response
- Reliable performance in safety-critical systems: sealed enclosure, thermal-fused ceramic terminal and compliance with EN60849/UL 1480 for voice alarm use
- Durable, attractive finish: black painted steel grille with rust inhibitor and optional custom colors for long-term commercial use
- Plenum-capable connections: accepts up to 10 AWG plenum-rated wire and ships with conduit plate, euroblock and paint mask for professional installs
Quick Specifications
- Product Model
- CM82-EZ-II-BK
- Brand Name
- SoundTube
- Manufacturer Part Number
- CM82-EZ-II-BK
Product Information Tabs
Overview
Optimize commercial paging and security audio with the SoundTube CM82-EZ-II-BK 8" 2-way in-ceiling speaker — engineered for clear voice intelligibility, easy installation and reliable operation in monitoring and voice-alarm systems. This SoundTube pro speaker pairs an 8" polypropylene woofer with a 1" silk-dome tweeter to deliver speech-focused clarity across a 65 Hz–22 kHz frequency range and 89 dB sensitivity, helping reduce amplifier requirements and overall system cost. The six-position tap switch supports 25/70.7/100V plus a 16-ohm transformer bypass so you can deploy flexible configurations for paging, background music or security/surveillance monitoring. Built-in features for integrators include a sealed enclosure, ceramic terminal with thermal fuse, plenum-rated wire acceptance and a rust-inhibitor steel grille for long-lasting performance in commercial, retail and institutional environments. Certified to UL 1480, UL 2043 and EN60849 where applicable, the CM82-EZ-II-BK is ideal for voice alarm and public-address applications. Specify this SoundTube in-ceiling speaker for dependable, cost-effective audio in mission-critical spaces — contact us to configure for your next paging or security audio project.
Features
- Simplifies installation and inventory: six-position tap switch (25/70.7/100V + 16Ω bypass) and included tile bridge speed up staging and installs
- Lowers system costs: 89 dB sensitivity and 16Ω option let you run multiples on a standard amplifier without transformers
- Clear, intelligible audio for speech and paging thanks to 8" polypropylene woofer and 1" silk-dome tweeter with 65 Hz–22 kHz response
- Reliable performance in safety-critical systems: sealed enclosure, thermal-fused ceramic terminal and compliance with EN60849/UL 1480 for voice alarm use
- Durable, attractive finish: black painted steel grille with rust inhibitor and optional custom colors for long-term commercial use
- Plenum-capable connections: accepts up to 10 AWG plenum-rated wire and ships with conduit plate, euroblock and paint mask for professional installs
| General Information | |
|---|---|
| Brand Name | SoundTube |
| Manufacturer Part Number | CM82-EZ-II-BK |
| Audio | |
| Maximum Frequency Response | 22 kHz |
| Minimum Frequency Response | 65 Hz |
| Physical Characteristics | |
| Color | Black |
| Miscellaneous | |
| Features | High-quality black or white painted finish. Custom colors available, Included accessories tile bridge, UL-listed 0.5" flex conduit clamp, paint shield, and two wire nuts, Incorporates a painted steel grille with rust inhibitor for lasting durability, One 8" (203 mm) polypropylene woofer with butyl rubber surround and one 1" (25.4 mm) silk dome tweeter, Optional accessories color-coded (green) preconstruction bracket (AC-CMEZ-6/8-PCB), junction box (AC-CM-EZ-JBOX), Reduced amplification costs and maximum efficiency including 89 dB sensitivity and 16 ohms impedance and a sealed enclosure |
| Package Contents | Conduit Plate, Euroblock, Grille, Paint Mask |
| Environmentally Friendly | Yes |
| Environmental Certification | CE, RoHS, UL |
