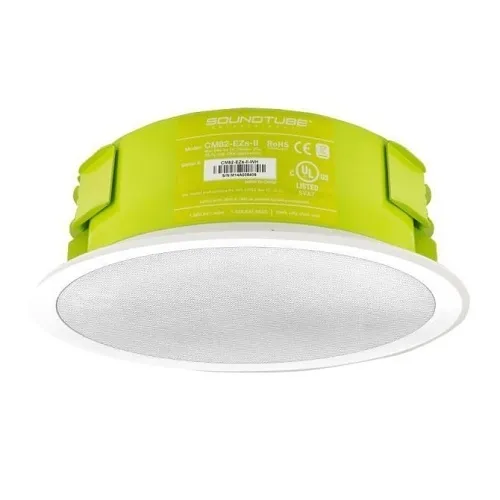

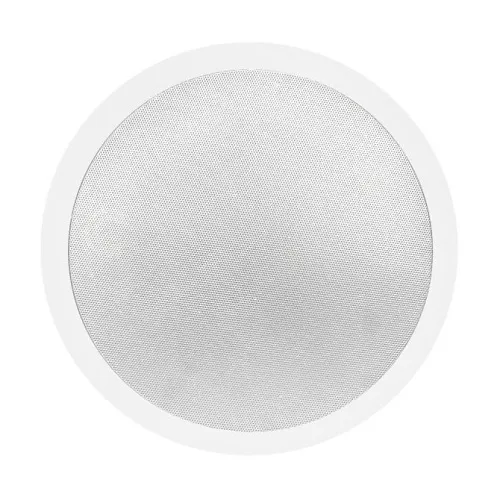

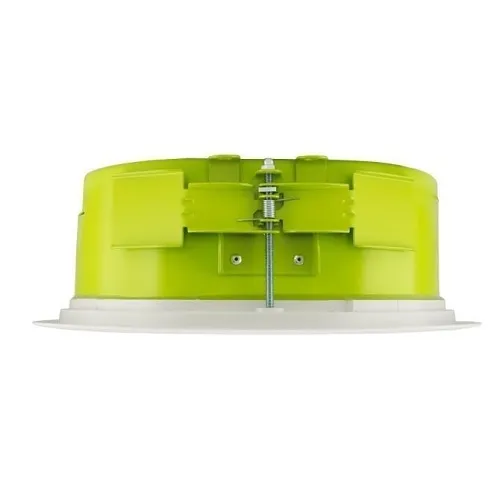

SoundTube CM82-EZS-II-WH 8" Short Can In-Ceiling Speaker, White
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 4
Key Features
- Space-saving shallow backcan (3.5 in installed depth) lets you fit high-performance audio in tight plenum ceilings for faster installs and reduced retrofit costs.
- Exceptional speech clarity and coverage with an 8" woofer and 1" silk-dome tweeter — ideal for paging, voice alarm and security announcements.
- Flexible power options (25/70.7/100V taps plus 16 Ω bypass) reduce amplifier count and system cost in multi-speaker installations.
- Rugged, paintable steel grille with rust inhibitor and plenum-rated ceramic input with thermal fuse ensures long-term reliability in commercial and security environments.
- Certified for voice alarm and safety compliance (UL 1480, UL 2043, CE, RoHS), making it suitable for regulated installations and monitoring applications.
Quick Specifications
- Product Model
- CM82-EZS-II-WH
- Brand Name
- SoundTube
- Manufacturer Part Number
- CM82-EZS-II-WH
Explore the details
Product information
CM82-EZS-II-WH
Overview
Designed for commercial and security environments where plenum space is limited, the SoundTube CM82-EZS-II-WH 8" short can in-ceiling speaker delivers clear, intelligible audio for paging, voice alarm and monitoring systems. The shallow SoundTube backcan installs in just 3.5 inches of depth, enabling quick retrofits and flexible placement without sacrificing performance. Inside, an 8" polypropylene woofer paired with a 1.0" silk dome tweeter provides broad, even coverage and crisp speech reproduction; the speaker achieves 88 dB sensitivity and supports 16 Ω operation for efficient amplifier use. Integrators benefit from the six-position tap switch for 25/70.7/100V systems and a transformer bypass for direct low-impedance wiring, simplifying inventory and system design. Built for durability in public and security-critical spaces, the unit includes a rust-inhibiting painted steel grille, plenum-rated ceramic inputs, thermal fuse protection, and approvals for UL and voice alarm regulations. Ideal for retail, transit, education, and surveillance installations where clear announcements and reliable monitoring matter. Contact sales to specify the CM82-EZS-II-WH for your next security or PA project.
Features
- Space-saving shallow backcan (3.5 in installed depth) lets you fit high-performance audio in tight plenum ceilings for faster installs and reduced retrofit costs.
- Exceptional speech clarity and coverage with an 8" woofer and 1" silk-dome tweeter — ideal for paging, voice alarm and security announcements.
- Flexible power options (25/70.7/100V taps plus 16 Ω bypass) reduce amplifier count and system cost in multi-speaker installations.
- Rugged, paintable steel grille with rust inhibitor and plenum-rated ceramic input with thermal fuse ensures long-term reliability in commercial and security environments.
- Certified for voice alarm and safety compliance (UL 1480, UL 2043, CE, RoHS), making it suitable for regulated installations and monitoring applications.
| General Information | |
|---|---|
| Brand Name | SoundTube |
| Manufacturer Part Number | CM82-EZS-II-WH |
| Audio | |
| Maximum Frequency Response | 22.0kHz |
| Minimum Frequency Response | 65.0000Hz |
| Physical Characteristics | |
| Color | White |
| Miscellaneous | |
| Features | Engineered for applications with limited plenum space incorporating a SoundTube-specific shallow backcan with an installed depth of only 3.5", High-quality black or white painted finish. Custom colors available, Incorporates a painted steel grille with rust inhibitor for lasting durability, One 8" (203 mm) polypropylene woofer with butyl rubber surround and one 1" (25.4 mm) silk dome tweeter, Reduced amplification costs with maximum efficiency including 88 dB sensitivity and 16 ohms impedance and a sealed enclosure |
| Package Contents | Conduit Plate, Euroblock, Grille, Paint Mask |
| Environmentally Friendly | Yes |
| Environmental Certification | CE, RoHS, UL |
