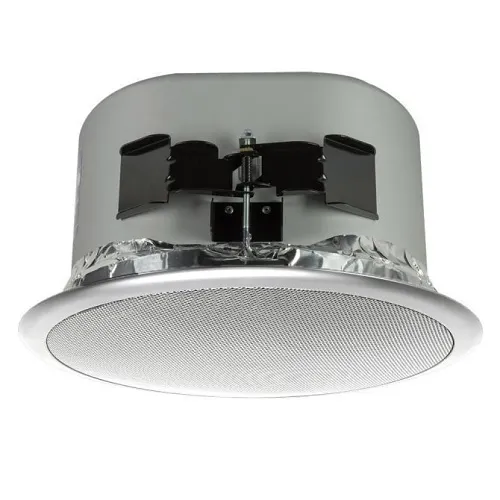

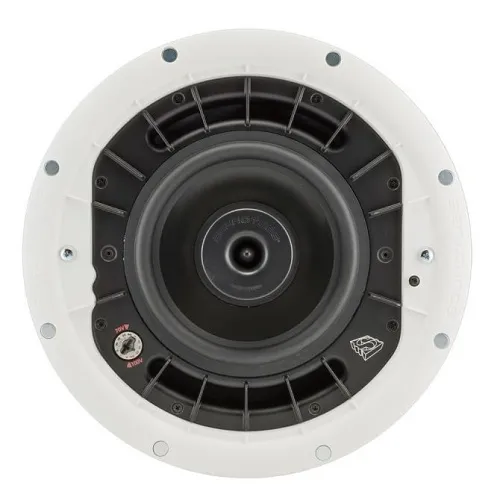

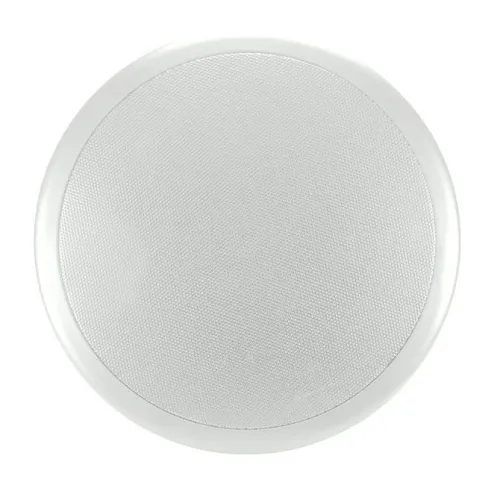

SoundTube CM890I-WH 8" Coaxial In-Ceiling Speaker, White
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 4
Key Features
- Consistent, edge-to-edge intelligibility that improves public address, paging and security announcements
- High-output design with a 66W transformer to lower amplifier requirements and support 25/70.7/100V systems
- Coaxial 8" treated-fiber woofer with 1" compression driver for wideband coverage (62 Hz–22 kHz) and 93 dB sensitivity
- Rapid blind-mount, constant-tension installation and tool-free magnetic grille simplify installs and field servicing
- UL 1480/2043 and RoHS/CE compliant for use in transit, retail, education and surveillance environments
Quick Specifications
- Product Model
- CM890I-WH
- Brand Name
- SoundTube
- Manufacturer Part Number
- CM890I-WH
Explore the details
Product information
CM890I-WH
Overview
Deliver clear, reliable audio for PA, security monitoring and surveillance applications with the SoundTube CM890I-WH 8" coaxial in-ceiling speaker. Engineered for pro audio and low-voltage integrators, this in-ceiling speaker provides consistent BroadBeam dispersion for intelligible announcements and even coverage across large open spaces. The coaxial configuration pairs an 8" treated-fiber woofer with a 1" compression driver to produce a wide frequency range (62 Hz–22 kHz) and an average 93 dB sensitivity, reducing amplification requirements while delivering up to 114 dB SPL for demanding sound reinforcement needs. A user-friendly six-position tap switch supports 25/70.7/100V installations with a 66W transformer and transformer bypass, making it ideal for distributed PA, retail, transportation hubs, and security-critical zones. Installation is fast thanks to the blind-mount fixed-wing system and a tool-free magnetic grille with integrated safety cable for easy servicing and painting. UL and RoHS certified, the CM890I-WH meets commercial safety and environmental standards. Specify the SoundTube CM890I-WH for dependable intelligibility in monitoring, surveillance and public address systems — contact sales to design or order your system.
Features
- Consistent, edge-to-edge intelligibility that improves public address, paging and security announcements
- High-output design with a 66W transformer to lower amplifier requirements and support 25/70.7/100V systems
- Coaxial 8" treated-fiber woofer with 1" compression driver for wideband coverage (62 Hz–22 kHz) and 93 dB sensitivity
- Rapid blind-mount, constant-tension installation and tool-free magnetic grille simplify installs and field servicing
- UL 1480/2043 and RoHS/CE compliant for use in transit, retail, education and surveillance environments
| General Information | |
|---|---|
| Brand Name | SoundTube |
| Manufacturer Part Number | CM890I-WH |
| Audio | |
| Maximum Frequency Response | 22 kHz |
| Minimum Frequency Response | 62 Hz |
| Physical Characteristics | |
| Color | White |
| Miscellaneous | |
| Features | A 66 W transformer and high output (114 dB) for the sound reinforcement and PA markets, Average sensitivity of 93 dB offers high-output capabilities and reduced amplification costs, High-quality black or white paint finish.Custom paint colors optiona, Patented BroadBeamHP waveguide technology delivers a consistent BroadBeam dispersion pattern for maximum intelligibility and edge-toedge coverage (2-8 kHz, independently verified), Separate tool-free magnetic grille and bezel assembly with integrated safety cable for ease of install and in-field painting |
| Package Contents | Conduit Plate, Euroblock, Grille, Paint Mask, Tile Bridge |
| Environmentally Friendly | Yes |
| Environmental Certification | CE, RoHS, UL |
