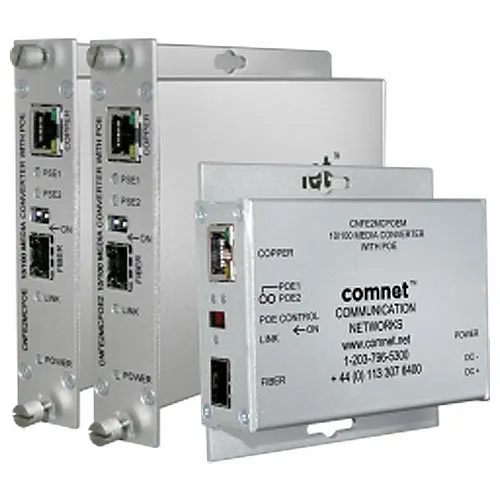

ComNet CNFE2MCPOE 2-Port Ethernet Media Converter with PoE, 10/100Mbps
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Key Features
- Extend PoE-powered devices over fiber to secure, long-distance links for surveillance and monitoring deployments
- Flexible SFP support lets you choose fiber type and distance without replacing the converter
- Delivers reliable 10/100 Mbps Fast Ethernet connectivity with auto-negotiation for plug-and-play operation
- Built-in IEEE 802.3at PSE provides up to 30W to power cameras and remote network devices, reducing separate power runs
- Rugged, environmentally hardened design with lifetime warranty ensures continuous operation in mission-critical security networks
Quick Specifications
- Product Model
- CNFE2MCPOE
- Brand Name
- ComNet
- Product Name
- ComFit 2 Port 10/100 Mbps Ethernet Media Converter with POE
- Product Type
- Transceiver/Media Converter
Product Information Tabs
Overview
Get dependable, long-distance Ethernet and PoE for security and surveillance systems with the ComNet CNFE2MCPOE 2-port Ethernet media converter. This ComNet media converter converts a single 10/100 Mbps copper Ethernet link to fiber using user-selectable SFP modules, enabling flexible multimode or singlemode fiber choices to meet distance and connector requirements. As IEEE 802.3at Power Sourcing Equipment (PSE), it delivers up to 30W @ 48VDC to power IP cameras, access points, and other remote devices — eliminating the need for local power at each endpoint. Auto-negotiation and Fast Ethernet support streamline integration into existing networks, while rugged, environmentally hardened construction keeps monitoring and security links online in harsh conditions. LED status indicators simplify installation and troubleshooting in the field. Ideal for CCTV, remote monitoring, and enterprise security networks that require reliable fiber links with PoE capability. Deploy the CNFE2MCPOE to extend, protect, and power your surveillance and monitoring infrastructure — order today to upgrade your network resiliency.
Features
- Extend PoE-powered devices over fiber to secure, long-distance links for surveillance and monitoring deployments
- Flexible SFP support lets you choose fiber type and distance without replacing the converter
- Delivers reliable 10/100 Mbps Fast Ethernet connectivity with auto-negotiation for plug-and-play operation
- Built-in IEEE 802.3at PSE provides up to 30W to power cameras and remote network devices, reducing separate power runs
- Rugged, environmentally hardened design with lifetime warranty ensures continuous operation in mission-critical security networks
| General Information | |
|---|---|
| Brand Name | ComNet |
| Manufacturer | ACRE |
| Product Name | ComFit 2 Port 10/100 Mbps Ethernet Media Converter with POE |
| Product Type | Transceiver/Media Converter |
| Product Model | CNFE2MCPOE |
| Maximum Distance | 49.71 Mile |
| Manufacturer Part Number | CNFE2MCPOE |
| Technical Information | |
| Fiber Optic Mode | Multimode |
| Media Type Supported | Optical Fiber, Twisted Pair |
| I/O Expansions | |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Number of Total Expansion Slots | 1 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of Ports | 1 |
| Number of PoE (RJ-45) Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Network Technology | 10/100Base-TX, 100Base-FX |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Physical Characteristics | |
| Depth | 1.1" |
| Width | 5.3" |
| Height | 6.1" |
| Power Description | |
| Power Source | Power Supply |
| Plug/Connector Type | Terminal Block |
| Product Information | |
| Mount Type | Surface Mount |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Country of Origin | US |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS, WEEE |
