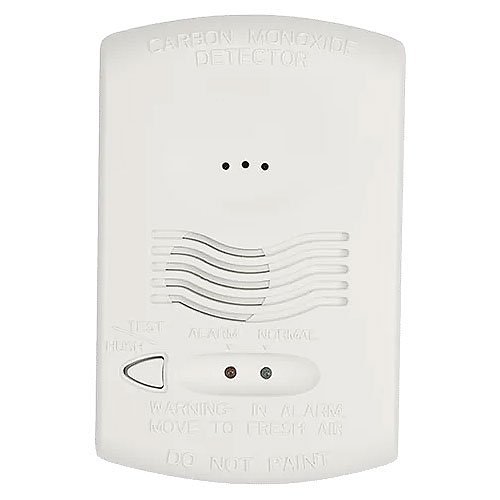

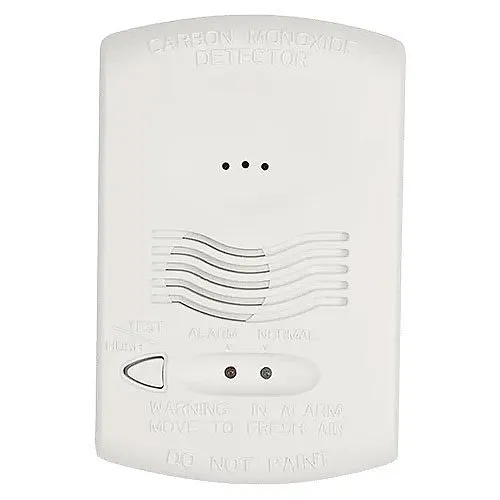

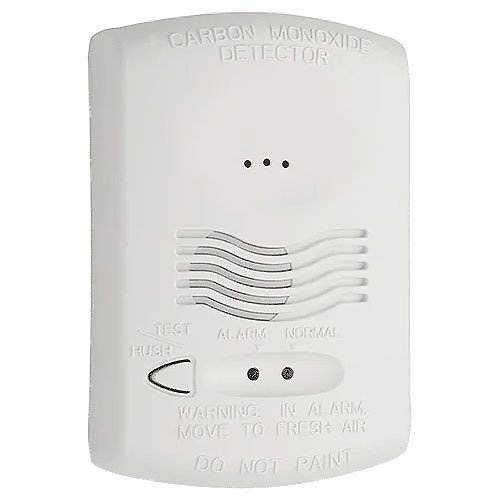

System Sensor CO1224T 12/24V, 6-Wire System-Monitored Carbon Monoxide Detector with RealTest Technology
Image of 3
Key Features
- Rapid, verifiable testing with RealTest® so technicians can confirm CO entry and compliance with NFPA 720 without disrupting occupants
- Electrochemical sensing for accurate, low-false-alarm CO detection that protects residents and reduces nuisance service calls
- System-monitored design with a trouble/end-of-life relay and low current draw to simplify integration with security and fire panels
- 12/24 VDC compatibility and SEMS-type terminals for faster wiring, fewer power upgrades, and reliable supervised connections
- 10-year end-of-life timer for long-term reliability and predictable maintenance planning
Quick Specifications
- Product Model
- CO1224T
- Brand Name
- System Sensor
- Product Name
- CO1224T Gas Leak Sensor
- Product Type
- Gas Leak Sensor
Frequently Bought Together
System Sensor CO1224T 12/24V, 6-Wire System-Monitored Carbon Monoxide Detector with RealTest Technology
$91.54
4 items selected
Total: $517.32
Explore the details
Product information
CO1224T
Overview
Protect occupants and simplify system commissioning with the System Sensor CO1224T carbon monoxide detector — a system‑monitored CO solution built for security and life‑safety installations. The CO1224T pairs an accurate electrochemical sensing cell with RealTest® functional testing so technicians can confirm proper gas entry and meet NFPA 720 requirements quickly on site. Designed for integrators, it operates on 12/24 VDC and draws minimal current, allowing more devices per panel and reducing the need for extra power supplies. Built-in supervised wiring with SEMS terminals and a code‑required trouble/end‑of‑life relay provides clear status to alarm control panels and central monitoring stations, improving response and lowering false alarm service calls. UL 2075 listing and a 10‑year end‑of‑life timer make this detector a durable, code‑aware choice for residential and monitored commercial projects. Ideal for security systems, monitored fire alarm networks, and multi‑unit housing, the CO1224T delivers dependable CO detection and streamlined installation — add it to your next security or monitoring deployment for reliable, long‑term protection.
Features
- Rapid, verifiable testing with RealTest® so technicians can confirm CO entry and compliance with NFPA 720 without disrupting occupants
- Electrochemical sensing for accurate, low-false-alarm CO detection that protects residents and reduces nuisance service calls
- System-monitored design with a trouble/end-of-life relay and low current draw to simplify integration with security and fire panels
- 12/24 VDC compatibility and SEMS-type terminals for faster wiring, fewer power upgrades, and reliable supervised connections
- 10-year end-of-life timer for long-term reliability and predictable maintenance planning
| General Information | |
|---|---|
| Brand Name | System Sensor |
| Manufacturer | Honeywell International, Inc |
| Product Name | CO1224T Gas Leak Sensor |
| Product Type | Gas Leak Sensor |
| Product Model | CO1224T |
| Product Series | CO1224 |
| Application/Usage | Residential |
| Country of Origin | MX |
| Manufacturer Part Number | CO1224T |
| Technical Information | |
| Sensor Type | Electrochemical |
| Detectable Gas | Carbon Monoxide |
| Detectable Medium | Smoke |
| Sensing Technology | Electrochemical |
| Connectivity Technology | Wired |
| Certifications | |
| Certifications | UL2075 |
| Certifications & Standards | UL Listed |
| Controls/Indicators | |
| Status Indicators | Yes |
| Physical Characteristics | |
| Color | White |
| Depth | 5.1" |
| Width | 3.3" |
| Height | 1.3" |
| Weight | 7.00oz |
| Form Factor | Ceiling Mount |
| Power Description | |
| Power Source | DC Power |
| Input Voltage | 24V DC |
| Product Information | |
| Length | 5.1" |
| Mount Type | Ceiling Mount |
| Warranty | |
| Limited Warranty | 3-Year |
