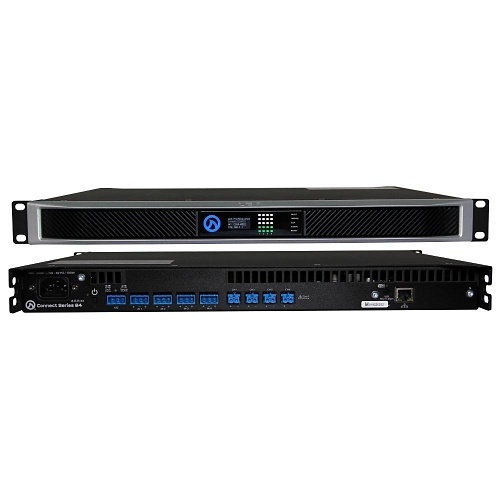

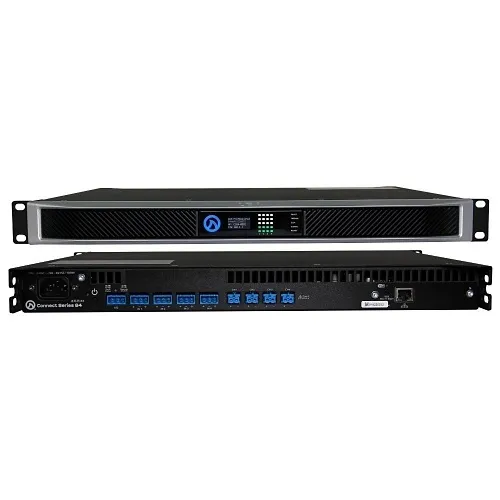

LEA Professional CONNECT 164 Network Connect 19" 4-Channel Amplifier, 160W per Channel
Image of 2
Key Features
- Remote network control and monitoring via built-in WiFi or Ethernet for easy management of distributed AV and security systems
- 160W per channel with per-channel LoZ/HiZ (70V/100V) selection — simplifies deployment for paging, background music and paging for surveillance sites
- Powerful 96 kHz DSP with crossovers, 8 parametric EQs and speaker limiters to protect speakers and tailor coverage for each zone
- Smart Power Bridge to double a channel's output when needed without sacrificing rack space or an entire amplifier
- Energy-efficient Class D amplification and universal PSU for lower operating costs and consistent performance across 100–240VAC
- Rack-friendly 1U, 19-inch design with remote fault monitoring and a 6-year limited warranty for reliable long-term installations
Quick Specifications
- Product Model
- 164
- Brand Name
- LEA Professional
- Product Line
- Connect
- Product Name
- Connect 164 Amplifier
Explore the details
Product information
CONNECT 164
Overview
Deliver dependable, remotely managed audio for commercial AV, paging and security monitoring applications. The LEA Professional CONNECT 164 network-enabled 4-channel amplifier combines proven pro-amplifier performance with modern IoT convenience so integrators can deploy, control and monitor systems from anywhere. Each channel provides 160W RMS and selectable LoZ/HiZ output (70V/100V), letting you power low-impedance speakers or multi-zone constant-voltage lines without extra equipment. Built-in WiFi access point, venue WiFi support and Gigabit Ethernet enable onsite or cloud-based control; the 96 kHz DSP offers crossover filters, eight parametric EQs, user-configurable limiters and real-time load monitoring to optimize loudspeaker protection and intelligibility for voice evacuation, surveillance audio and background music. Class D efficiency and universal 100–240VAC operation reduce power draw and heat in rack installations. Ideal for retail, corporate offices, houses of worship, and security/surveillance paging systems, the CONNECT 164 delivers scalable, networked audio with pro-grade reliability — order or contact our sales team to spec this amplifier for your next project.
Features
- Remote network control and monitoring via built-in WiFi or Ethernet for easy management of distributed AV and security systems
- 160W per channel with per-channel LoZ/HiZ (70V/100V) selection — simplifies deployment for paging, background music and paging for surveillance sites
- Powerful 96 kHz DSP with crossovers, 8 parametric EQs and speaker limiters to protect speakers and tailor coverage for each zone
- Smart Power Bridge to double a channel's output when needed without sacrificing rack space or an entire amplifier
- Energy-efficient Class D amplification and universal PSU for lower operating costs and consistent performance across 100–240VAC
- Rack-friendly 1U, 19-inch design with remote fault monitoring and a 6-year limited warranty for reliable long-term installations
| General Information | |
|---|---|
| Brand Name | LEA Professional |
| Manufacturer | LEA Professional |
| Product Line | Connect |
| Product Name | Connect 164 Amplifier |
| Product Type | Amplifier |
| Product Model | 164 |
| Country of Origin | CR |
| Manufacturer Part Number | CONNECT 164 |
| Technical Information | |
| Impedance | 8Ohm |
| Audio Channels | 4 |
| Classification | D |
| Audio | |
| RMS Output Power | 160W |
| Maximum Frequency Response | 20kHz |
| Minimum Frequency Response | 20Hz |
| Total Harmonic Distortion (THD) | 0.1% – 0.5% |
| Certifications | |
| Energy Star | No |
| TAA Compliant | Yes |
| Energy & Performance | |
| Operating Power Consumption | 150W |
| Network & Communication | |
| Ethernet | Yes |
| Physical Characteristics | |
| Color | Black |
| Width | 19.00" |
| Height | 1.80" |
| Power Description | |
| Input Voltage | 120V AC, 230V AC |
| Product Information | |
| Length | 14.30" |
| Warranty | |
| Limited Warranty | 6-Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
