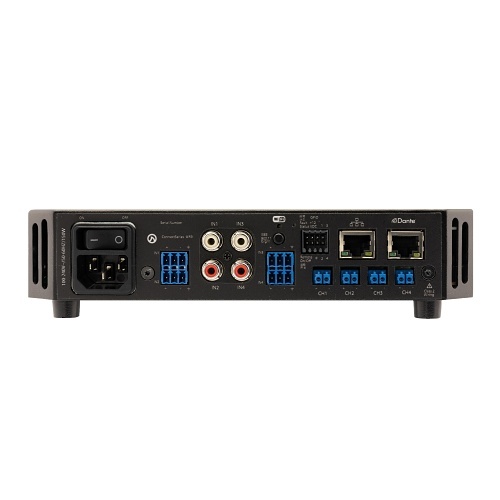

LEA Professional CONNECT 34 4-Channel Smart Amplifier, 30W per Channel, 1/2 Rack, Wi-Fi or FAST Ethernet Connectivity
Image of 2
Key Features
- Delivers reliable 30W per channel across four channels for clear paging, background music and zoned announcements
- Built-in Wi‑Fi, FAST Ethernet and AWS cloud IoT enable remote monitoring, real-time load and pilot-tone detection to reduce onsite maintenance
- Half-rack (1/2) form factor with accessible 25/70.7/100V tap switch and transformer bypass for fast installation in commercial and security systems
- Robust protection (DC, VHF, AC mains, over-temp, current limiter) and variable front-to-rear fan cooling for uninterrupted operation
- Network-ready design simplifies integration with AV, security, surveillance and monitoring systems over Cat5/Cat6 cabling
Quick Specifications
- Brand Name
- LEA Professional
- Manufacturer
- LEA Professional
- Product Type
- Half Rack Amplifier
- Manufacturer Part Number
- CONNECT 34
Product Information Tabs
Overview
Optimize multi-zone audio and system monitoring with the LEA Professional CONNECT 34 4-Channel Smart Amplifier. Purpose-built for commercial AV and security installations, this half-rack pro amplifier delivers 30W per channel and a full 20Hz–20kHz frequency range to ensure intelligible paging, music playback and alarm audio across retail, hospitality, corporate and surveillance deployments. Built-in Wi‑Fi, FAST Ethernet and AWS cloud IoT connectivity provide secure remote access for realtime load monitoring, pilot-tone detection and centralized health alerts — reducing truck rolls and downtime for mission-critical sites.
Installers benefit from the amplifier’s compact 1/2 rack size, six-position tap switch for 25/70.7/100V applications (plus transformer bypass) and straightforward Cat5/Cat6 networking. Advanced protections — including DC, VHF and AC mains safeguards, over-temperature cutoff and fan-fault detection — keep audio systems running reliably in continuous operation environments. Backed by a 6-year limited warranty, the CONNECT 34 integrates smoothly into AV, security and surveillance systems where predictable audio performance and remote management are essential. Contact your LEA Professional reseller to spec the CONNECT 34 for your next project or order today.
Features
- Delivers reliable 30W per channel across four channels for clear paging, background music and zoned announcements
- Built-in Wi‑Fi, FAST Ethernet and AWS cloud IoT enable remote monitoring, real-time load and pilot-tone detection to reduce onsite maintenance
- Half-rack (1/2) form factor with accessible 25/70.7/100V tap switch and transformer bypass for fast installation in commercial and security systems
- Robust protection (DC, VHF, AC mains, over-temp, current limiter) and variable front-to-rear fan cooling for uninterrupted operation
- Network-ready design simplifies integration with AV, security, surveillance and monitoring systems over Cat5/Cat6 cabling
| General Information | |
|---|---|
| Brand Name | LEA Professional |
| Manufacturer | LEA Professional |
| Product Type | Half Rack Amplifier |
| Manufacturer Part Number | CONNECT 34 |
| Technical Information | |
| Bluetooth | No |
| Impedance | 8 ohms |
| Audio Channels | 4 |
| Audio | |
| Maximum Frequency Response | 20 kHz |
| Minimum Frequency Response | 20Hz |
| Interfaces/Ports | |
| Number of Audio Inputs | 4 |
| Network & Communication | |
| Ethernet | Yes |
| Physical Characteristics | |
| Height | 1.71" |
| Power Description | |
| Input Voltage | 100V AC, 240V AC |
| Product Information | |
| Length | 11.82" |
| Warranty | |
| Limited Warranty | 6-Year |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS, UL |
