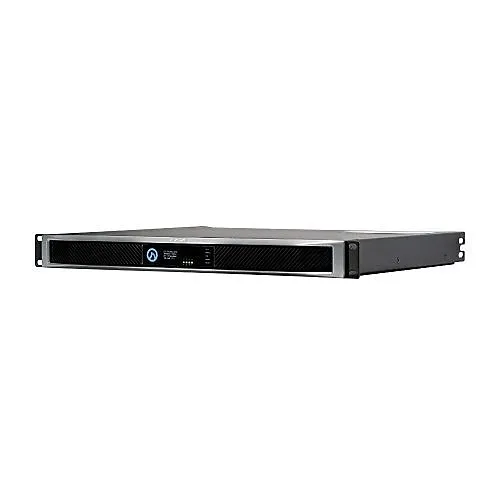

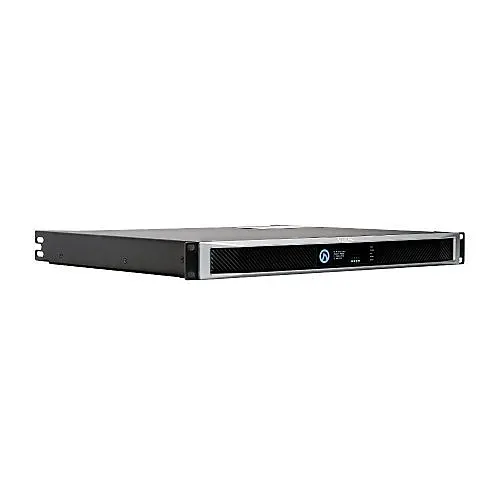

LEA Professional CONNECT 704 19" 4-Channel Amplifier, 700W per Channel
Image of 3
Key Features
- Delivers dependable, room-filling power — 700W per channel across four channels for reliable audio in security, paging and AV systems
- Flexible wiring and routing — per-channel HiZ (70V/100V) or LoZ selection lets you mix distributed speakers and low-impedance loads without extra gear
- Simple networked control — built-in Wi‑Fi AP, venue Wi‑Fi or Ethernet plus WebUI and AWS IoT enable remote monitoring, configuration and cloud management
- Advanced DSP and protection — 96kHz DSP, configurable crossovers, parametric EQs and speaker limiters optimize clarity and protect speakers under continuous monitoring
- Energy-efficient, install-friendly design — Class D outputs, universal SMPS and Smart Power Bridge let you bridge channels and reduce rack space and power draw
Quick Specifications
- Product Model
- CONNECT 704
- Brand Name
- LEA Professional
- Product Line
- Connect
- Product Name
- CONNECT 704 Amplifier
Explore the details
Product information
CONNECT 704
Overview
Optimize multi-zone audio for security, surveillance and commercial AV with the LEA Professional CONNECT 704 4-channel amplifier. Engineered for installers and integrators, this pro amplifier delivers 700W per channel with per-channel HiZ (70V/100V) or LoZ switching so you can drive ceiling, paging and low-impedance speakers from a single rack unit. Network-first connectivity — built-in Wi‑Fi access point, connection to venue Wi‑Fi or FAST Ethernet — plus an intuitive WebUI and AWS IoT support lets you monitor, configure and troubleshoot systems remotely without complex software.
The CONNECT 704 includes a 96kHz Analog Devices DSP with routable inputs, steep crossover filters, 8 parametric EQs and speaker limiters to preserve intelligibility for paging and recording feeds in surveillance/monitoring environments. Smart Power Bridge and a highly efficient Class D output stage reduce rack count and AC current draw while maintaining headroom. TAA/NDAA compliance and a 3-year limited warranty make it a practical choice for government, corporate and critical infrastructure deployments. Add the CONNECT 704 to your security, AV or monitoring project for dependable, networked amplification — contact sales or add to cart to spec it into your next install.
Features
- Delivers dependable, room-filling power — 700W per channel across four channels for reliable audio in security, paging and AV systems
- Flexible wiring and routing — per-channel HiZ (70V/100V) or LoZ selection lets you mix distributed speakers and low-impedance loads without extra gear
- Simple networked control — built-in Wi‑Fi AP, venue Wi‑Fi or Ethernet plus WebUI and AWS IoT enable remote monitoring, configuration and cloud management
- Advanced DSP and protection — 96kHz DSP, configurable crossovers, parametric EQs and speaker limiters optimize clarity and protect speakers under continuous monitoring
- Energy-efficient, install-friendly design — Class D outputs, universal SMPS and Smart Power Bridge let you bridge channels and reduce rack space and power draw
| General Information | |
|---|---|
| Brand Name | LEA Professional |
| Manufacturer | LEA Professional |
| Product Line | Connect |
| Product Name | CONNECT 704 Amplifier |
| Product Type | Amplifier |
| Product Model | CONNECT 704 |
| Manufacturer Part Number | CONNECT 704 |
| Technical Information | |
| Impedance | 8Ohm |
| Audio Channels | 4 |
| Classification | D |
| Audio | |
| RMS Output Power | 700W |
| Maximum Frequency Response | 20kHz |
| Minimum Frequency Response | 20Hz |
| Total Harmonic Distortion (THD) | 0.1% – 0.5% |
| Certifications | |
| Energy Star | No |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Energy & Performance | |
| Operating Power Consumption | 600W |
| Network & Communication | |
| Ethernet | Yes |
| Physical Characteristics | |
| Width | 19.00" |
| Weight | 8.82lb |
| Power Description | |
| Input Voltage | 100V AC, 240V AC |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Environmental Certification | RoHS |
