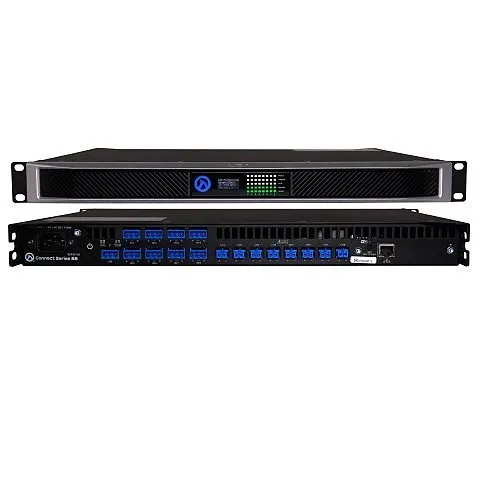

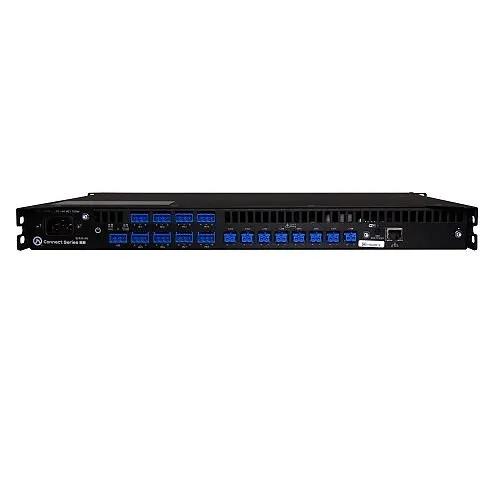

LEA Professional CONNECT 88 19" 8-Channel Amplifier, 80W per Channel
Image of 3
Key Features
- Simplifies multi-zone installs with 8 channels at 80W per channel for reliable background music, paging and security audio
- Per-channel HiZ (70V/100V) or LoZ selectable outputs reduce speaker wiring complexity and support mixed-zone deployments
- Built-in Wi-Fi, venue Wi-Fi and Gigabit Ethernet plus AWS IoT cloud access enable secure remote monitoring, management and firmware updates
- 96kHz DSP with crossover, 8 parametric EQs and speaker limiters optimizes sound and protects speakers in surveillance, paging and monitoring systems
- Smart Power Bridge doubles a channel’s power when you need extra output without sacrificing an amplifier channel, ideal for larger zones
- Compact 1U 19" rack design, universal switch-mode PSU and low AC draw simplify installation and lower operating costs
Quick Specifications
- Product Model
- 88
- Brand Name
- LEA Professional
- Product Line
- Connect
- Product Name
- Connect 88 Amplifier
Explore the details
Product information
CONNECT 88
Overview
Deliver clear, reliable audio across multi-zone venues with the LEA Professional CONNECT 88 pro amplifier. Designed for installers and system integrators, this 8-channel, 80W-per-channel amplifier combines flexible wiring, advanced DSP and networked IoT control so security, surveillance and paging systems stay audible and manageable. Each channel offers HiZ (70V/100V) or LoZ selection to accommodate distributed speakers and reduce field rework, while the 96kHz analog devices DSP provides crossover filters, 8 parametric EQs and user-configurable speaker limiters to tailor sound and protect speakers in monitoring environments. Network connectivity is built-in with an access point, client Wi‑Fi or FAST Ethernet and AWS IoT Core compatibility for secure remote monitoring and cloud-based management—no VPN required. The proprietary Smart Power Bridge lets you double a channel’s power for a demanding zone without sacrificing other channels, and the compact 1U, 19" form factor with universal PSU simplifies rack mounting and global deployments. Ideal for commercial audio, security paging, retail surveillance audio and institutional monitoring. Contact sales to specify the CONNECT 88 for your next installation or order now to streamline multi-zone audio and networked system control.
Features
- Simplifies multi-zone installs with 8 channels at 80W per channel for reliable background music, paging and security audio
- Per-channel HiZ (70V/100V) or LoZ selectable outputs reduce speaker wiring complexity and support mixed-zone deployments
- Built-in Wi-Fi, venue Wi-Fi and Gigabit Ethernet plus AWS IoT cloud access enable secure remote monitoring, management and firmware updates
- 96kHz DSP with crossover, 8 parametric EQs and speaker limiters optimizes sound and protects speakers in surveillance, paging and monitoring systems
- Smart Power Bridge doubles a channel’s power when you need extra output without sacrificing an amplifier channel, ideal for larger zones
- Compact 1U 19" rack design, universal switch-mode PSU and low AC draw simplify installation and lower operating costs
| General Information | |
|---|---|
| Brand Name | LEA Professional |
| Manufacturer | LEA Professional |
| Product Line | Connect |
| Product Name | Connect 88 Amplifier |
| Product Type | Amplifier |
| Product Model | 88 |
| Country of Origin | CR |
| Manufacturer Part Number | CONNECT 88 |
| Technical Information | |
| Impedance | 8Ohm |
| Audio Channels | 8 |
| Classification | D |
| Audio | |
| RMS Output Power | 80W |
| Maximum Frequency Response | 20kHz |
| Minimum Frequency Response | 20Hz |
| Total Harmonic Distortion (THD) | 0.1% – 0.5% |
| Certifications | |
| Energy Star | No |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Energy & Performance | |
| Operating Power Consumption | 150W |
| Network & Communication | |
| Ethernet | Yes |
| Physical Characteristics | |
| Width | 19.00" |
| Height | 1.80" |
| Power Description | |
| Input Voltage | 120V AC, 230V AC |
| Product Information | |
| Length | 14.30" |
| Warranty | |
| Limited Warranty | 6-Year |
| Miscellaneous | |
| Features | Digital Signal Processing |
| Indoor/Outdoor | Indoor |
| Environmental Certification | RoHS |
