JBL Professional 322C High-Power 12" Coax Ceiling Loudspeaker with Medium Format Compression Driver

SKU: CONTROL-322C MPN: CONTROL 322C JBL Professional

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

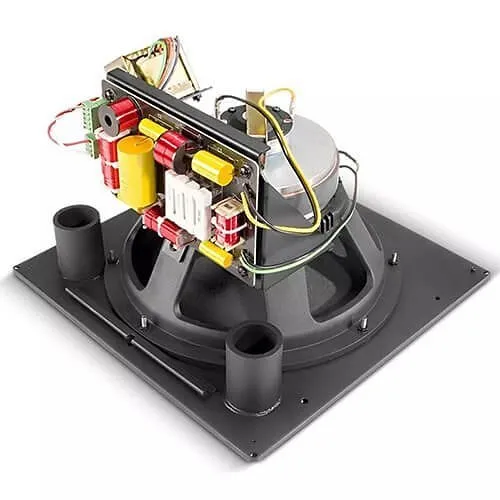

Image of JF-CNTRL322C
Product images for JBL Professional 322C High-Power 12" Coax Ceiling Loudspeaker with Medium Format Compression Driver. 2 image(s) available. Click on image to view full size.

Key Features

  • High-output 400W power for clear, intelligible paging and music in large spaces
  • Coaxial 12" driver with medium-format compression driver for exceptional vocal clarity and extended low-end
  • Consistent 90° broadband coverage for uniform sound across lobbies, corridors and command centers
  • Professional-grade sensitivity (100 dB) reduces amplifier requirements while delivering high SPL
  • Clean ceiling aesthetic with optional backbox for easy, code-compliant installations in security and surveillance environments
  • Robust JBL engineering ensures reliable long-term performance for AV, paging, and monitoring systems

Quick Specifications

Product Model
322C
Brand Name
JBL Professional
Product Line
Control
Product Name
Control 322C Speaker
View Full Technical Specifications

Product Information Tabs

Overview

Deliver intelligible speech and rich music in commercial and security-focused environments with the JBL Professional 322C coax ceiling loudspeaker. Designed as a pro speaker for paging, AV distribution and monitoring applications, the Control 322C combines a 12" coaxial woofer with a medium-format compression driver to produce clear vocals and extended frequency response (48 Hz–19 kHz) that enhances situational awareness in public safety, surveillance and retail environments. With 400W power handling and 100 dB sensitivity, this ceiling mount speaker achieves high SPL with lower amplifier demands, making it ideal for large open areas, command centers and campus paging systems. The advanced high-slope crossover and consistent 90° coverage pattern deliver smooth, natural midrange and predictable dispersion for straightforward system design and fewer loudspeakers per zone. Finished with a discreet grille and optional backbox, the JBL Professional 322C integrates cleanly into modern designs while meeting installation and code requirements. Specify the JBL Professional 322C for your next AV, paging, or security monitoring installation to achieve reliable, high-impact sound.

Features

  • High-output 400W power for clear, intelligible paging and music in large spaces
  • Coaxial 12" driver with medium-format compression driver for exceptional vocal clarity and extended low-end
  • Consistent 90° broadband coverage for uniform sound across lobbies, corridors and command centers
  • Professional-grade sensitivity (100 dB) reduces amplifier requirements while delivering high SPL
  • Clean ceiling aesthetic with optional backbox for easy, code-compliant installations in security and surveillance environments
  • Robust JBL engineering ensures reliable long-term performance for AV, paging, and monitoring systems
General Information
Brand Name JBL Professional
Manufacturer Harman International Industries, Inc
Product Line Control
Product Name Control 322C Speaker
Product Type Speaker
Product Model 322C
Manufacturer Part Number CONTROL322C
Technical Information
Impedance 8 ohms
Sensitivity 100dB
Speaker Size 12"
Crossover Type 2-way
Audio
RMS Output Power 400W
Maximum Frequency Response 19 kHz
Minimum Frequency Response 48Hz
Physical Characteristics
Color Black
Depth 8.8"
Width 14.4"
Height 14.4"
Weight 20lb
Product Information
Mount Type Ceiling Mount
Miscellaneous
Features Advanced high-slope crossover network for constant coverage and smooth, natural midrange, Clean, contemporary grille and optional backbox available, Consistent 90° broadband pattern control, Extraordinary clarity for speech and vocals with extended frequency response for music, Power handling of 400 Watts with high sensitivity provides high SPL capability
Country of Origin CN
