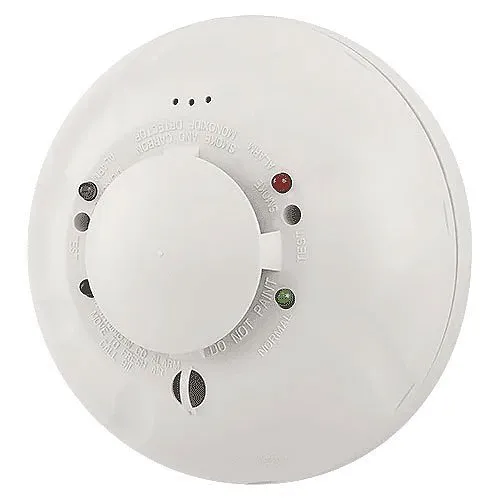

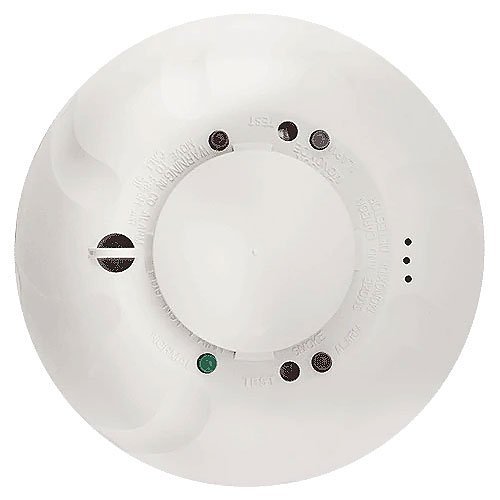

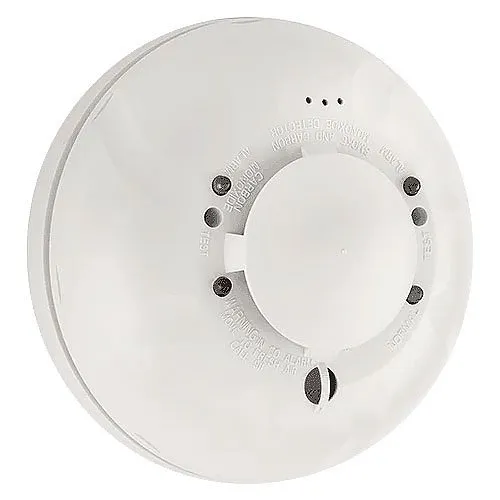

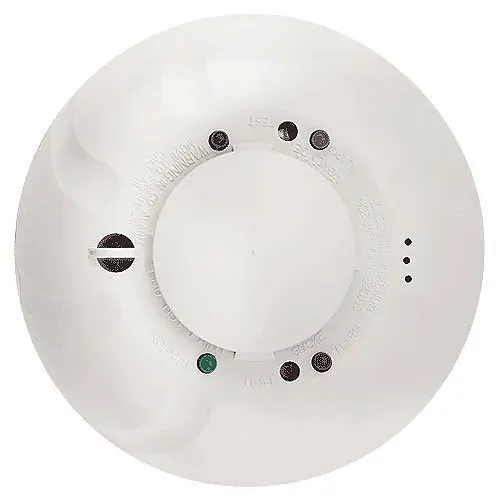

System Sensor COSMO-2W i4 Series, 12/24V, 2-Wire, System-Connected, Combination Carbon Monoxide/Smoke Detector with RealTest Technology

SKU: COSMO-2W System Sensor
System Sensor i4 Series Combination CO/Photoelectric Smoke Detector
Product images for System Sensor COSMO-2W i4 Series, 12/24V, 2-Wire, System-Connected, Combination Carbon Monoxide/Smoke Detector with RealTest Technology. 4 image(s) available. Click on image to view full size.

Key Features

  • Integrated smoke (photoelectric) and CO (electrochemical) detection in one device to reduce wiring, junction boxes and installation time
  • 2‑wire, system‑connected design (12/24V compatible) lets you integrate up to 12 detectors on a single i4 loop for centralized monitoring
  • Built‑in 85 dB sounder and distinct smoke/CO signaling deliver clear on‑site notification and panel annunciation for faster response
  • RealTest technology with external IR LED enables accurate, extended‑range sensitivity testing and easier maintenance verification
  • UL listed (UL 268, UL 2075) reliability for commercial and residential fire & life‑safety installations
  • Ceiling or wall mount form factor suited for multifamily, small commercial and single‑family security applications

Quick Specifications

Brand Name
System Sensor
Manufacturer
Honeywell International, Inc
Product Line
Conventional Detection
Product Name
i4 Series Combination CO/Photoelectric Smoke Detector
View Full Technical Specifications

Product Information Tabs

Overview

Protect occupants and property with a single System Sensor solution that combines reliable smoke and carbon monoxide detection while simplifying installation and monitoring. The COSMO-2W i4 Series combination CO/smoke detector uses photoelectric and electrochemical sensing to detect smoke and CO early, and its 2‑wire, system‑connected design (12/24V compatible) lets integrators add up to 12 devices to an i4 loop for centralized alarm reporting. Built‑in 85 dB sounder and distinct smoke vs. CO signaling ensure clear on‑site notification while panels receive precise event information for fast response. RealTest technology and an external IR LED streamline sensitivity testing and routine maintenance, supporting ongoing surveillance and monitoring programs. UL listed for dependable performance, the COSMO-2W is ideal for multifamily, retail and light‑commercial environments where safety, reduced wiring, and compatibility with fire alarm control panels matter. Upgrade your security and life‑safety system with a compact, code‑ready combo detector—order the System Sensor COSMO-2W today for reliable monitoring and peace of mind.

Features

  • Integrated smoke (photoelectric) and CO (electrochemical) detection in one device to reduce wiring, junction boxes and installation time
  • 2‑wire, system‑connected design (12/24V compatible) lets you integrate up to 12 detectors on a single i4 loop for centralized monitoring
  • Built‑in 85 dB sounder and distinct smoke/CO signaling deliver clear on‑site notification and panel annunciation for faster response
  • RealTest technology with external IR LED enables accurate, extended‑range sensitivity testing and easier maintenance verification
  • UL listed (UL 268, UL 2075) reliability for commercial and residential fire & life‑safety installations
  • Ceiling or wall mount form factor suited for multifamily, small commercial and single‑family security applications
General Information
Brand Name System Sensor
Manufacturer Honeywell International, Inc
Product Line Conventional Detection
Product Name i4 Series Combination CO/Photoelectric Smoke Detector
Product Type Gas/Smoke Detector
Product Model COSMO-2W
Package Length 6.400000000
Product Series i4
Manufacturer Part Number COSMO2W
Technical Information
Sensor Type Photoelectric
Detectable Gas Carbon Monoxide
Detectable Medium Gas
Sensing Technology Electrochemical, Photoelectric
Connectivity Technology Wired
Certifications
UL Listed Yes
Controls/Indicators
Status Indicators Yes
Physical Characteristics
Color White
Depth 2.5"
Height 2.5"
Weight 9.20oz
Form Factor Ceiling Mount, Wall Mount
Power Description
Input Voltage 35V DC
Product Information
Diameter 5.5"
Mount Type Ceiling Mount, Wall Mount
Miscellaneous
Certifications UL 2075, UL 268
Country of Origin MX
