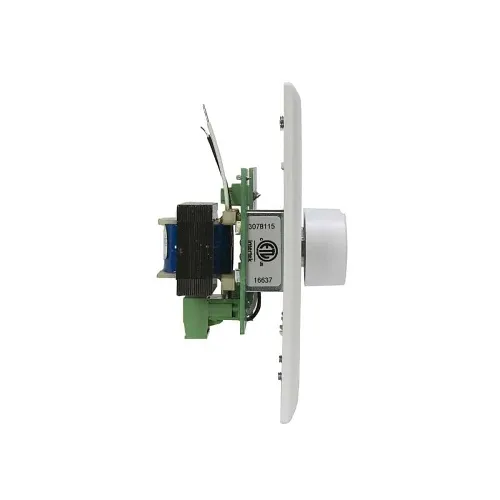

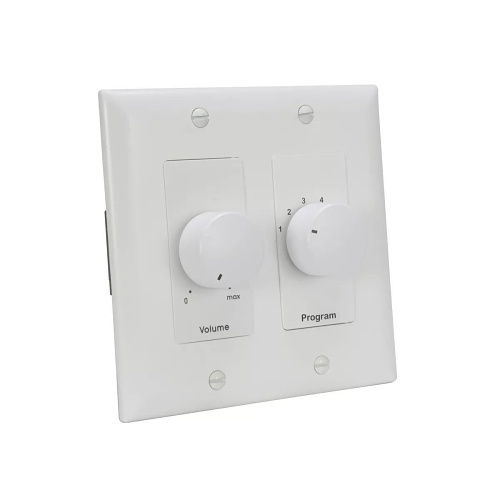

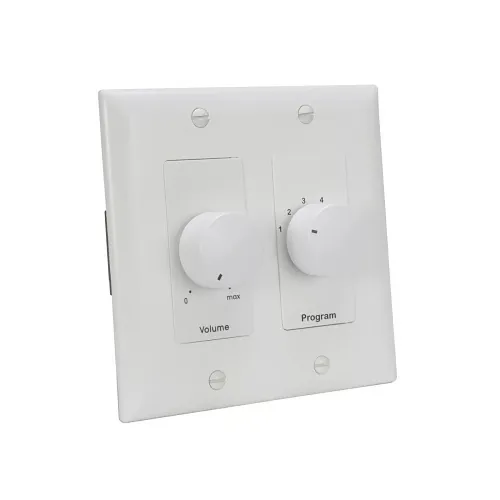

Lowell CS650-DW 50W Mono Volume Control and Program Selector Switch with 1 and 2-Gang Decorator Wall Plates, White
Image of 3
Key Features
- Centralized source selection and volume control simplifies paging, background music and surveillance audio management from a single wall-mounted unit
- Reliable 50W mono attenuator with 10-step (33 dB) control delivers predictable levels for 70V/25V speaker lines, protecting speakers and ensuring consistent coverage
- Six-source, two-pole non-shorting selector preserves signal isolation between programs for clean monitoring and multi-zone paging
- Flexible installation with included 2-gang and two 1-gang decorator plates lets you mount the volume and selector together or separately to match site wiring needs
- Plug-in screw and Euro-style terminals speed prewire and field wiring, reducing install time and labor costs
- Durable, decorator-style design in white with included knob and mounting hardware provides a professional finish for commercial, security and surveillance environments
Quick Specifications
- Brand Name
- Lowell Manufacturing
- Manufacturer Part Number
- CS650-DW
Product Information Tabs
Overview
Take precise control of on-site audio with the Lowell Manufacturing CS650-DW Pro Audio Controller, engineered for commercial paging, monitoring and surveillance applications. This combination wall unit pairs a 50W mono autoformer-style volume control with a six-source program selector so integrators can select the active audio feed and set speaker levels from one convenient location. Compatible with 70V and 25V speaker lines, the volume control provides 33 dB of attenuation across 10 steps for predictable level changes and protected speaker output. The two-pole, non-shorting rotary selector maintains full isolation between sources—ideal for multi-source paging, background music and security audio feeds. Installer-minded features like plug-in screw and Euro-style terminals plus included 2-gang and two 1-gang decorator wall plates reduce labor and enable flexible mounting configurations to suit control rooms, corridors or guard stations. Finished in white with supplied knob and hardware, the CS650-DW blends into professional environments while delivering dependable performance. Add the CS650-DW to your next security, surveillance or commercial audio deployment to centralize control and simplify system operation.
Features
- Centralized source selection and volume control simplifies paging, background music and surveillance audio management from a single wall-mounted unit
- Reliable 50W mono attenuator with 10-step (33 dB) control delivers predictable levels for 70V/25V speaker lines, protecting speakers and ensuring consistent coverage
- Six-source, two-pole non-shorting selector preserves signal isolation between programs for clean monitoring and multi-zone paging
- Flexible installation with included 2-gang and two 1-gang decorator plates lets you mount the volume and selector together or separately to match site wiring needs
- Plug-in screw and Euro-style terminals speed prewire and field wiring, reducing install time and labor costs
- Durable, decorator-style design in white with included knob and mounting hardware provides a professional finish for commercial, security and surveillance environments
| General Information | |
|---|---|
| Brand Name | Lowell Manufacturing |
| Manufacturer Part Number | CS650-DW |
| Physical Characteristics | |
| Color | White |
| Miscellaneous | |
| Country of Origin | US |
