Marshall CV420E 4K Compact ePTZ Stream Camera with IP, HDMI and USB, 4.5mm Lens, Black

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

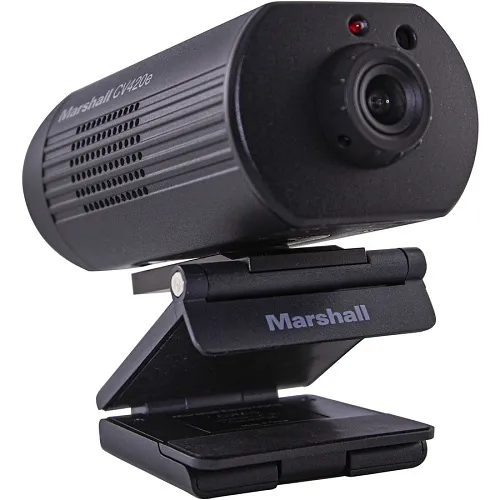

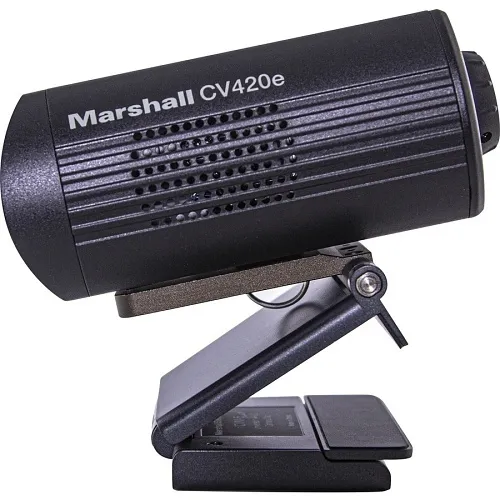

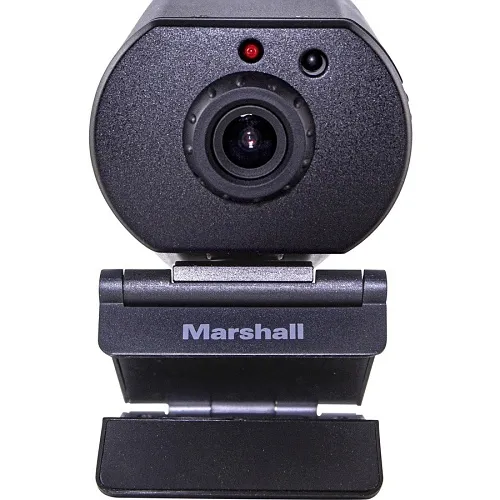

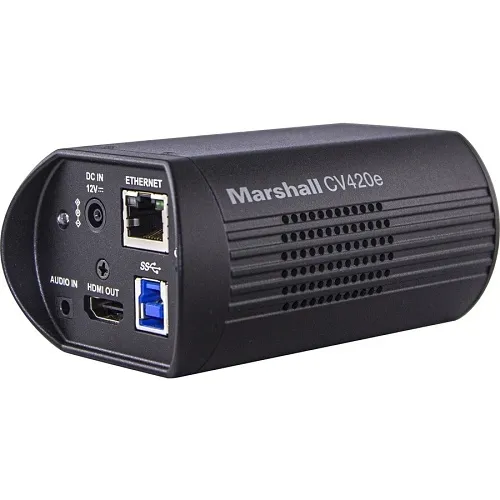

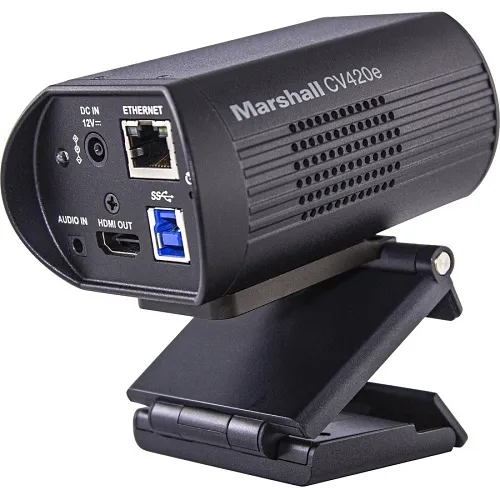

Image of 99-CV420E
Product images for Marshall CV420E 4K Compact ePTZ Stream Camera with IP, HDMI and USB, 4.5mm Lens, Black. 7 image(s) available. Click on image to view full size.

Key Features

  • Capture more with ultra-wide 100° field of view and a 1/1.8" 4K sensor for crisp images in conferencing and security monitoring
  • Flexible streaming over IP (HEVC), USB3.0 and simultaneous HDMI output to fit existing AV and network workflows
  • Smooth ePTZ control lets you digitally pan, tilt and zoom HD regions inside the 4K frame for precise subject framing and surveillance coverage

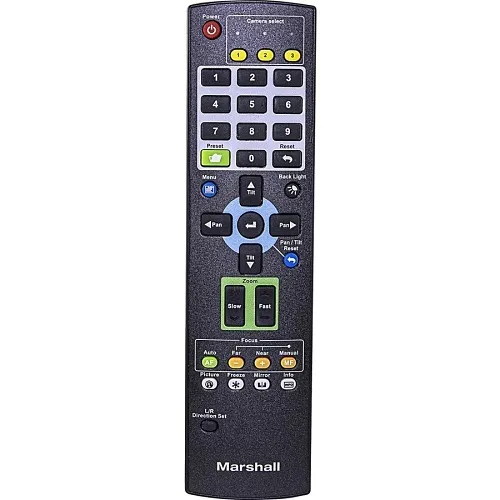

  • Compact, durable design with included mount and IR remote for fast deployment in boardrooms, control rooms or live-stream setups
  • Low-bandwidth HEVC streaming and USB UVC compatibility simplify integration with VMS, conferencing platforms and cloud services

Quick Specifications

Product Model
CV420E
Brand Name
Marshall Electronics
Product Name
Compact 4K60 ePTZ Camera (HDMI, IP & USB)
Product Type
Network Camera
View Full Technical Specifications

Frequently Bought Together

This Item
Marshall CV420E 4K Compact ePTZ Stream Camera with IP, HDMI and USB, 4.5mm Lens, Black

Marshall CV420E 4K Compact ePTZ Stream Camera with IP, HDMI and USB, 4.5mm Lens, Black

$1,069.49

Frequently Bought Together (3 items)

4 items selected

Total: $1,658.67

Product Information Tabs

Overview

Designed for professional conferencing, surveillance and live-streaming, the Marshall CV420E 4K compact ePTZ stream camera delivers flexible, high-quality imaging where you need it most. From huddle rooms to control centers, this Marshall Electronics video conference camera combines a large 1/1.8" 4K sensor (9MP effective) and a 100° ultra-wide angle-of-view to capture more participants or scene detail without distortion. Stream efficiently over IP using H.265/HEVC, or connect via USB3.0 with simultaneous HDMI output for local recording and monitoring. The built-in ePTZ lets operators digitally pan, tilt and zoom HD regions inside the 4K image—ideal for remote monitoring, security and presentation switching—while supporting VISCA over IP and UVC control for easy integration with VMS and conferencing systems. Rated for typical operating environments and powered by 12V DC, the CV420E is compact, rugged and ready for fast installation. Upgrade your conferencing, surveillance or monitoring setup with the Marshall CV420E — request a quote or add to your AV deployment today.

Features

  • Capture more with ultra-wide 100° field of view and a 1/1.8" 4K sensor for crisp images in conferencing and security monitoring
  • Flexible streaming over IP (HEVC), USB3.0 and simultaneous HDMI output to fit existing AV and network workflows
  • Smooth ePTZ control lets you digitally pan, tilt and zoom HD regions inside the 4K frame for precise subject framing and surveillance coverage
  • Compact, durable design with included mount and IR remote for fast deployment in boardrooms, control rooms or live-stream setups
  • Low-bandwidth HEVC streaming and USB UVC compatibility simplify integration with VMS, conferencing platforms and cloud services
General Information
Brand Name Marshall Electronics
Manufacturer Marshall Electronics, Inc
Product Name Compact 4K60 ePTZ Camera (HDMI, IP & USB)
Product Type Network Camera
Product Model CV420E
Manufacturer Part Number CV420E
Technical Information
Lens Type Fixed
Field of View 100°
Video Formats H.264, H.265 (HEVC), HEVC
Maximum Frame Rate 60fps
Minimum Focal Length 4.5mm
Connectivity Technology Wired
Effective Camera Resolution 9MP
Camera
Image Sensor Type CMOS
Display & Graphics
Maximum Video Resolution 3840 x 2160
Environmental Conditions
Maximum Operating Temperature 104°F (40°C)
Minimum Operating Temperature 32°F (0°C)
Exposure
Longest Shutter Speed 1/10000 Second
Shortest Shutter Speed 1 Second
Interfaces/Ports
HDMI Yes
Network (RJ-45) Yes
Lens
Focal Length 4.57mm
Lens Included Yes
Maximum Focal Length 4.5mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color Black
Weight 0.77lb
Power Description
Input Voltage 12V DC
Storage
Recording Formats 4K
Video
Maximum Resolution 1280 x 720
Miscellaneous
Features ePTZ, Wide Dynamic Range
Country of Origin TW
