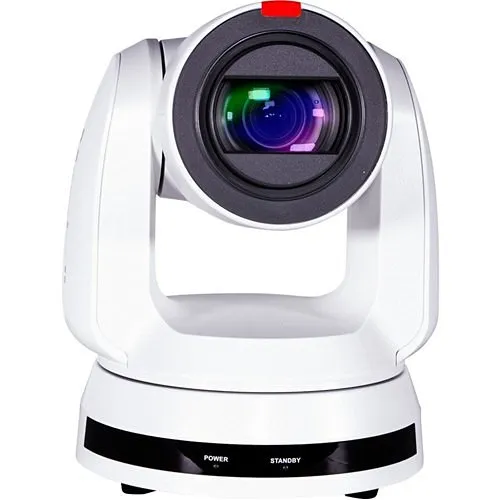

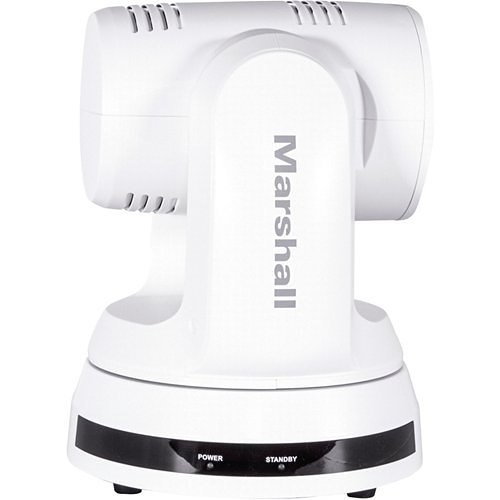

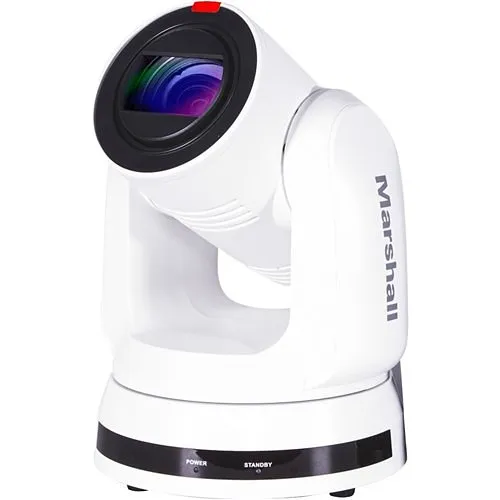

Marshall CV730-WH 8.5MP UHD 12G-SDI/HDMI2.0/IP PTZ Camera, 30x Optical Zoom, White
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Key Features
- Deliver crisp 4K60 video for conferencing and security with an 8.5MP UHD sensor that improves recognition and presentation clarity
- 30x optical zoom lets you monitor distant subjects and capture fine detail without sacrificing image quality—ideal for surveillance and event coverage
- Flexible 12G-SDI, HDMI2.0 and IP connectivity simplifies integration into AV, streaming and security networks for reliable monitoring and recording
- PTZ remote control and network management enable fast framing adjustments and centralized operation across boardrooms, classrooms, and control rooms
- Compact white enclosure with ceiling and wall mount options blends into professional spaces while offering discreet monitoring capability
Quick Specifications
- Product Model
- CV730
- Brand Name
- Marshall Electronics
- Product Name
- 30X UHD60 PTZ Camera
- Product Type
- Network Camera
Explore the details
Product information
CV730-WH
Overview
Deliver dependable 4K video and precise remote control for video conferencing, security monitoring, and live event capture. The Marshall Electronics CV730-WH PTZ camera pairs an 8.5MP UHD sensor with 30x optical zoom to preserve detail at long distances while producing smooth 3840x2160p at 60fps imagery for presentations and surveillance. Multiple outputs—12G‑SDI, HDMI2.0 and IP streaming—make the CV730-WH easy to integrate with existing AV systems, NVRs, and network infrastructure, reducing installation time and simplifying workflows.
Designed for professional environments, this network camera supports remote management and PTZ control so operators can reframe scenes quickly during meetings, lectures, or live events. Its varifocal lens and 65° horizontal field of view offer the flexibility to cover large rooms or focus tightly on subjects. Ideal for boardrooms, classrooms, event spaces and security applications, the CV730-WH delivers reliable monitoring and high-quality video wherever precision matters. Upgrade your surveillance and conferencing setup with the Marshall CV730-WH PTZ camera—contact sales or add it to your AV specification today.
Features
- Deliver crisp 4K60 video for conferencing and security with an 8.5MP UHD sensor that improves recognition and presentation clarity
- 30x optical zoom lets you monitor distant subjects and capture fine detail without sacrificing image quality—ideal for surveillance and event coverage
- Flexible 12G-SDI, HDMI2.0 and IP connectivity simplifies integration into AV, streaming and security networks for reliable monitoring and recording
- PTZ remote control and network management enable fast framing adjustments and centralized operation across boardrooms, classrooms, and control rooms
- Compact white enclosure with ceiling and wall mount options blends into professional spaces while offering discreet monitoring capability
| General Information | |
|---|---|
| Brand Name | Marshall Electronics |
| Manufacturer | Marshall Electronics, Inc |
| Product Name | 30X UHD60 PTZ Camera |
| Product Type | Network Camera |
| Product Model | CV730 |
| Manufacturer Part Number | CV730-WH |
| Technical Information | |
| Lens Type | Varifocal |
| Optical Zoom | 30x |
| Field of View | Horizontal |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 6.5mm |
| Connectivity Technology | Wired |
| Field of View (Horizontal) | 65° |
| Effective Camera Resolution | 8MP |
| Camera | |
| Image Sensor Type | CMOS |
| Display & Graphics | |
| Maximum Video Resolution | 3840 x 2160 |
| Environmental Conditions | |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | 0°C |
| Exposure | |
| Longest Shutter Speed | 1/10000 Second |
| Shortest Shutter Speed | 1/1 Second |

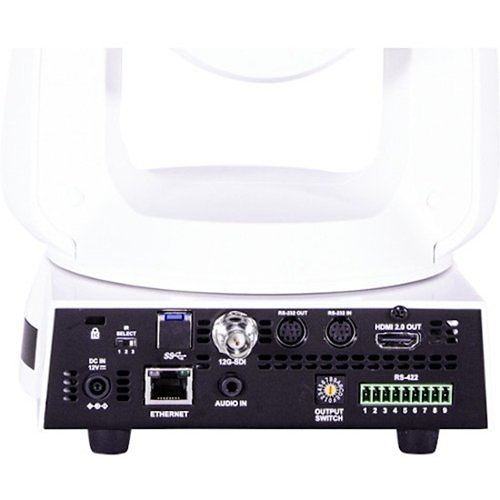

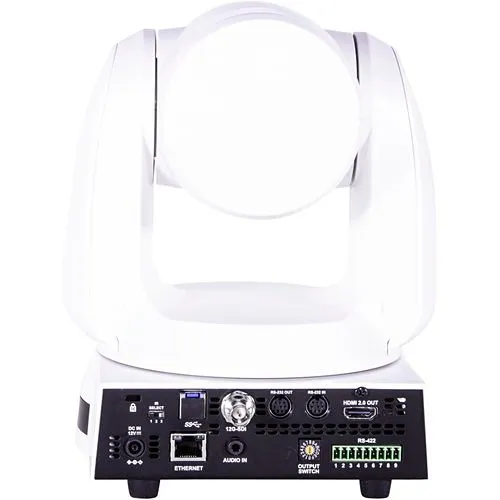

| Interfaces/Ports | |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Lens | |
| Lens Included | Yes |
| Maximum Focal Length | 202mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Depth | 7" |
| Width | 9" |
| Height | 7" |
| Weight | 6.60lb |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Mount Type | Ceiling Mount, Wall Mount |
| Storage | |
| Recording Formats | 4K |
| Video | |
| Analog Video Signal Format | 12G-SDI, 3G-SDI, 6G-SDI |
| Miscellaneous | |
| Features | PTZ, White Balance |
| Indoor/Outdoor | Indoor |
| Country of Origin | TW |
