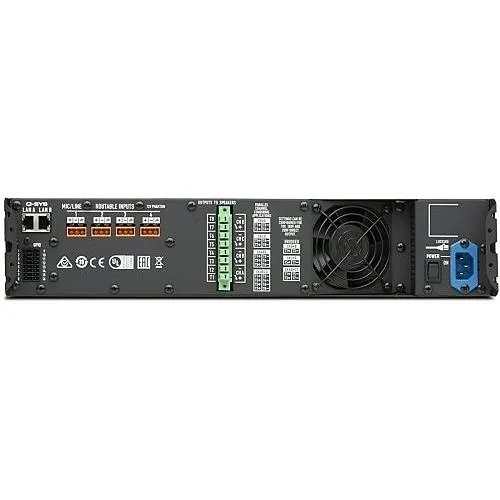

QSC CX-Q 8K8 Q-SYS 8-Channel Network Amplifier with Mic/Line Inputs, 8000W
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Key Features
- Deliver consistent, high-density audio across large installations with eight channels and up to 8000W total power for multi-zone paging, music and emergency voice systems
- Native Q-SYS network integration simplifies audio-routing, monitoring and control so integrators save time on setup and maintenance
- Flexible low-Z, 70V and 100V direct-drive outputs plus FlexAmp asymmetric power distribution let you right-size power per zone for unequal speaker loads
- Onboard mic/line inputs with +12V phantom and routable I/O provide local source access into your Q-SYS ecosystem for security and surveillance feeds
- Energy-efficient PowerLight SMPS, automatic energy-saving modes and multi-layer protection reduce operating costs and maximize system uptime
Quick Specifications
- Product Model
- CX-Q 8K8
- Brand Name
- QSC
- Product Line
- Q-SYS
- Product Name
- Eight-channel Network Amplifier for the Q-SYS Platform
Product Information Tabs
Overview
For demanding commercial and security applications, the QSC CX-Q 8K8 network amplifier delivers reliable, high-power audio where it matters most. This QSC eight-channel pro amplifier combines native Q-SYS networking with industry-grade amplification—providing up to 8000W total power and flexible Class-D efficiency for clear paging, background music and emergency voice evacuation. Installers benefit from on-board mic/line inputs (with +12V phantom) that feed directly into Q-SYS for centralized processing, while touch-proof Euroblock outputs support low-Z, 70V or 100V direct drive for diverse loudspeaker systems. Advanced features such as FlexAmp asymmetric power distribution and PowerLight universal SMPS lower installation complexity and operating costs, and bi-directional GPIO plus network monitoring enable seamless integration with security, surveillance and monitoring systems. Built-in protection and automatic energy-saving modes keep systems stable under real-world conditions. Ideal for airports, campuses, retail and critical infrastructure deployments — configure the CX-Q 8K8 to meet your networked audio, paging and security monitoring needs today.
Features
- Deliver consistent, high-density audio across large installations with eight channels and up to 8000W total power for multi-zone paging, music and emergency voice systems
- Native Q-SYS network integration simplifies audio-routing, monitoring and control so integrators save time on setup and maintenance
- Flexible low-Z, 70V and 100V direct-drive outputs plus FlexAmp asymmetric power distribution let you right-size power per zone for unequal speaker loads
- Onboard mic/line inputs with +12V phantom and routable I/O provide local source access into your Q-SYS ecosystem for security and surveillance feeds
- Energy-efficient PowerLight SMPS, automatic energy-saving modes and multi-layer protection reduce operating costs and maximize system uptime
| General Information | |
|---|---|
| Brand Name | QSC |
| Manufacturer | QSC Audio |
| Product Line | Q-SYS |
| Product Name | Eight-channel Network Amplifier for the Q-SYS Platform |
| Product Type | Amplifier |
| Product Model | CX-Q 8K8 |
| Product Series | CX-Q |
| Manufacturer Part Number | CXQ8K8 |
| Technical Information | |
| Impedance | 8 ohms |
| Audio Channels | 8 |
| Classification | D |
| Audio | |
| RMS Output Power | 1250W |
| Maximum Frequency Response | 20 kHz |
| Minimum Frequency Response | 20Hz |
| Total Harmonic Distortion (THD) | 0.1% |
| Network & Communication | |
| Ethernet | Yes |
| Others | |
| Model Number Replaces | CX-Q8K8-NA |
| Physical Characteristics | |
| Depth | 16" |
| Width | 19" |
| Height | 3.5" |
| Weight | 26.01lb |
| Power Description | |
| Input Voltage | 120V AC, 230V AC |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Overcurrent Protection, Short Protection, Thermal Protection |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
