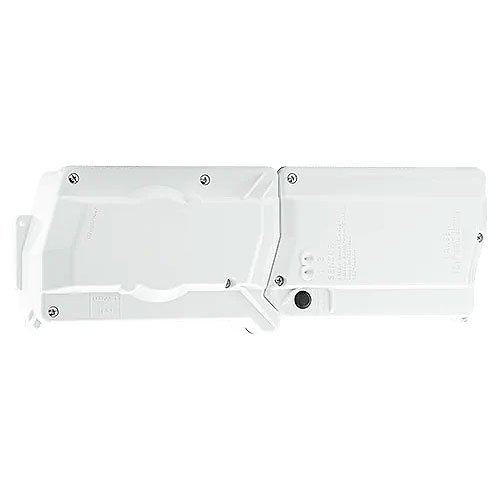

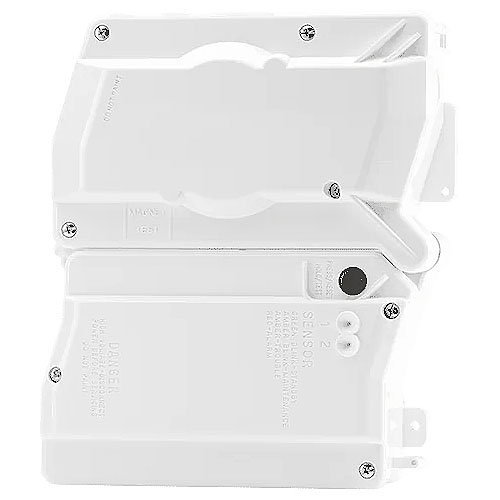

System Sensor D4120W Watertight 4-Wire Photoelectric Duct Smoke Detector, 24VDC/120VAC
Image of 3
Key Features
- Watertight NEMA 4 enclosure protects rooftop HVAC and outdoor ductwork from rain, dust and hose-directed water for reliable, long-term monitoring
- Plug-in photoelectric sensor with enhanced false-alarm immunity reduces nuisance alarms and lowers maintenance visits
- Universal 24VDC / 120VAC operation and two DPDT relay outputs simplify integration with existing security and building automation systems
- Wide operating range (100–4,000 ft/min airflow, –4°F to 158°F) ensures dependable smoke detection across diverse HVAC conditions
- Tool-free sampling tube installation and easy-access Test/Reset make testing and service faster, cutting downtime and labor costs
Quick Specifications
- Brand Name
- System Sensor
- Manufacturer
- Honeywell International, Inc
- Product Line
- InnovairFlex
- Product Name
- InnovairFlex D4120W Smoke Detector
Product Information Tabs
Overview
Designed for demanding HVAC and rooftop environments, the System Sensor D4120W watertight 4-wire photoelectric duct smoke detector delivers dependable smoke detection where standard devices fail. The NEMA 4 watertight housing shields critical electronics from windblown dust, rain and hose-directed water so your fire safety and security monitoring remain uninterrupted. With field-selectable 24VDC or 120VAC power, two DPDT relay contacts and a plug-in sensor head offering superior false-alarm immunity, the D4120W integrates easily into existing surveillance, building automation and fire alarm systems. It operates reliably across airflow speeds from 100 to 4,000 ft/min and temperatures from –4°F to 158°F, making it ideal for commercial rooftops, data centers and industrial duct pathways. Installer-friendly features — including a patented front/back sampling tube, 3/4" conduit knockout and one-button Test/Reset — reduce installation time and simplify maintenance. Choose the System Sensor D4120W for robust duct protection and consistent monitoring performance in harsh environments. Contact us to specify for your next HVAC or facility protection project.
Features
- Watertight NEMA 4 enclosure protects rooftop HVAC and outdoor ductwork from rain, dust and hose-directed water for reliable, long-term monitoring
- Plug-in photoelectric sensor with enhanced false-alarm immunity reduces nuisance alarms and lowers maintenance visits
- Universal 24VDC / 120VAC operation and two DPDT relay outputs simplify integration with existing security and building automation systems
- Wide operating range (100–4,000 ft/min airflow, –4°F to 158°F) ensures dependable smoke detection across diverse HVAC conditions
- Tool-free sampling tube installation and easy-access Test/Reset make testing and service faster, cutting downtime and labor costs
| General Information | |
|---|---|
| Brand Name | System Sensor |
| Manufacturer | Honeywell International, Inc |
| Product Line | InnovairFlex |
| Product Name | InnovairFlex D4120W Smoke Detector |
| Product Type | Smoke Detector |
| Product Model | D4120W |
| Package Length | 15.300000000 |
| Product Series | InnovairFlex |
| Manufacturer Part Number | D4120W |
| Technical Information | |
| Sensor Type | Photoelectric |
| Application/Usage | Air Duct Protection |
| Detectable Medium | Smoke |
| Sensing Technology | Photoelectric |
| Connectivity Technology | Wired |
| Certifications | |
| UL Listed | Yes |
| Controls/Indicators | |
| Status Indicators | Yes |
| Others | |
| Model Number Replaces | DH100ACDCLWP |
| Physical Characteristics | |
| Depth | 2.5" |
| Width | 5" |
| Height | 14.4" |
| Form Factor | Duct Mount |
| Power Description | |
| Power Source | AC, DC |
| Input Voltage | 120V AC, 24V DC, 29V DC |
| Product Information | |
| Mount Type | Duct Mount |
| Miscellaneous | |
| Features | 24V AC/DC or 120V AC, Backward compatibility with existing Innovair products, including remote accessories, Built-in short circuit protection from operator wiring errors, Field selectable settings for configuring the detector, Increased wiring space with a newly added 3/4 inch conduit knockout, New high contrast terminal designations, One easy-access Test/Reset button and improved LED status, Patented interconnect feature for multi-fan shutdown, Patented sampling tube installs from front or back of the detector with no tools required, Two DPDT Form C relay contacts |
| Country of Origin | MX |
