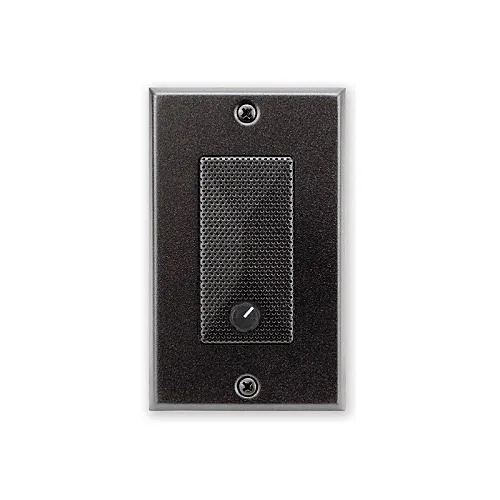

RDL DB-PSP1A Decora-Style Active Loudspeaker, Black
Image of 2
Key Features
- Decora-style, ultra-compact design for discreet wall or chassis mounting, ideal for paging and background audio in security and commercial spaces
- Single-cable RJ45 connection carries audio plus 24 VDC power for fast, low-voltage installation with RDL Format A twisted-pair systems
- High-efficiency Class D amplifier delivers clean 2W RMS output with minimal heat and low power draw for reliable 24/7 operation
- Built-in analog compressor/limiter and tailored audio filtering preserve clarity at higher average levels, reducing distortion during announcements
- Premium driver and sealed steel enclosure reproduce a wide 150 Hz–20 kHz frequency range with near 180° spherical dispersion for broad coverage
- Plug-and-play compatibility with networked paging, intercom, surveillance audio, and monitoring systems for streamlined deployments
Quick Specifications
- Product Model
- DB-PSP1A
- Brand Name
- Radio Design Labs
- Product Name
- Decora-Style Active Loudspeaker
- Product Type
- Speaker System
Product Information Tabs
Overview
Bring clear, dependable audio to security, paging, and background-music applications with the Radio Design Labs DB-PSP1A Decora-Style Active Loudspeaker. This Decora-format speaker mounts neatly in a wall or chassis to deliver intelligible voice announcements and program audio where space and aesthetics matter. The DB-PSP1A accepts audio and 24 VDC power via a single rear RJ45 jack (Format A twisted pair), simplifying installation in networked paging and surveillance audio systems. A high-efficiency Class D amplifier provides 2W RMS of clean power while generating negligible heat, and internal filtering plus an analog compressor/limiter increase usable output without clipping. The premium driver and rigid steel enclosure extend response from 150 Hz to 20 kHz and offer nearly 180° dispersion for even coverage in corridors, control rooms, and monitoring stations. Built for integrators and security professionals, the PSP1A pairs easily with RDL format hardware to support intercoms, voice evacuation, and monitoring systems. Add compact, professional-grade audio to your next security or AV project—specify the DB-PSP1A for reliable paging and surveillance audio.
Features
- Decora-style, ultra-compact design for discreet wall or chassis mounting, ideal for paging and background audio in security and commercial spaces
- Single-cable RJ45 connection carries audio plus 24 VDC power for fast, low-voltage installation with RDL Format A twisted-pair systems
- High-efficiency Class D amplifier delivers clean 2W RMS output with minimal heat and low power draw for reliable 24/7 operation
- Built-in analog compressor/limiter and tailored audio filtering preserve clarity at higher average levels, reducing distortion during announcements
- Premium driver and sealed steel enclosure reproduce a wide 150 Hz–20 kHz frequency range with near 180° spherical dispersion for broad coverage
- Plug-and-play compatibility with networked paging, intercom, surveillance audio, and monitoring systems for streamlined deployments
| General Information | |
|---|---|
| Brand Name | Radio Design Labs |
| Manufacturer | Radio Design Labs, Inc |
| Product Name | Decora-Style Active Loudspeaker |
| Product Type | Speaker System |
| Product Model | DB-PSP1A |
| Product Series | D |
| Manufacturer Part Number | DB-PSP1A |
| Audio | |
| RMS Output Power | 2W |
| Maximum Frequency Response | 20 kHz |
| Minimum Frequency Response | 150Hz |
| Physical Characteristics | |
| Color | Black |
| Depth | 2.3" |
| Width | 1.7" |
| Height | 4.1" |
| Weight | 6.77oz |
| Package Type | Box |
| Miscellaneous | |
| Package Contents | Decora-Style Active Loudspeaker Grills |
| Country of Origin | US |
| Environmentally Friendly | Yes |
| Environmental Certification | WEEE |
