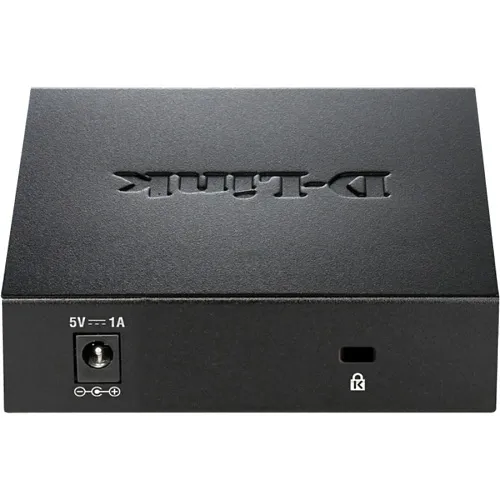

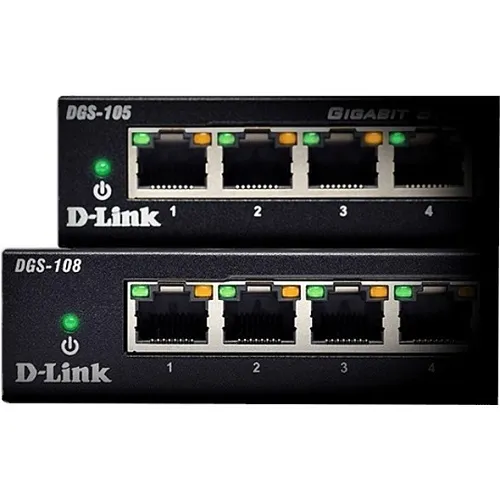

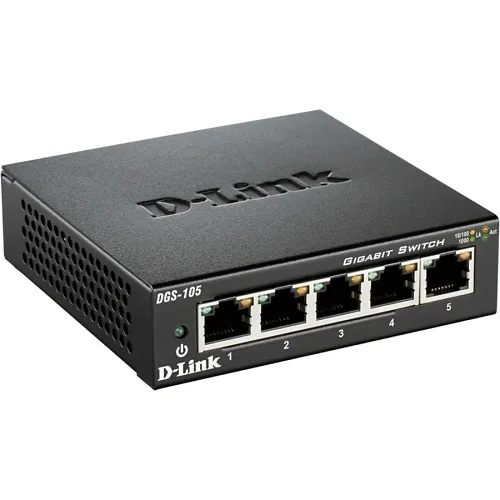

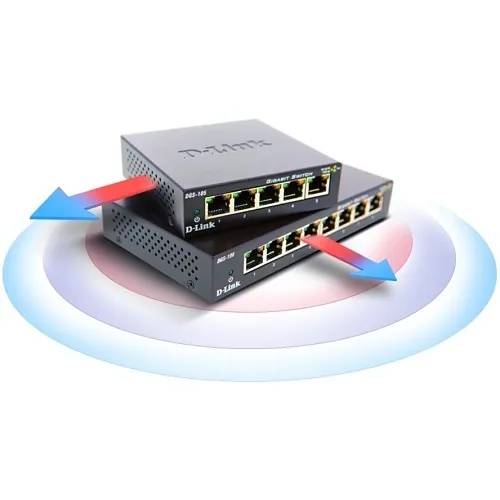

D-Link DGS-105GL 5-Port Gigabit Desktop Switch, Metal
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Key Features
- Compact 5-port gigabit connectivity that instantly expands wired network capacity for SOHO, retail or branch offices.
- Durable metal, fanless design offers silent operation and reliable heat dissipation for 24/7 surveillance and monitoring deployments.
- Energy-efficient operation (IEEE 802.3az) and low 3.10W power draw reduce operating costs in always-on security networks.
- True plug-and-play unmanaged switch eliminates configuration overhead for fast installation with NVRs, IP cameras and VoIP phones.
- Auto-MDI/MDIX and 1000Base-T auto-negotiation ensure optimal link speeds up to 1000 Mbps without special cables or setup.
Quick Specifications
- Product Model
- DGS-105
- Brand Name
- D-Link
- Product Name
- DGS-105 Ethernet Switch
- Product Type
- Ethernet Switch
Explore the details
Product information
DGS-105GL
Overview
Ideal for small offices, retail sites and surveillance installations, the D-Link DGS-105GL 5-Port Gigabit Desktop Switch delivers reliable, high-speed wired connectivity where it matters most. This D-Link unmanaged network switch gives IT teams and installers five auto-sensing 10/100/1000Base-T ports to attach IP cameras, NVRs, switches and workstations with gigabit throughput and plug-and-play simplicity. The rugged metal, fanless enclosure is built for continuous operation in compact or edge environments — perfect for security, monitoring and VoIP deployments where silent, dependable service is required.
Built with Energy-Efficient Ethernet (IEEE 802.3az) and a low 3.10W power profile, the DGS-105GL minimizes energy costs while maintaining performance. Auto-MDI/MDIX and traffic-friendly Layer 2 features like 802.1p QoS ensure priority for critical surveillance streams and business applications. Supplied with a compact 5V AC adapter, the desktop-mount switch is quick to deploy outside the wiring closet.
For installers and IT managers seeking a cost-effective, durable gigabit switch for security, surveillance and small business networking, the D-Link DGS-105GL is a ready-to-run solution—add it to your network to strengthen monitoring and connectivity today.
Features
- Compact 5-port gigabit connectivity that instantly expands wired network capacity for SOHO, retail or branch offices.
- Durable metal, fanless design offers silent operation and reliable heat dissipation for 24/7 surveillance and monitoring deployments.
- Energy-efficient operation (IEEE 802.3az) and low 3.10W power draw reduce operating costs in always-on security networks.
- True plug-and-play unmanaged switch eliminates configuration overhead for fast installation with NVRs, IP cameras and VoIP phones.
- Auto-MDI/MDIX and 1000Base-T auto-negotiation ensure optimal link speeds up to 1000 Mbps without special cables or setup.
| General Information | |
|---|---|
| Brand Name | D-Link |
| Manufacturer | D-Link Systems, Inc |
| Product Name | DGS-105 Ethernet Switch |
| Product Type | Ethernet Switch |
| Product Model | DGS-105 |
| Manufacturer Part Number | DGS-105GL |
| Technical Information | |
| Power Consumption | 3.10W |
| Media Type Supported | Twisted Pair |
| Certifications | |
| Energy Star | Yes |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Management & Protocols | |
| Manageable | No |
| Media & Performance | |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Ethernet Technology | Gigabit Ethernet |
| Physical Characteristics | |
| Color | Green |
| Depth | 3.9" |
| Width | 3.9" |
| Height | 1.1" |
| Weight | 9.42oz |
| Power Description | |
| Power Source | AC Adapter |
| Input Voltage | 5V DC |
| Product Information | |
| Mount Type | Desktop Mount |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | 5 Gigabit Ethernet ports, Energy Efficient, Fanless, Metal casing, Plug & Play Installation |
| Country of Origin | PH |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
