Williams AV DL 102 SY1 Counter Loop Amplifier System with PLW 037 120' Loop Wire, PLM 001 Loop Mat and Surface Microphone

SKU: DL102-SY1 MPN: DL102 SY1 Williams AV

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

Image of WS-DL102SY1
Product images for Williams AV DL 102 SY1 Counter Loop Amplifier System with PLW 037 120' Loop Wire, PLM 001 Loop Mat and Surface Microphone. 4 image(s) available. Click on image to view full size.

Key Features

  • Improves customer communication at service counters and reception desks by delivering clear T‑coil audio directly into hearing aids

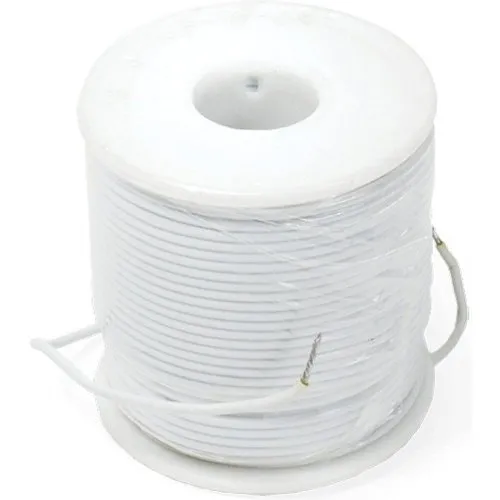

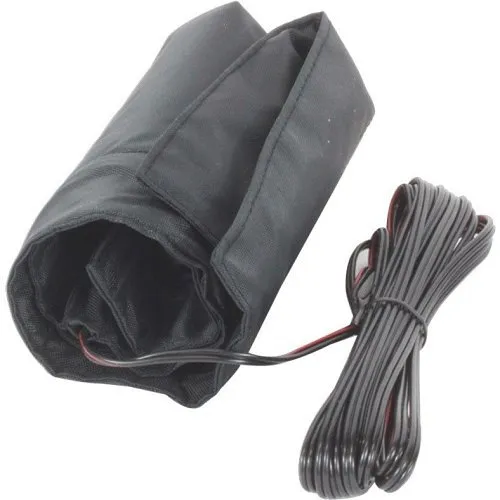

  • Includes 120' loop wire (PLW 037) and PLM 001 loop mat for fast, low‑profile installation at teller and security stations
  • Compact, discreet design fits under counters or behind monitors for a professional, unobtrusive assistive listening solution

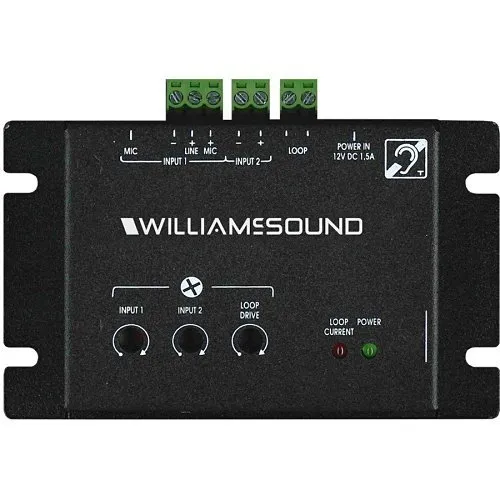

  • Easy integration with microphones or line‑level sources — supports mic or 3.5 mm/line inputs for flexible audio routing
  • Reliable constant‑current amplifier with thermal, short‑circuit and start protection plus 12V DC (1.5A) power for stable performance

Quick Specifications

Product Model
DL 102 SY1
Brand Name
Williams AV
Product Name
Counter Loop System
Product Type
Amplifier
View Full Technical Specifications

Product Information Tabs

Overview

Help customers with hearing loss hear staff clearly at service counters, ticket windows, and security desks with the Williams AV DL 102 SY1 counter loop amplifier system. This professional assistive listening device provides direct T‑coil audio pickup into hearing aids and cochlear implants, removing the need for personal receivers and improving accessibility at point‑of‑sale and monitoring stations. The system ships with a PLW 037 120' loop wire and PLM 001 loop mat for neat, low‑profile installation around counters and service windows. The DL102 accepts line‑level or microphone inputs, features a constant‑current amplifier design with thermal and short‑circuit protection, and operates from a 12V DC, 1.5A power supply for dependable daily use. With low distortion (0.5% THD) and a compact footprint, it integrates seamlessly into reception, security, surveillance and monitoring environments where clear verbal communication is essential. Ideal for banks, airports, retail and public service counters—install a DL 102 SY1 to improve customer experience and ADA compliance. Contact your sales representative to specify and deploy this assistive listening solution.

Features

  • Improves customer communication at service counters and reception desks by delivering clear T‑coil audio directly into hearing aids
  • Includes 120' loop wire (PLW 037) and PLM 001 loop mat for fast, low‑profile installation at teller and security stations
  • Compact, discreet design fits under counters or behind monitors for a professional, unobtrusive assistive listening solution
  • Easy integration with microphones or line‑level sources — supports mic or 3.5 mm/line inputs for flexible audio routing
  • Reliable constant‑current amplifier with thermal, short‑circuit and start protection plus 12V DC (1.5A) power for stable performance
General Information
Brand Name Williams AV
Manufacturer Williams AV, LLC
Product Name Counter Loop System
Product Type Amplifier
Product Model DL 102 SY1
Manufacturer Part Number DL102 SY1
Audio
Total Harmonic Distortion (THD) 0.5%
Certifications
TAA Compliant No
Physical Characteristics
Color Black
Depth 2.3"
Width 3.9"
Height 1"
Weight 7.68oz
Power Description
Input Voltage 120V AC, 12V DC, 230V AC
Warranty
Limited Warranty 2-Year
Miscellaneous
Features Compact, Discreet Design, Easy Operation, Low Maintenance
