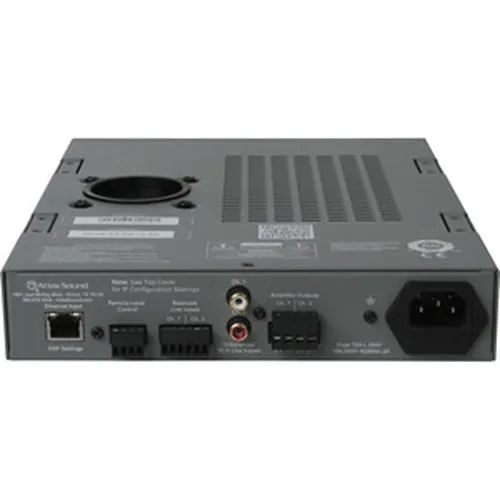

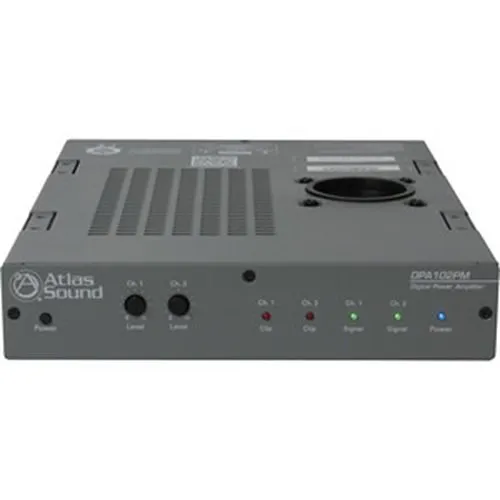

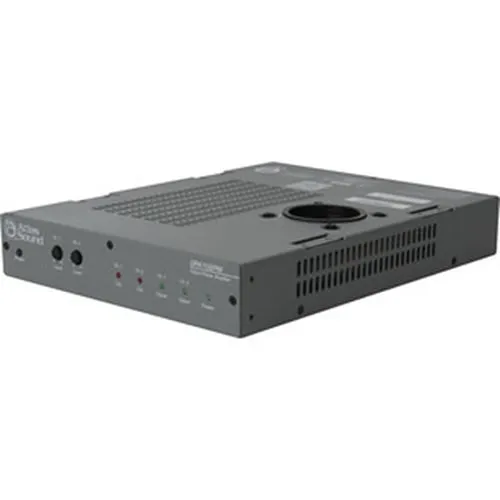

AtlasIED DPA-102PM 2-Channel 100W 4O Networkable Pole Mount Power Amplifier
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 4
Key Features
- Networkable control and remote monitoring: manage DSP, levels and status over Ethernet to reduce site visits and simplify maintenance.
- Integrated DSP and secure presets: onboard EQ, limiters, filters and password-protected level controls let integrators tailor audio for paging, surveillance, or AV while preventing tampering.
- Pole-mount, space-saving design: installs discreetly on projector or light poles to provide centralized audio for security, paging and distributed systems.
- High-efficiency Class-D power: 2 x 100W output at 4 ohms delivers reliable coverage and clear speech intelligibility for monitoring and life-safety applications.
- Flexible connectivity: balanced/unbalanced inputs, audio sense turn-on and network auto-discovery speed up installation and system integration.
Quick Specifications
- Product Model
- DPA-102PM
- Brand Name
- AtlasIED
- Product Line
- Amps/Attenuator
- Product Name
- DPA-102PM Networkable 2-Channel Power Amplifier
Product Information Tabs
Overview
Deliver consistent, controllable audio for security, surveillance and commercial AV with the AtlasIED DPA-102PM networkable pole-mount power amplifier. This 2-channel, 100W per channel Class-D amplifier combines efficient power with full DSP—EQ, limiters, high/low pass filters and delays—to optimize speech intelligibility for paging, monitoring and distributed audio. Ethernet connectivity and an embedded web server provide remote monitoring of output levels and status, reducing service calls and enabling centralized control across multiple sites. With a 20 Hz–20 kHz frequency response and 2 x 100W RMS into 4 ohms, the DPA-102PM delivers clean, dependable audio for security consoles, surveillance suites, retail or campus paging. Installers benefit from pole-mount hardware and network auto-discovery tools for fast setup, while security features like password protection and assignable level controls prevent unauthorized changes. ENERGY STAR efficiency, convection cooling and wide AC input (110/220V) make it practical for varied deployments. Specify the AtlasIED DPA-102PM for your next security or AV project—contact sales to order or to discuss system integration and deployment.
Features
- Networkable control and remote monitoring: manage DSP, levels and status over Ethernet to reduce site visits and simplify maintenance.
- Integrated DSP and secure presets: onboard EQ, limiters, filters and password-protected level controls let integrators tailor audio for paging, surveillance, or AV while preventing tampering.
- Pole-mount, space-saving design: installs discreetly on projector or light poles to provide centralized audio for security, paging and distributed systems.
- High-efficiency Class-D power: 2 x 100W output at 4 ohms delivers reliable coverage and clear speech intelligibility for monitoring and life-safety applications.
- Flexible connectivity: balanced/unbalanced inputs, audio sense turn-on and network auto-discovery speed up installation and system integration.
| General Information | |
|---|---|
| Brand Name | AtlasIED |
| Manufacturer | AtlasIED |
| Product Line | Amps/Attenuator |
| Product Name | DPA-102PM Networkable 2-Channel Power Amplifier |
| Product Type | Amplifier |
| Product Model | DPA-102PM |
| Product Series | DPA |
| Manufacturer Part Number | DPA-102PM |
| Technical Information | |
| Impedance | 4 ohms |
| Audio Channels | 2 |
| Audio | |
| RMS Output Power | 200W |
| Maximum Frequency Response | 20 kHz |
| Minimum Frequency Response | 20Hz |
| Total Harmonic Distortion (THD) | 0.2% |
| Certifications | |
| Energy Star | Yes |
| TAA Compliant | No |
| NDAA Compliant | Yes |
| Energy & Performance | |
| Operating Power Consumption | 12.50W |
| Interfaces/Ports | |
| Number of Audio Inputs | 2 |
| Network & Communication | |
| Ethernet | Yes |
| Physical Characteristics | |
| Color | Gray |
| Depth | 13.5" |
| Width | 8.5" |
| Height | 1.8" |
| Weight | 4.90lb |
| Power Description | |
| Input Voltage | 110V AC, 220V AC |
| Warranty | |
| Limited Warranty | 36-Month |
| Miscellaneous | |
| Features | Assignable Level Controls with Security, Audio Sense On/Off, Balanced and Unbalanced Inputs, Class-D Amplifier Technology 2 x 100W, Convection Cooled, Ethernet Network Connectivity, Fully Configurable DSP Signal Processing, iPhone, iPad, Android Compatible, No Computer Required to Use, Remote Monitoring of Status and Levels |
| Environmentally Friendly | Yes |
| Environmental Certification | ENERGY STAR |
