AtlasIED DPA1202 Channel1200W Networkable Multi-Channel Power Amplifier with Optional Dante Network Audio

SKU: DPA1202 AtlasIED

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

Atlas Sound DPA1202 Amplifier - 1200 W RMS - 4 Channel

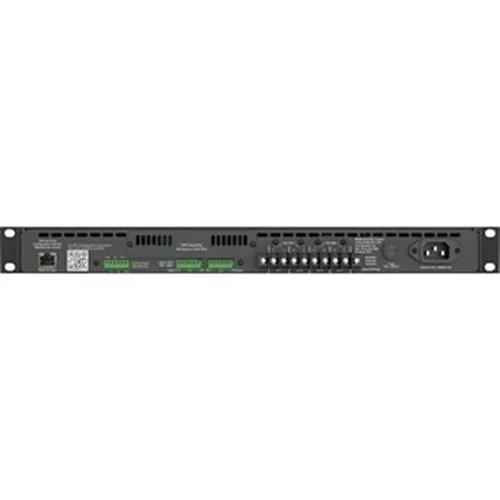

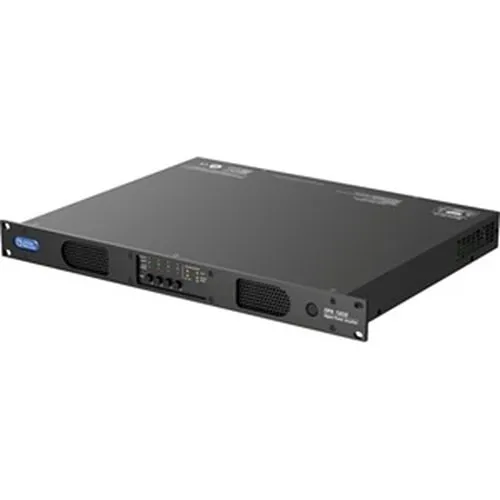

Product images for AtlasIED DPA1202 Channel1200W Networkable Multi-Channel Power Amplifier with Optional Dante Network Audio. 3 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Flexible amplification modes (2-channel 70.7V, 4-channel 4Ω, or hybrid 70.7V + 2×4Ω) to support foreground/background, paging and distributed audio
  • Networkable DSP control and Site Manager auto-discovery for remote monitoring, fault reporting and centralized management
  • Built-in EQ, limiters, HP/LP filters and delay for precise tuning to rooms, zones and security/monitoring environments
  • Optional Dante™ or mic/aux accessory card expands inputs for VoIP, paging consoles, surveillance audio and system integration
  • 1200W total power across four channels delivers reliable coverage for commercial, retail, education and security installations
  • Assignable user controls, front-panel or GUI level control, and triggerable mute/auto-sense simplify operator access and system automation

Quick Specifications

Product Model
DPA1202
Brand Name
AtlasIED
Product Line
Amps/Attenuator
Product Name
DPA1202 Multi-Channel Network Amplifier
View Full Technical Specifications

Explore the details

Product information

DPA1202

Overview

Deliver consistent, networked audio to paging, background music and security environments with the AtlasIED DPA1202 networkable pro amplifier. This 4-channel amplifier provides versatile deployment options — factory-configured as a 2-channel 70.7V unit or reconfigured as 4×4Ω channels, or a hybrid 70V + 2×4Ω layout — so integrators can support distributed paging and foreground stereo from a single rack unit. With 1200W total RMS output and onboard DSP, the DPA1202 lets you tune zones using EQ, limiters, high/low-pass filters and time delay for intelligible voice paging and clean monitored audio in surveillance and monitoring systems. Network-first features include an onboard GUI, Site Manager auto-discovery, remote fault reporting and scheduler control for centralized management across multiple sites. Add the optional DPA-DAC4 Dante receiver or mic/aux card to extend inputs for VoIP, consoles or security audio streams. Rugged 1U rack design, assignable user pages and multiple points of control make the DPA1202 ideal for commercial, retail, education and security AV deployments. Contact us to specify your configuration or deploy the DPA1202 in your next paging, surveillance or monitoring project.

Features

  • Flexible amplification modes (2-channel 70.7V, 4-channel 4Ω, or hybrid 70.7V + 2×4Ω) to support foreground/background, paging and distributed audio
  • Networkable DSP control and Site Manager auto-discovery for remote monitoring, fault reporting and centralized management
  • Built-in EQ, limiters, HP/LP filters and delay for precise tuning to rooms, zones and security/monitoring environments
  • Optional Dante™ or mic/aux accessory card expands inputs for VoIP, paging consoles, surveillance audio and system integration
  • 1200W total power across four channels delivers reliable coverage for commercial, retail, education and security installations
  • Assignable user controls, front-panel or GUI level control, and triggerable mute/auto-sense simplify operator access and system automation
29 of 29 specifications
Technical specifications for AtlasIED DPA1202 Channel1200W Networkable Multi-Channel Power Amplifier with Optional Dante Network Audio
General Information
Brand Name AtlasIED
Manufacturer AtlasIED
Product Line Amps/Attenuator
Product Name DPA1202 Multi-Channel Network Amplifier
Product Type Amplifier
Product Model DPA1202
Product Series DPA
Country of Origin CN
Manufacturer Part Number DPA1202
Technical Information
Impedance 4.00O
Audio Channels 4
Classification AB
Audio
Maximum Frequency Response 20.0kHz
Minimum Frequency Response 20.0000Hz
Total Harmonic Distortion (THD) 0.5% – 1%
Certifications
Energy Star Yes
TAA Compliant No
NDAA Compliant Yes
Energy & Performance
Operating Power Consumption 1713.00W
Network & Communication
Ethernet Yes
Physical Characteristics
Depth 14.50"
Width 19.00"
Height 1.80"
Weight 13.00lb
Power Description
Input Voltage 120V AC, 230V AC
Warranty
Limited Warranty 3-Year
Miscellaneous
Features 1 RU Rackmount Unit, 1200W into 70V, 100V and 4 Ohms, Card Slot for Dante or Additional Inputs, Foreground / Background and User Paging, Multi-Channel Operation, Multiple Points of Control, Network-Based for Remote Monitoring, On-Board DSP with EQ, Limiter and Filters, PC, iOS and Android Compatible
Environmentally Friendly Yes
Environmental Certification RoHS
