AtlasIED DPA2402 2400W Networkable Multi-Channel Power Amplifier with Optional Dante Network Audio

SKU: DPA2402 AtlasIED

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

Atlas Sound DPA2402 Amplifier - 2000 W RMS - 4 Channel

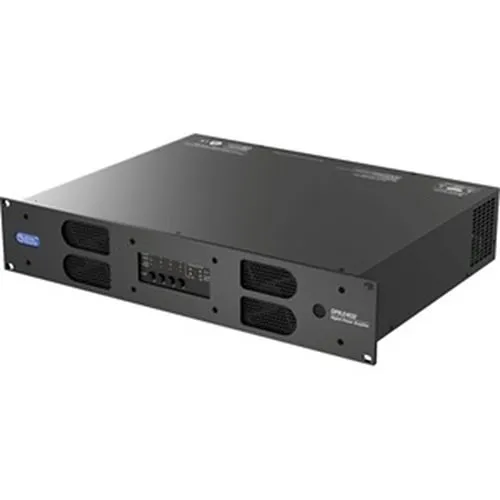

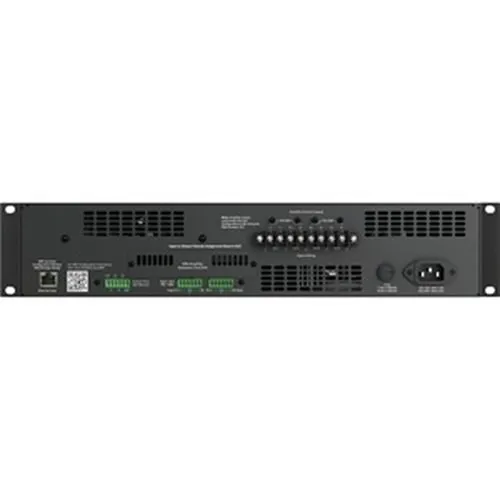

Product images for AtlasIED DPA2402 2400W Networkable Multi-Channel Power Amplifier with Optional Dante Network Audio. 3 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Deliver consistent coverage and intelligible paging across large facilities with 2400W total power and configurable 70V/100V/4Ω outputs
  • Simplify system design by routing and mixing any of eight inputs to any of four amplifier channels using onboard DSP for tailored foreground, background and paging audio
  • Maintain centralized control and monitoring with network management, web-based GUI and optional Dante networking for seamless integration into AV, security and surveillance systems
  • Protect speech and music with built-in limiters, EQ, filters and delay to optimize intelligibility in lobbies, classrooms and control rooms
  • Provide easy end-user control and scheduling with remote level controls, assignable mutes and DPA Site Manager for fault reporting and remote activation

Quick Specifications

Product Model
DPA2402
Brand Name
AtlasIED
Product Line
Amps/Attenuator
Product Name
DPA2402 Multi-Channel Network Amplifier
View Full Technical Specifications

Explore the details

Product information

DPA2402

Overview

For integrators who need reliable, networked power and precise control, the AtlasIED DPA2402 multi-channel network amplifier delivers professional audio for paging, background music and security monitoring. This AtlasIED pro amplifier provides 2400W total output across four channels and can be configured for 70V/100V line outputs or low-impedance 4Ω loads, giving you flexibility for mixed-use installations. Onboard DSP gives installers access to EQ, high/low pass filters, delay and limiters, so voice announcements and surveillance audio remain clear and intelligible in challenging acoustic environments. The DPA2402 includes four balanced inputs plus an accessory slot for an optional Dante receiver card or additional mic/line inputs, enabling easy integration with IP audio, monitoring systems and AV networks. Network-based management, a web GUI and DPA Site Manager simplify remote monitoring, fault reporting and scheduled activation—critical for security, surveillance and enterprise deployments. Ideal for schools, retail, government and corporate sites requiring dependable paging and monitoring, the DPA2402 is a flexible foundation for your next project—contact us to configure or request a quote.

Features

  • Deliver consistent coverage and intelligible paging across large facilities with 2400W total power and configurable 70V/100V/4Ω outputs
  • Simplify system design by routing and mixing any of eight inputs to any of four amplifier channels using onboard DSP for tailored foreground, background and paging audio
  • Maintain centralized control and monitoring with network management, web-based GUI and optional Dante networking for seamless integration into AV, security and surveillance systems
  • Protect speech and music with built-in limiters, EQ, filters and delay to optimize intelligibility in lobbies, classrooms and control rooms
  • Provide easy end-user control and scheduling with remote level controls, assignable mutes and DPA Site Manager for fault reporting and remote activation
29 of 29 specifications
Technical specifications for AtlasIED DPA2402 2400W Networkable Multi-Channel Power Amplifier with Optional Dante Network Audio
General Information
Brand Name AtlasIED
Manufacturer AtlasIED
Product Line Amps/Attenuator
Product Name DPA2402 Multi-Channel Network Amplifier
Product Type Amplifier
Product Model DPA2402
Product Series DPA
Manufacturer Part Number DPA2402
Technical Information
Impedance 4 ohms
Audio Channels 4
Classification AB
Audio
RMS Output Power 2400W
Maximum Frequency Response 20 kHz
Minimum Frequency Response 20Hz
Total Harmonic Distortion (THD) 1%
Certifications
TAA Compliant No
NDAA Compliant Yes
Energy & Performance
Operating Power Consumption 26W
Network & Communication
Ethernet Yes
Physical Characteristics
Depth 14.5"
Width 19"
Height 3.5"
Weight 20.80 lb
Power Description
Input Voltage 120V AC, 230V AC
Warranty
Limited Warranty 36-Month
Miscellaneous
Features 2 RU Rackmount Unit, 2400W into 70V, 100V and 4 Ohms, Card Slot for Dante or Additional Inputs, Foreground / Background and User Paging, Multi-Channel Operation, Multiple Points of Control, Network-Based for Remote Monitoring, On-Board DSP with EQ, Limiter and Filters, PC, iOS and Android Compatible
Country of Origin CN
Environmentally Friendly Yes
Environmental Certification RoHS
