AtlasIED DPA404 4-Channel Amplifier, 200W RMS

SKU: DPA404 AtlasIED

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

Atlas Sound DPA404 Amplifier - 200 W RMS - 4 Channel

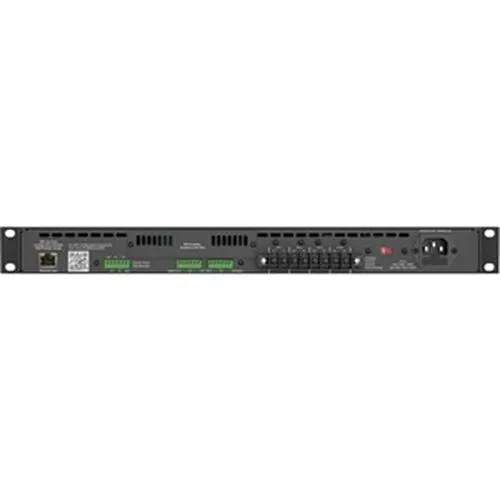

Product images for AtlasIED DPA404 4-Channel Amplifier, 200W RMS. 2 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Flexible multi-mode amplification (70.7V/100V/8Ω/4Ω) so one amplifier supports paging, background music and foreground stereo without extra equipment
  • Networked DSP control and monitoring via Ethernet for remote configuration, level metering, fault reporting and system scheduling — simplifies maintenance
  • Expandable I/O with optional Dante or mic/aux accessory cards to integrate with IP audio, security systems and surveillance monitoring
  • Assignable front-panel, GUI or wired-remote level control and mute options for simplified end-user operation and secure deployments
  • Four channels of 200W RMS total power with onboard EQ, limiters and delay to ensure reliable, consistent audio performance in commercial environments
  • Compact 1U rack design and RoHS compliance for space-saving installations and environmentally conscious projects

Quick Specifications

Product Model
DPA404
Brand Name
AtlasIED
Product Line
Amps/Attenuator
Product Name
DPA404 Multi-Channel Network Amplifier
View Full Technical Specifications

Explore the details

Product information

DPA404

Overview

Deliver consistent, controllable audio across security, AV and commercial environments with the AtlasIED DPA404 4-channel 200W RMS pro amplifier. Purpose-built for installers and system integrators, this network-enabled amplifier combines DSP processing, flexible 70.7V/100V or low-impedance operation, and remote management to support paging, background music, and mission-critical surveillance or monitoring audio paths. The DPA404’s four channels let you mix and route up to eight inputs (with optional accessory cards) while onboard EQ, limiters and delays provide VOIP, mic and line optimization to protect speech intelligibility in security and public-address applications. With Ethernet control, PC/iOS/Android compatibility and DPA Site Manager support, technicians can provision, meter and troubleshoot systems remotely—reducing site visits and downtime. Compact 1U rack mounting, dual-voltage power and NDAA compliance make the DPA404 an ideal choice for schools, corporate campuses, retail, and critical infrastructure projects. Specify the AtlasIED DPA404 for your next paging, monitoring or AV/security integration and experience simplified deployment and dependable audio performance.

Features

  • Flexible multi-mode amplification (70.7V/100V/8Ω/4Ω) so one amplifier supports paging, background music and foreground stereo without extra equipment
  • Networked DSP control and monitoring via Ethernet for remote configuration, level metering, fault reporting and system scheduling — simplifies maintenance
  • Expandable I/O with optional Dante or mic/aux accessory cards to integrate with IP audio, security systems and surveillance monitoring
  • Assignable front-panel, GUI or wired-remote level control and mute options for simplified end-user operation and secure deployments
  • Four channels of 200W RMS total power with onboard EQ, limiters and delay to ensure reliable, consistent audio performance in commercial environments
  • Compact 1U rack design and RoHS compliance for space-saving installations and environmentally conscious projects
28 of 28 specifications
Technical specifications for AtlasIED DPA404 4-Channel Amplifier, 200W RMS
General Information
Brand Name AtlasIED
Manufacturer AtlasIED
Product Line Amps/Attenuator
Product Name DPA404 Multi-Channel Network Amplifier
Product Type Amplifier
Product Model DPA404
Product Series DPA
Manufacturer Part Number DPA404
Technical Information
Bluetooth No
Impedance 4 ohms
Audio Channels 4
Classification AB
Audio
RMS Output Power 200W
Maximum Frequency Response 20 kHz
Minimum Frequency Response 20Hz
Total Harmonic Distortion (THD) 1%
Certifications
TAA Compliant No
NDAA Compliant Yes
Energy & Performance
Operating Power Consumption 710W
Network & Communication
Ethernet Yes
Physical Characteristics
Depth 15.5"
Width 19"
Height 1.8"
Weight 13 lb
Power Description
Input Voltage 120V AC, 230V AC
Warranty
Limited Warranty 3-Year
Miscellaneous
Environmentally Friendly Yes
Environmental Certification RoHS
