AtlasIED DPA602 600W Networkable Multi-Channel Power Amplifier with Optional Dante Network Audio

SKU: DPA602 AtlasIED

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

Atlas Sound DPA602 Amplifier - 600 W RMS - 4 Channel

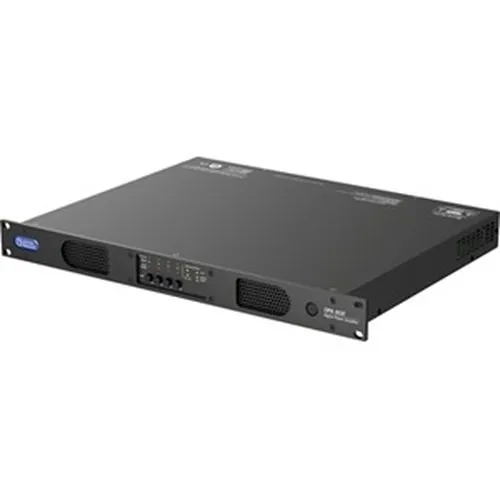

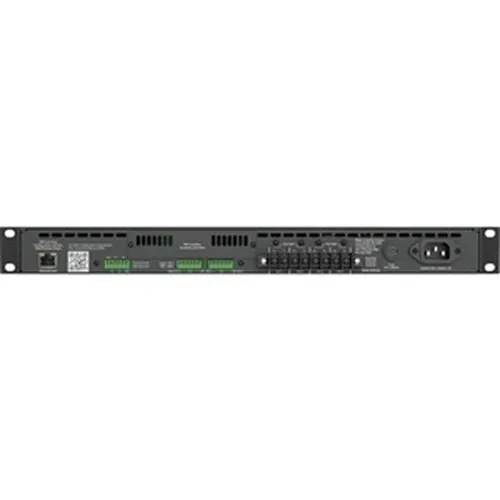

Product images for AtlasIED DPA602 600W Networkable Multi-Channel Power Amplifier with Optional Dante Network Audio. 3 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Flexible multi-zone amplification: configure as 4-channel, dual-stereo zones or mixed 70.7V/100V and 4Ω outputs to support paging, foreground and background audio.
  • Networked monitoring & control: Ethernet/web GUI and Site Manager allow remote status, scheduling and fault reporting for simplified system maintenance.
  • Tuned, intelligible sound: on-board DSP (EQ, limiters, HP/LP filters and delay) delivers clear speech for paging, security and surveillance applications.
  • Dante-ready expandability: optional DPA-DAC4 Dante card enables low-latency network audio distribution and easy integration with AV-over-IP systems.
  • High power density in 1RU: 600W total output across four channels reduces rack space and supports commercial installations with reliable power.
  • Multiple user control points: front-panel, wired remote, contact closures and password-protected settings provide secure local and remote operation.

Quick Specifications

Product Model
DPA602
Brand Name
AtlasIED
Product Line
Amps/Attenuator
Product Name
DPA602 Multi-Channel Network Amplifier
View Full Technical Specifications

Explore the details

Product information

DPA602

Overview

Designed for commercial AV, paging and security systems, the AtlasIED DPA602 multi-channel network amplifier puts flexible, controllable power where you need it most. This AtlasIED pro amplifier delivers 600W total power across four configurable channels and supports 70.7V/100V and 4Ω loads so installers can easily mix background music, foreground stereo zones and paging for security or surveillance monitoring. Built-in DSP tools—EQ, limiters, high/low-pass filters and delay—allow you to optimize intelligibility for voice evacuation, paging and monitoring stations while protecting speakers and networks. When network connectivity is required, the DPA602 offers Ethernet-based remote monitoring, web GUI access and Site Manager visibility; add the optional Dante receiver card for native network audio routing and simplified system design. Rack-friendly 1RU packaging and multiple control options (front panel, wired remote, contact closure) make deployment fast and secure. Ideal for corporate, education, healthcare and security-focused AV projects—contact our sales team to spec the DPA602 for your next installation.

Features

  • Flexible multi-zone amplification: configure as 4-channel, dual-stereo zones or mixed 70.7V/100V and 4Ω outputs to support paging, foreground and background audio.
  • Networked monitoring & control: Ethernet/web GUI and Site Manager allow remote status, scheduling and fault reporting for simplified system maintenance.
  • Tuned, intelligible sound: on-board DSP (EQ, limiters, HP/LP filters and delay) delivers clear speech for paging, security and surveillance applications.
  • Dante-ready expandability: optional DPA-DAC4 Dante card enables low-latency network audio distribution and easy integration with AV-over-IP systems.
  • High power density in 1RU: 600W total output across four channels reduces rack space and supports commercial installations with reliable power.
  • Multiple user control points: front-panel, wired remote, contact closures and password-protected settings provide secure local and remote operation.
28 of 28 specifications
Technical specifications for AtlasIED DPA602 600W Networkable Multi-Channel Power Amplifier with Optional Dante Network Audio
General Information
Brand Name AtlasIED
Manufacturer AtlasIED
Product Line Amps/Attenuator
Product Name DPA602 Multi-Channel Network Amplifier
Product Type Amplifier
Product Model DPA602
Product Series DPA
Manufacturer Part Number DPA602
Technical Information
Impedance 4 ohms
Audio Channels 4
Classification AB
Audio
RMS Output Power 600W
Maximum Frequency Response 20 kHz
Minimum Frequency Response 20Hz
Total Harmonic Distortion (THD) 1%
Certifications
TAA Compliant No
NDAA Compliant Yes
Network & Communication
Ethernet Yes
Physical Characteristics
Color Black
Depth 14.5"
Width 19"
Height 1.7"
Weight 13 lb
Warranty
Limited Warranty 3-Year
Miscellaneous
Features 1 RU Rackmount Unit, 600W into 70V, 100V and 4 Ohms, Card Slot for Dante or Additional Inputs, Foreground / Background and User Paging, Multi-Channel Operation, Multiple Points of Control, Network-Based for Remote Monitoring, On-Board DSP with EQ, Limiter and Filters, PC, iOS and Android Compatible
Country of Origin CN
Environmentally Friendly Yes
Environmental Certification RoHS
