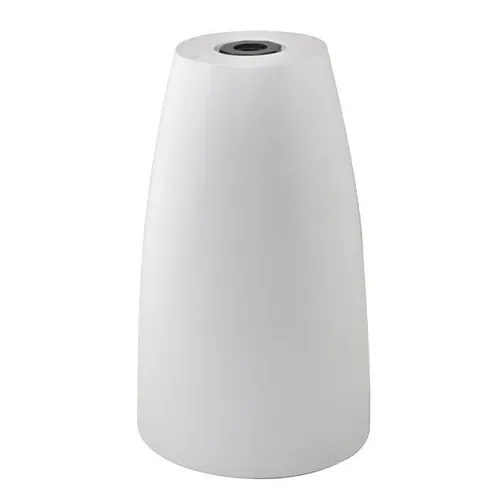

SoundTube DS31-EZ-TS-WH Tapered Designer Sleeve Complete Speaker, White
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 2
Key Features
- Consistent, intelligible coverage across the room with BroadBeam waveguide — improves speech clarity for paging, security and monitoring
- Fast, blind-mount installation and fixed-wing hardware save labor time on ceiling installs (0.25"–1.91" thickness)
- Flexible six-position tap switch for 25/70.7/100V systems or transformer bypass — simplifies integration with existing PA and surveillance audio networks
- High sensitivity (86.5 dB) and 30W RMS handling reduce amplifier requirements and overall system cost
- Tool-free magnetic grille and paintable bezel with integrated safety cable for clean aesthetics and secure, maintenance-free installs
- UL 1480 and 2043 approvals for code-compliant use in security, surveillance and commercial environments
Quick Specifications
- Product Model
- DS31-EZ-TS-WH
- Brand Name
- SoundTube
- Product Name
- Tapered Designer Sleeve in White - Complete Speaker
- Product Type
- Speaker
Explore the details
Product information
DS31-EZ-TS-WH
Overview
Deliver clear, reliable audio for security, surveillance and paging with the SoundTube DS31-EZ-TS-WH Tapered Designer Sleeve Complete Speaker. Designed for commercial installations that demand speech intelligibility, the DS31 combines a 5.25" polypropylene woofer and 1.0" titanium tweeter with patented BroadBeam waveguide technology to provide consistent, edge-to-edge coverage and maximum intelligibility. With 30W RMS power handling, an average sensitivity of 86.5 dB and a frequency range down to 80 Hz and up to 20 kHz, it balances voice clarity with full-range performance for monitoring rooms, retail security, and public-address applications.
Installers will appreciate the rapid blind-mount, fixed-wing mechanism that secures to ceilings from 0.25" to 1.91" and the six-position selectable tap switch for seamless 25/70.7/100V integration. The tool-free magnetic grille and paintable bezel with integrated safety cable provide a clean finished look and quick maintenance access. UL 1480 (UEAY) and 2043 approvals ensure code compliance for commercial security and surveillance deployments. Ideal for integrators specifying ceiling speakers for monitoring, paging and background audio—order the SoundTube DS31-EZ-TS-WH today to streamline installs and enhance system intelligibility.
Features
- Consistent, intelligible coverage across the room with BroadBeam waveguide — improves speech clarity for paging, security and monitoring
- Fast, blind-mount installation and fixed-wing hardware save labor time on ceiling installs (0.25"–1.91" thickness)
- Flexible six-position tap switch for 25/70.7/100V systems or transformer bypass — simplifies integration with existing PA and surveillance audio networks
- High sensitivity (86.5 dB) and 30W RMS handling reduce amplifier requirements and overall system cost
- Tool-free magnetic grille and paintable bezel with integrated safety cable for clean aesthetics and secure, maintenance-free installs
- UL 1480 and 2043 approvals for code-compliant use in security, surveillance and commercial environments
| General Information | |
|---|---|
| Brand Name | SoundTube |
| Manufacturer | SoundTube |
| Product Name | Tapered Designer Sleeve in White - Complete Speaker |
| Product Type | Speaker |
| Country of Origin | CN |
| Manufacturer Part Number | DS31-EZ-TS-WH |
| Audio | |
| RMS Output Power | 30.0000W |
| Maximum Frequency Response | 20.0kHz |
| Minimum Frequency Response | 80.0000Hz |
| Physical Characteristics | |
| Color | White |
| Height | 8.25" |
