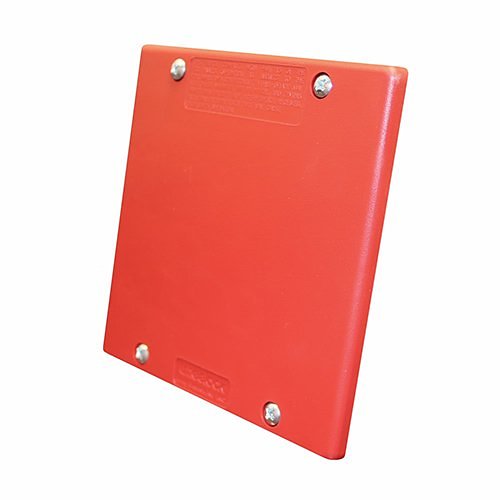

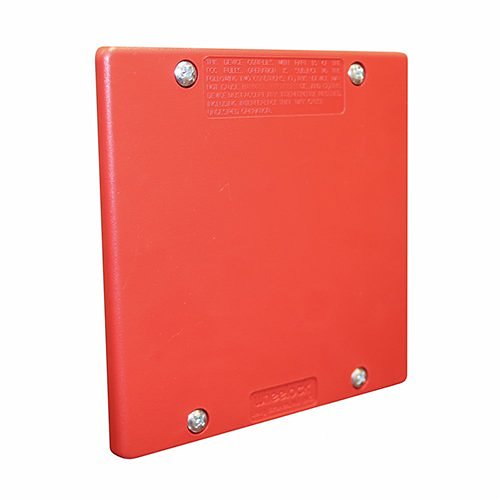

Eaton DSM-12/24-R Wall Mounted 12/24V Wheelock DSM Sync Module, Red

Streamline synchronization and simplify wiring for your life-safety systems with the Eaton DSM-12/24-R Wall Mounted 12/24V Wheelock DSM Sync Module. This Eaton control panel module converts independent audible and strobe inputs into a single, synchronized output so horns and strobes operate in unison while allowing the horn to be silenced independently of the strobe. Designed for 12/24V DC systems, the DSM-12/24-R supports up to 3 A per circuit and offers dual-output flexibility—controlling either one Class A circuit or two Class B NAC circuits—making it adaptable to a wide range of fire alarm control panels.

Built for installers and system integrators, the module reduces installation time, minimizes wiring errors, and helps ensure NFPA-72 temporal (code 3) compliance when paired with Wheelock appliances. Its wall-mount red enclosure and low operating current make it a practical choice for commercial, industrial, and institutional environments where security, surveillance, and monitoring systems must interface seamlessly with fire alarm notification appliances. Ideal for retrofit and new-construction projects—add the Eaton DSM-12/24-R to your specification or contact your Eaton representative to integrate it into your system today.

• Simplifies installation by converting separate audible and strobe inputs into a single synchronized output, reducing wiring complexity and labor costs.
• Ensures NFPA-72 temporal pattern compliance with synchronized horn and strobe operation for reliable life-safety signaling.
• Dual-output flexibility supports one Class A or two Class B NAC circuits, enabling use across diverse fire alarm topologies.
• Robust performance with 3 A per circuit handling at 12/24V DC and low operating current for dependable integration with Wheelock appliances.
• Wall-mounted, red housing and a 3-year limited warranty deliver long-term reliability for fire alarm, security, surveillance, and monitoring applications.
