Leviton DT160-1LW 15A Single-Pole Decora Timer 5-Key 10/20/30/60 Minutes, White
Image of 10
Key Features
- Prevents wasted energy and unattended fixtures with four preset countdowns (10/20/30/60 min) and a dedicated Off button
- Reliable control for lights and fans: 15A, 120V rating compatible with up to 600W LED/CFL or 1800W incandescent loads

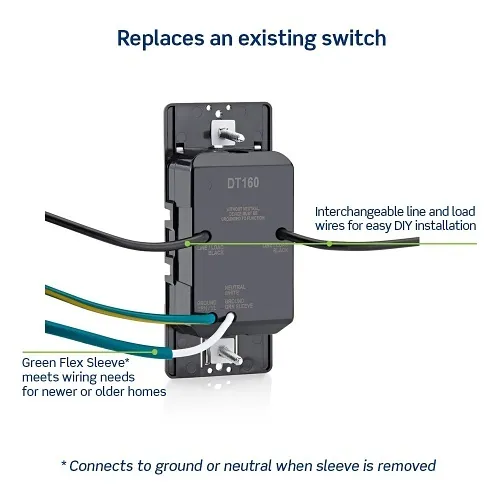

- Simplified installation and retrofit-friendly: shallow design, works with or without a neutral, and DIY-friendly interchangeable line/load leads
- Manual 24-hour override option and zero-cross turn-on to extend switch and lamp life for high-cycle applications
- Ideal for security lighting and surveillance support—automated time control helps maintain consistent illumination for monitoring and safety
- Durable commercial-grade design with CSA/FCC/IC certifications and a 5-year limited warranty for long-term reliability
Quick Specifications
- Product Model
- DT160-1LW
- Brand Name
- Leviton
- Product Name
- Decora In-Wall 60-Minute Countdown Timer Switch, 15A, ? HP/9.8A Fan/Motor, Single Pole, Decora In-Wall 60-Minute Countdown Timer Switch, 15A, ? HP/9.8A Fan/Motor, Single Pole
- Product Type
- Countdown Timer Switch
Product Information Tabs
Overview
Keep lights and exhaust fans from being left on while improving energy management and site safety with the Leviton DT160-1LW Decora 60-Minute Countdown Timer Switch. This single‑pole, in‑wall timer switch delivers straightforward, repeatable control with five push-button choices (10/20/30/60 minutes plus Off) so staff or tenants can set exact run-times without complex programming. Rated at 15A and 120V, the DT160-1LW supports up to 600W LED/CFL and 1800W incandescent loads, making it suitable for restrooms, mechanical rooms, garages and tenant spaces. The shallow housing and interchangeable black wires simplify retrofit installs, and zero-cross turn-on technology reduces electrical stress for longer component life. For security and surveillance setups, the timer provides consistent lighting windows to support monitoring cameras and perimeter illumination—helping protect assets and comply with site lighting policies. Backed by a 5-year limited warranty and RoHS compliance, this Leviton Decora countdown timer is a practical, cost-saving solution for facility managers and integrators. Add it to your next lighting control or security upgrade—order today or contact sales for bulk pricing.
Features
- Prevents wasted energy and unattended fixtures with four preset countdowns (10/20/30/60 min) and a dedicated Off button
- Reliable control for lights and fans: 15A, 120V rating compatible with up to 600W LED/CFL or 1800W incandescent loads
- Simplified installation and retrofit-friendly: shallow design, works with or without a neutral, and DIY-friendly interchangeable line/load leads
- Manual 24-hour override option and zero-cross turn-on to extend switch and lamp life for high-cycle applications
- Ideal for security lighting and surveillance support—automated time control helps maintain consistent illumination for monitoring and safety
- Durable commercial-grade design with CSA/FCC/IC certifications and a 5-year limited warranty for long-term reliability
| General Information | |
|---|---|
| Brand Name | Leviton |
| Product Name | Decora In-Wall 60-Minute Countdown Timer Switch, 15A, ? HP/9.8A Fan/Motor, Single Pole, Decora In-Wall 60-Minute Countdown Timer Switch, 15A, ? HP/9.8A Fan/Motor, Single Pole |
| Product Type | Countdown Timer Switch |
| Manufacturer Part Number | DT160-1LW |
| Technical Information | |
| Control Type | Push Button |
| Controllable Function | Fan Control, Motor Control |
| Physical Characteristics | |
| Color | White |
| Depth | 1.34" |
| Width | 1.73" |
| Power Description | |
| Power Rating | 1200VA, 1800W, 600W |
| Input Voltage | 120V AC |
| Current Rating | 15A |
| Product Information | |
| Switch Type | Timer Switch |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Country of Origin | CN |
| Certifications & Standards | CSA, FCC, IC |
| Environmental Certification | RoHS |
