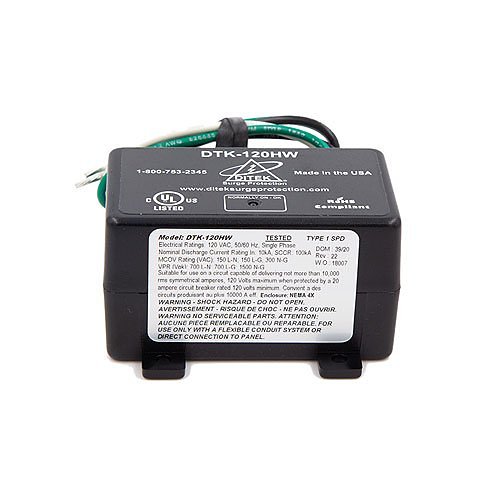

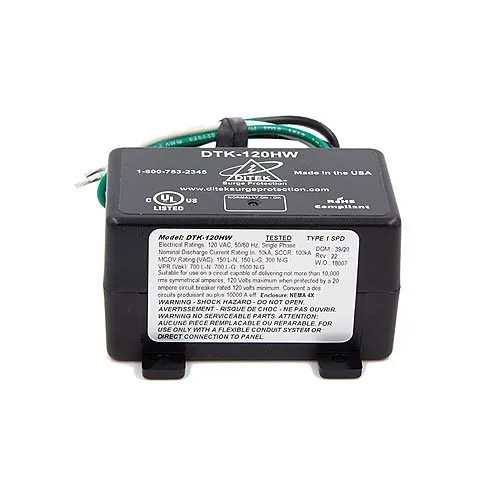

DITEK DTK-120HW 120VAC Surge Protective Device
Image of 2
Key Features
- Protects 120VAC equipment panels and dedicated branch circuits to keep security and surveillance systems online
- Compact parallel-mount design for quick, space-saving installation in panels, enclosures, or field boxes
- NEMA 4X weatherproof housing safeguards electronics in harsh indoor/outdoor environments
- Meets NEC requirements with a 10kA SCCR and approval for 20A breakers to ensure compliant circuit protection
- TAA/NDAA and RoHS compliant with a 10-year limited warranty for long-term reliability and procurement confidence
Quick Specifications
- Product Model
- DTK-120HW
- Sector
- Fire
- Brand Name
- DITEK
- Product Name
- DTK-120HW Surge Suppressor
Explore the details
Product information
DTK-120HW
Overview
Keep critical security, surveillance, and monitoring equipment protected from damaging power surges with the DITEK DTK-120HW 120VAC Surge Protective Device. Designed for 120VAC panels and dedicated branch circuits, this compact surge suppressor delivers reliable spike protection while saving space inside equipment rooms and outdoor enclosures. The DTK-120HW’s NEMA 4X weatherproof enclosure allows deployment in harsh environments, and its parallel-mount design simplifies installation in tight or remote locations. Built to meet code and commercial standards, the unit features a 10kA SCCR rating and is approved for use on 20A circuit breakers, helping integrators and facilities managers meet NEC requirements. TAA/NDAA and RoHS compliance, plus U.S. origin and a 10-year limited warranty, provide added procurement and lifecycle confidence. Ideal for protecting power feeds to video surveillance, access control, intrusion detection, and networking equipment, the DTK-120HW minimizes downtime and replacement costs. Specify the DTK-120HW for robust surge protection — order now to safeguard your security and monitoring systems.
Features
- Protects 120VAC equipment panels and dedicated branch circuits to keep security and surveillance systems online
- Compact parallel-mount design for quick, space-saving installation in panels, enclosures, or field boxes
- NEMA 4X weatherproof housing safeguards electronics in harsh indoor/outdoor environments
- Meets NEC requirements with a 10kA SCCR and approval for 20A breakers to ensure compliant circuit protection
- TAA/NDAA and RoHS compliant with a 10-year limited warranty for long-term reliability and procurement confidence
| General Information | |
|---|---|
| Sector | Fire |
| Brand Name | DITEK |
| Manufacturer | DITEK Corporation |
| Product Name | DTK-120HW Surge Suppressor |
| Product Type | Surge Suppressor/Protector |
| Product Model | DTK-120HW |
| Product Series | HW |
| Country of Origin | US |
| Manufacturer Part Number | DTK-120HW |
| Technical Information | |
| Output Voltage | 120V AC |
| Certifications | |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Environmental Conditions | |
| Operating Temperature (T-T) | -31-176°F |
| Physical Characteristics | |
| Depth | 1.70" |
| Width | 2.80" |
| Height | 2.90" |
| Weight | 8.00oz |
| Power Description | |
| Input Voltage | 120V AC |
| Warranty | |
| Limited Warranty | 10-Year |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
