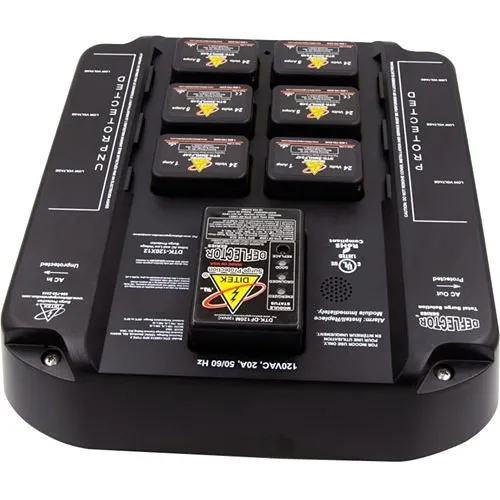

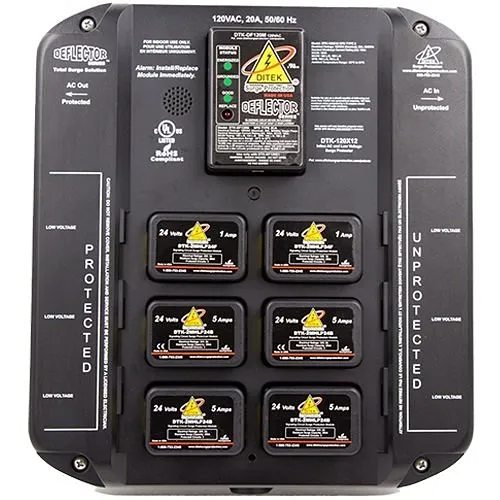

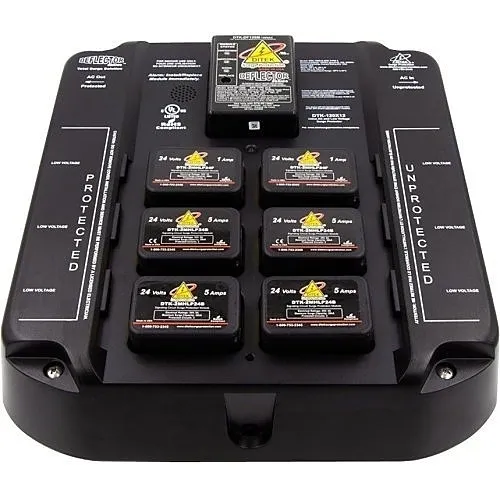

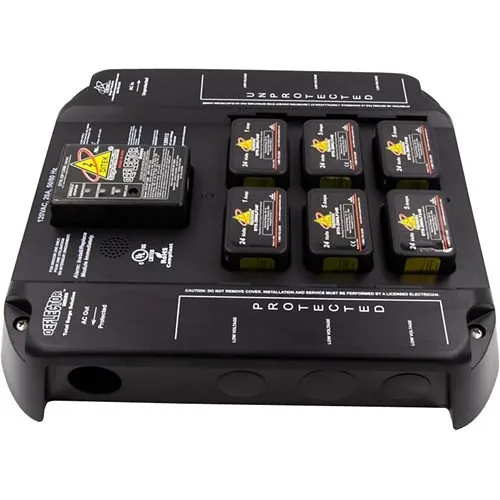

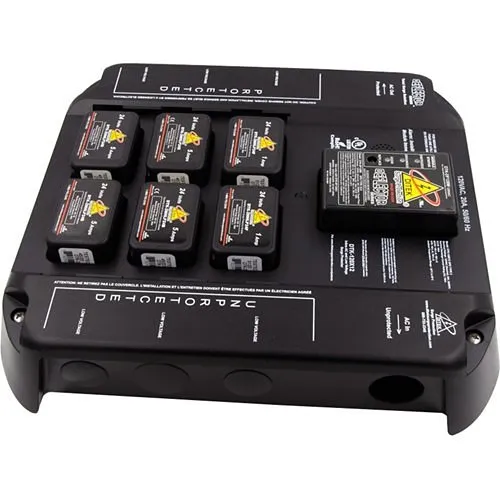

DITEK DTK-120X12 Total Surge Solution for Fire Alarm Systems
Image of 7
Key Features
- Comprehensive protection for 120VAC power and up to 12 pairs of SLC, NAC, IDC/PIV, network or dialer circuits to minimize system downtime
- Visual and audible status with silencing option and Form C dry contacts for remote monitoring and easy integration into security and fire systems
- Modular, replaceable low-voltage modules simplify maintenance and reduce lifecycle costs while allowing installer branding on the removable cover
- UL1449 Type 2 SPD and UL1283 EMI/RFI listings, plus TAA/NDAA compliance, for reliable code-compliant installations in critical monitoring applications
- 10-year limited warranty and US-made construction provide long-term assurance for commercial fire alarm, surveillance and networked monitoring systems
Quick Specifications
- Product Model
- DTK-120X12
- Sector
- Fire
- Brand Name
- DITEK
- Product Name
- DTK-120X12 120VAC & Low Voltage Surge Protective Device
Explore the details
Product information
DTK-120X12
Overview
Protect core fire alarm power and connected signaling circuits with the DITEK DTK-120X12 Total Surge Solution — a purpose-built surge protective device that reduces false alarms, equipment failures and costly downtime in commercial security and life-safety installations. This DITEK surge protection module delivers 120VAC power protection while safeguarding up to twelve pairs of low-voltage circuits (SLC, NAC, IDC/PIV, network or dialer), making it ideal for fire alarm control panels, monitoring equipment, access control and surveillance networks. Built-in visual and audible status indicators, a silencing time-delay switch, and Form C dry contacts enable remote monitoring and fast diagnostics. UL1449 Type 2 SPD and UL1283 EMI/RFI listings, plus TAA/NDAA compliance and a 10-year limited warranty, ensure the DTK-120X12 meets stringent commercial and government requirements. The modular design with replaceable low-voltage modules streamlines service and lowers lifecycle costs. Specify the DITEK DTK-120X12 for reliable surge protection in fire alarm, security, and monitoring applications — order or add it to your next installation design today.
Features
- Comprehensive protection for 120VAC power and up to 12 pairs of SLC, NAC, IDC/PIV, network or dialer circuits to minimize system downtime
- Visual and audible status with silencing option and Form C dry contacts for remote monitoring and easy integration into security and fire systems
- Modular, replaceable low-voltage modules simplify maintenance and reduce lifecycle costs while allowing installer branding on the removable cover
- UL1449 Type 2 SPD and UL1283 EMI/RFI listings, plus TAA/NDAA compliance, for reliable code-compliant installations in critical monitoring applications
- 10-year limited warranty and US-made construction provide long-term assurance for commercial fire alarm, surveillance and networked monitoring systems
| General Information | |
|---|---|
| Sector | Fire |
| Brand Name | DITEK |
| Manufacturer | DITEK Corporation |
| Product Name | DTK-120X12 120VAC & Low Voltage Surge Protective Device |
| Product Type | Surge Protector Module |
| Product Model | DTK-120X12 |
| Product Series | DTK |
| Country of Origin | US |
| Manufacturer Part Number | DTK-120X12 |
| Technical Information | |
| Output Voltage | 120V AC |
| Dataline Protection | Data/Signal |
| Certifications | |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Environmental Conditions | |
| Operating Temperature (T-T) | -4-140°F |
| Physical Characteristics | |
| Width | 10.00" |
| Height | 2.30" |
| Material | ABS |
| Power Description | |
| Input Voltage | 120V AC |
| Warranty | |
| Limited Warranty | 10-Year |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
