Digital Watchdog DWC-B6563WTIR650W Star-Light Plus 5MP UHDoC Bullet Camera, Varifocal Lens, 24V AC, White (Replaces DWC-B6563WTIR650)

SKU: DWC-B6563WTIR650W Digital Watchdog

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

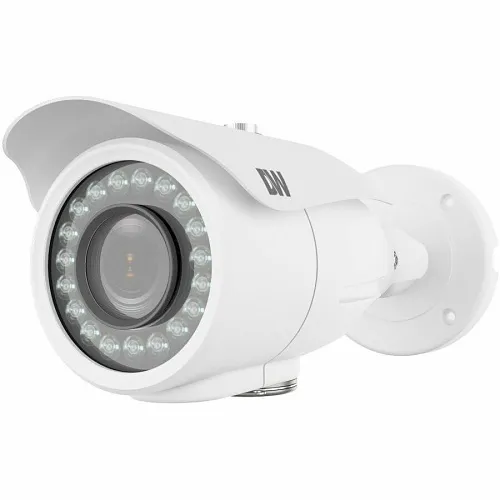

Image of 6K-B6563W65W
Product images for Digital Watchdog DWC-B6563WTIR650W Star-Light Plus 5MP UHDoC Bullet Camera, Varifocal Lens, 24V AC, White (Replaces DWC-B6563WTIR650). 2 image(s) available. Click on image to view full size.

Key Features

  • Capture color detail in near-dark scenes with Star‑Light Plus—improve identification and incident review for 24/7 security monitoring.
  • Long-range 6–50mm varifocal lens lets you zoom from patrol lanes to parking lots without changing cameras, reducing installation time and cost.
  • Universal HD over Coax compatibility (HD‑Analog / HD‑TVI / HD‑CVI) enables affordable upgrades over existing coax infrastructure for fast deployment.
  • Built to withstand outdoor environments with IP66 weatherproof housing and wide operating temperatures—reliable perimeter surveillance year-round.
  • Powerful 150' Smart IR and 5MP resolution deliver clear images at distance for effective evidence capture and remote monitoring on VMS or DVR systems.

Quick Specifications

Product Model
DWC-B6563WTIR650W
Brand Name
Digital Watchdog
Product Line
Star-Light Plus
Product Name
Star-Light Plus 5MP UHDoC bullet camera with a long range vari-focal lens and IR
View Full Technical Specifications

Frequently Bought Together

This Item
Digital Watchdog DWC-B6563WTIR650W Star-Light Plus 5MP UHDoC Bullet Camera, Varifocal Lens, 24V AC, White (Replaces DWC-B6563WTIR650)

Digital Watchdog DWC-B6563WTIR650W Star-Light Plus 5MP UHDoC Bullet Camera, Varifocal Lens, 24V AC, White (Replaces DWC-B6563WTIR650)

$489.64

Frequently Bought Together (5 items)

6 items selected

Total: $1,656.60

Product Information Tabs

Overview

For reliable 24/7 security and remote monitoring in challenging low-light environments, the Digital Watchdog Star‑Light Plus 5MP UHDoC bullet camera delivers clear, actionable video when you need it most. This surveillance camera uses Star‑Light Plus technology to produce color images in near-total darkness and pairs a 5MP sensor with a 6–50mm varifocal lens so integrators can precisely frame and zoom targets across large outdoor areas. The camera supports Universal HD over Coax (HD‑Analog, HD‑TVI, HD‑CVI), letting you upgrade existing coax systems quickly and cost-effectively without ripping out cabling. With 150' Smart IR, IP66-rated aluminum housing, and 24V AC power support, it’s designed for perimeter, parking lot, and facility surveillance in all weather conditions. Smart noise reduction and WDR enhance image clarity for easier identification and reduced storage costs. NDAA-compliant and backed by a 5-year warranty, the DWC-B6563WTIR650W is a dependable choice for enterprise and municipal security projects. Add this Digital Watchdog bullet camera to your next CCTV deployment for improved situational awareness and actionable evidence capture.

Features

  • Capture color detail in near-dark scenes with Star‑Light Plus—improve identification and incident review for 24/7 security monitoring.
  • Long-range 6–50mm varifocal lens lets you zoom from patrol lanes to parking lots without changing cameras, reducing installation time and cost.
  • Universal HD over Coax compatibility (HD‑Analog / HD‑TVI / HD‑CVI) enables affordable upgrades over existing coax infrastructure for fast deployment.
  • Built to withstand outdoor environments with IP66 weatherproof housing and wide operating temperatures—reliable perimeter surveillance year-round.
  • Powerful 150' Smart IR and 5MP resolution deliver clear images at distance for effective evidence capture and remote monitoring on VMS or DVR systems.
General Information
Brand Name Digital Watchdog
Manufacturer Digital Watchdog
Product Line Star-Light Plus
Product Name Star-Light Plus 5MP UHDoC bullet camera with a long range vari-focal lens and IR
Product Type Surveillance Camera
Product Model DWC-B6563WTIR650W
Manufacturer Part Number DWC-B6563WTIR650W
Technical Information
Material Aluminum Die-cast
Lens Type Varifocal
Night Vision Yes
Optical Zoom 8.3x
Programmable Yes
Field of View Horizontal, Vertical
Video Formats H.264, MJPEG
Output Voltage 24V AC
Motion Detection Yes
Night Vision Type Infrared
Maximum Frame Rate 30fps
American Wire Gauge 18AWG
Minimum Focal Length 6mm
Illumination Distance 150'
Connectivity Technology Wired
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 150 ft
Certifications
Ingress Protection Rating IP66
Display & Graphics
Image Sensor Size 1/2.8"
Maximum Video Resolution 2592 x 1944
Environmental Conditions
Operating Humidity 10-90% (Non-condensing)
Operating Temperature (T-T) -4-122°F
Maximum Operating Temperature 122°F (50°C)
Minimum Operating Temperature -4°F (-20°C)
Exposure
Minimum Illumination 0.0 lux (B/W), 0.10 lux (color)
Longest Shutter Speed 1/30 Second
Shortest Shutter Speed 1/30000 Second
Lens
Focus Modes Auto
Focal Length 6-50mm
Lens Included Yes
Maximum Focal Length 50mm
Others
Model Number Replaces DWC-B6563WTIR650
Physical Characteristics
Color White
Weight 1.76lb
Durability Dust Resistant, Waterproof, Weather Resistant
Form Factor Bullet
Power Description
Frequency 50 Hz, 60 Hz
Input Voltage 12V DC, 24V AC
TBD
Amperage 531mA
Video
Maximum Resolution 1280 x 720
Analog Video Signal Format CVBS, HDCVI, HD-TVI
Warranty
Limited Warranty 5-Year
Miscellaneous
Features 2D Digital Noise Reduction (2DNR), Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Digital Wide Dynamic Range (D-WDR), Highlight Compensation (HLC), Noise Reduction, White Balance, Wide Dynamic Range
Certifications CE, FCC, NDAA
Country of Origin VN
Environmentally Friendly Yes
Environmental Certification RoHS
