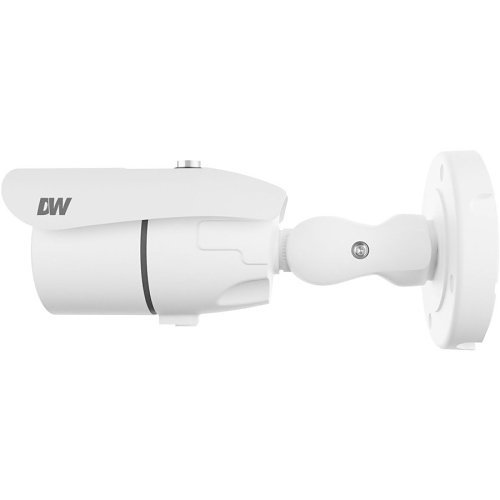

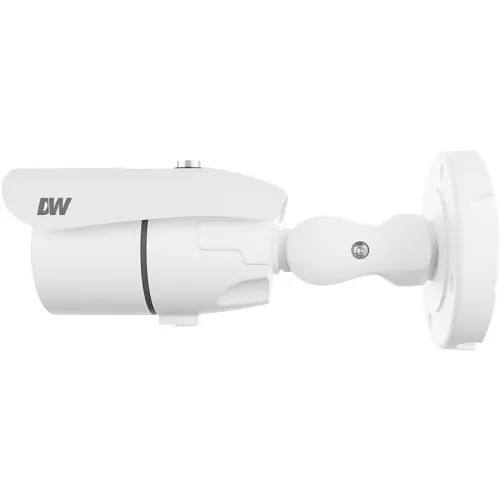

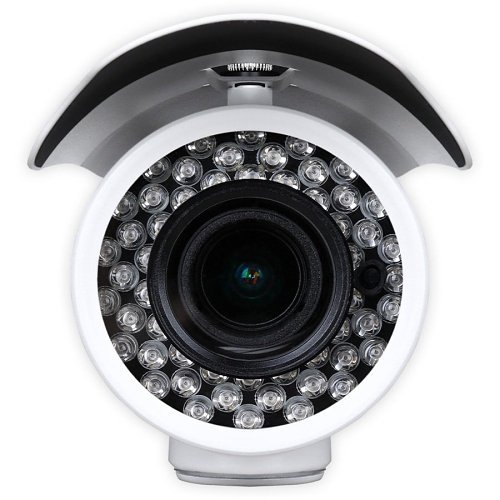

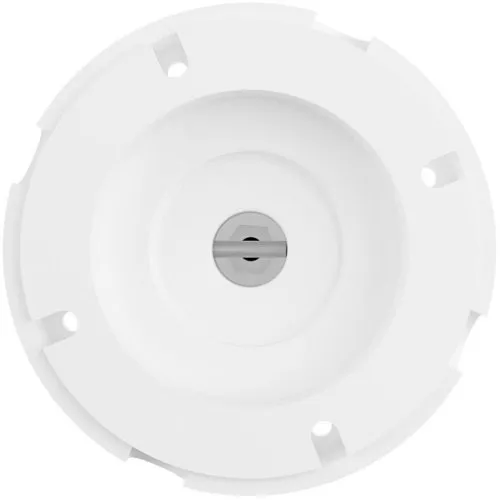

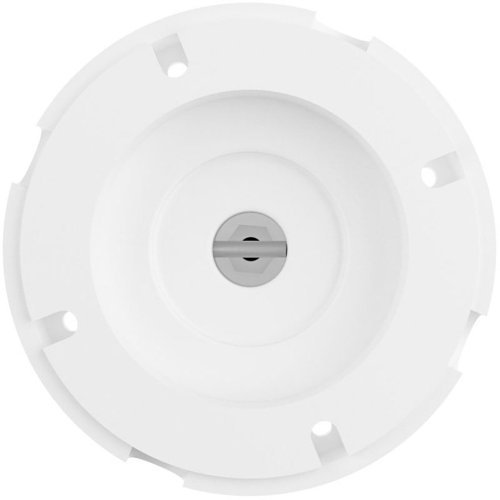

Digital Watchdog DWC-B6563WTIRW Star-Light Plus 5MP Universal HD-over-Coax IR Bullet Camera, 2.7-13.5mm Varifocal Lens, White (Replaces DWC-B6563WTIR)
Image of 4
Key Features
- Confident night-time identification: Star-Light Plus delivers color imaging in near-total darkness with up to 100' Smart IR to keep critical details visible after dark.
- Cost-effective upgrade path: Universal HD-over-Coax compatibility (HD-TVI, HD-CVI, HD-Analog) lets you reuse existing coax and integrate with VMAX DVRs to lower installation costs.
- Flexible coverage & framing: 2.7–13.5mm varifocal lens and 5MP resolution provide wide-area coverage or tight scene composition while preserving critical evidence-level detail.
- Weatherproof, dependable operation: IP66-rated aluminum housing withstands rain, dust, and temperatures from -4°F to 122°F for reliable outdoor surveillance.
- Simple configuration and control: UTC OSD control over coax plus programmable features (WDR, DNR, motion detection) reduce onsite tuning time and simplify monitoring.
Quick Specifications
- Product Model
- DWC-B6563WTIRW
- Brand Name
- Digital Watchdog
- Product Line
- Star-Light Plus
- Product Name
- Star-Light Plus 5MP UHDoC bullet camera with a vari-focal lens and IR
Frequently Bought Together
Digital Watchdog DWC-B6563WTIRW Star-Light Plus 5MP Universal HD-over-Coax IR Bullet Camera, 2.7-13.5mm Varifocal Lens, White (Replaces DWC-B6563WTIR)
$319.91
7 items selected
Total: $1,759.55
Product Information Tabs
Overview
Designed for demanding security and monitoring applications, the Digital Watchdog Star-Light Plus 5MP bullet camera brings reliable, evidence-ready imaging to your surveillance system. This HD-over-Coax bullet camera produces 5MP detail while the Star-Light Plus sensor maintains color in very low light, and Smart IR extends scene illumination to roughly 100 feet for round-the-clock visibility. The 2.7–13.5mm varifocal lens lets integrators fine-tune field of view for entrances, perimeters, loading docks, and parking areas without swapping hardware. Universal compatibility with HD-TVI, HD-CVI and HD-Analog signals enables fast upgrades using existing coax infrastructure and seamless operation with VMAX A1 Plus DVRs—minimizing downtime and installation expense. Rugged aluminum construction and IP66 weatherproofing ensure dependable outdoor operation, while features like true WDR, Smart DNR and UTC OSD control streamline setup and improve analytic performance. Backed by a 5-year warranty, the DWC-B6563WTIRW is a high-value choice for professional security integrators and facilities managers. Add this Digital Watchdog bullet camera to your next deployment to strengthen perimeter surveillance and reduce total cost of ownership.
Features
- Confident night-time identification: Star-Light Plus delivers color imaging in near-total darkness with up to 100' Smart IR to keep critical details visible after dark.
- Cost-effective upgrade path: Universal HD-over-Coax compatibility (HD-TVI, HD-CVI, HD-Analog) lets you reuse existing coax and integrate with VMAX DVRs to lower installation costs.
- Flexible coverage & framing: 2.7–13.5mm varifocal lens and 5MP resolution provide wide-area coverage or tight scene composition while preserving critical evidence-level detail.
- Weatherproof, dependable operation: IP66-rated aluminum housing withstands rain, dust, and temperatures from -4°F to 122°F for reliable outdoor surveillance.
- Simple configuration and control: UTC OSD control over coax plus programmable features (WDR, DNR, motion detection) reduce onsite tuning time and simplify monitoring.
| General Information | |
|---|---|
| Brand Name | Digital Watchdog |
| Manufacturer | Digital Watchdog |
| Product Line | Star-Light Plus |
| Product Name | Star-Light Plus 5MP UHDoC bullet camera with a vari-focal lens and IR |
| Product Type | Surveillance Camera |
| Product Model | DWC-B6563WTIRW |
| Country of Origin | VN |
| Manufacturer Part Number | DWC-B6563WTIRW |
| Technical Information | |
| Amperage | 420.00mA |
| Lens Type | Varifocal |
| Night Vision | Yes |
| Optical Zoom | 5.0x |
| Programmable | Yes |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264 / AVC, MJPEG |
| Output Voltage | 24V AC |
| Motion Detection | Yes |
| Night Vision Type | Infrared (IR) |
| Maximum Frame Rate | 30fps |
| Wide Dynamic Range | Yes |
| American Wire Gauge | 18AWG |
| Minimum Focal Length | 2.70mm |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 5MP |
| Camera | |
| Image Sensor Type | CMOS |
| Night Vision Distance | 100.00' |
| Certifications | |
| Certifications | CE, FCC, NDAA |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Image Sensor Size | 1/2.8" |
| Maximum Video Resolution | 2592 x 1944 |
| Environmental Conditions | |
| Operating Humidity | 10-90% (Non-condensing) |
| Operating Temperature (T-T) | -4-122°F |
| Maximum Operating Temperature | 122°F |
| Minimum Operating Temperature | -4°F |
| Exposure | |
| Minimum Illumination | 0.0800lux |
| Longest Shutter Speed | 1/30 Second |
| Shortest Shutter Speed | 1/30000 Second |
| Lens | |
| Focus Modes | Auto Focus |
| Focal Length | 2.7-13.5mm |
| Lens Included | Yes |
| Maximum Focal Length | 13.50mm |
| Physical Characteristics | |
| Color | White |
| Weight | 1.65lb |
| Material | Aluminum Die-cast |
| Durability | Dust Resistant, Waterproof, Weather Resistant |
| Form Factor | Bullet |
| Power Description | |
| Frequency | 60Hz |
| Input Voltage | 24V AC |
| Product Replacements & Other Alternatives | |
| Model Number Replaces | DWC-B6563WTIR |
| Model Number Alternative | DS-2CE19H8T-AIT3ZF |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Analog Video Signal Format | CVBS, HDCVI, HDoC |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Features | Auto Flip, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in OSD Function, Day/Night, Defog, Digital Noise Reduction, Mirror, Motion Detection, PTZ, Wide Dynamic Range |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
