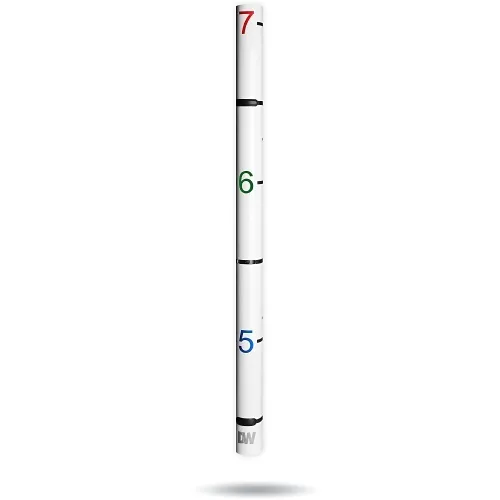

Digital Watchdog MEGApix 5MP Height Strip IP Camera, 3.7MM
Key Features
- Capture clear, eye-level facial images for reliable identification and loss prevention
- Operates in near-total darkness with Star‑Light Plus for 24/7 color surveillance
- Built-in IVA+ analytics reduce false alarms and enable smarter event-driven recording
- Discrete height-strip design with 3.7mm wide-angle lens for unobtrusive entrance monitoring
- NDAA- and ONVIF-compliant for secure, seamless integration into open-platform security systems
Quick Specifications
- Product Model
- DWC-MHS5W37T
- Brand Name
- Digital Watchdog
- Product Line
- MEGApix
- Product Name
- Digital Watchdog DWC-MHS5W37T MEGApix 5MP Height Strip IP Camera with 3.7mm Lens
Product Information Tabs
Overview
Designed for reliable entrance monitoring and loss prevention, the Digital Watchdog MEGApix 5MP Height Strip IP Camera delivers high-definition, eye-level facial captures in a discreet form factor. Engineered for retail, hospitality and facility security, this covert camera provides 5MP resolution at real-time 30fps and a 3.7mm wide-angle lens to reliably record people entering and exiting a space. Star‑Light Plus color technology preserves usable color images in near-total darkness while wide dynamic range ensures clear detail in challenging lighting. IVA+ intelligent video analytics reduce false alarms, enable smart recording and support shrink reduction and inventory control workflows. NDAA and ONVIF compliance make integration with DW Spectrum or other open-platform VMS straightforward and secure. Lightweight, wall-mountable and rated for extended operating temperatures, the MEGApix height strip is a cost-effective choice for perimeter and entrance security, monitoring, and surveillance applications. Add it to your security system to improve identification accuracy and streamline investigations.
Features
- Capture clear, eye-level facial images for reliable identification and loss prevention
- Operates in near-total darkness with Star‑Light Plus for 24/7 color surveillance
- Built-in IVA+ analytics reduce false alarms and enable smarter event-driven recording
- Discrete height-strip design with 3.7mm wide-angle lens for unobtrusive entrance monitoring
- NDAA- and ONVIF-compliant for secure, seamless integration into open-platform security systems
| General Information | |
|---|---|
| Brand Name | Digital Watchdog |
| Manufacturer | Digital Watchdog |
| Product Line | MEGApix |
| Product Name | Digital Watchdog DWC-MHS5W37T MEGApix 5MP Height Strip IP Camera with 3.7mm Lens |
| Product Type | Surveillance Camera |
| Product Model | DWC-MHS5W37T |
| Product Series | MHS5 |
| Manufacturer Part Number | DWC-MHS5W37T |
| Supported Network Protocols | IPv4 |
| Technical Information | |
| Material | Aluminum |
| Lens Type | Fixed |
| Protocols | Bonjour, DDNS, DHCP, DNS, Genetec Protocol, HTTP, HTTPs, IGMP, NTP, RTP, RTP (UDP/TCP), RTSP, SMTP, SNMP, SNMPv1/v2/v3 (MIB-2), TCP, Telnet, uPNP, Zeroconf (AutoIP) |
| Night Vision | Yes |
| Programmable | Yes |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264, MJPEG |
| Output Voltage | 12V DC |
| Motion Detection | Yes |
| Night Vision Type | Color, Infrared |
| Maximum Frame Rate | 30fps |
| American Wire Gauge | 18AWG |
| Effective Camera Resolution | 5MP |
| Audio | |
| Memory Card Slot | Yes |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Display & Graphics | |
| Image Sensor Size | 1/2.8" |
| Maximum Video Resolution | 2592 x 1944 |
| Environmental Conditions | |
| Operating Humidity | 10-90% (Non-condensing) |
| Operating Temperature (T-T) | -4-122°F |
| Maximum Operating Temperature | 122°F |
| Minimum Operating Temperature | -4°F |
| Exposure | |
| Minimum Illumination | 0.26 lux (color) |
| Longest Shutter Speed | 1/32000 s |
| Shortest Shutter Speed | Off, x10, x15, x2, x3, x4, x5, x6, x7.5 |
| Lens | |
| Focus Modes | Auto, Manual |
| Focal Length | 3.7mm |
| Lens Included | Yes |
| Media & Performance | |
| Network Technology | 10 Base-T Ethernet, 100 Base-T Ethernet |
| Network & Communication | |
| Remote Management | No |
| Physical Characteristics | |
| Color | White |
| Height | 33.85" |
| Weight | 1.98lb |
| Power Description | |
| Frequency | 50 Hz |
| Input Voltage | 12V DC |
| Product Information | |
| Diameter | 0.78" |
| Mount Type | Wall Mount |
| TBD | |
| Amperage | 333.3mA |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Certifications | CE, FCC, NDAA, ONVIF |
| Indoor/Outdoor | Indoor |
| Country of Origin | VN |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
