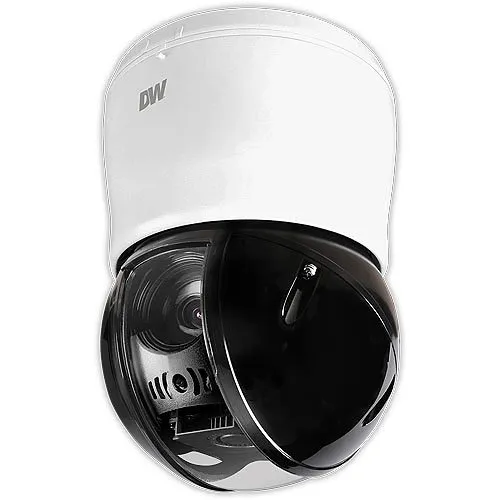

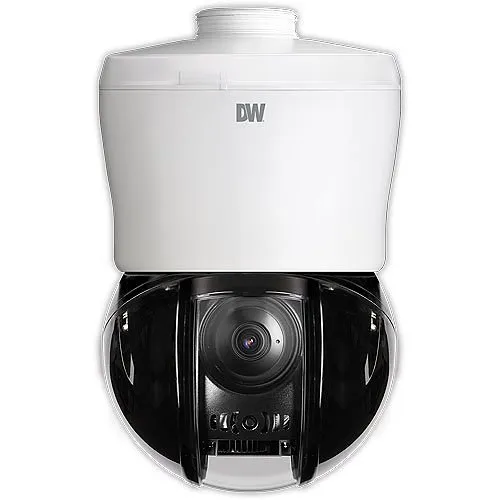

Digital Watchdog DWC-MPTZ230XTW MEGApix 2.1MP IR PTZ IP Camera, 4.3-129mm Varifocal Lens, 30x Optical Zoom, White

SKU: DWC-MPTZ230XTW Digital Watchdog

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

2.1MP IP PTZ, 30X, NDAA
Product images for Digital Watchdog DWC-MPTZ230XTW MEGApix 2.1MP IR PTZ IP Camera, 4.3-129mm Varifocal Lens, 30x Optical Zoom, White. 3 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Deliver crisp, actionable video for security and monitoring with 2.1MP/1080p at 30fps for reliable identification
  • Long-range situational awareness with 30x optical zoom and 200' IR to track subjects at distance day or night
  • Dependable outdoor performance: IP66 weatherproofing and IK10 vandal resistance protect critical installations
  • Low-bandwidth, high-quality recording using H.265/H.264 with local SD storage and remote management for efficient surveillance
  • Improved image clarity in challenging lighting with Star-Light Plus color, true WDR and Smart IR for balanced scenes

Quick Specifications

Product Model
DWC-MPTZ230XTW
Brand Name
Digital Watchdog
Product Line
MEGApix PTZ
Product Name
2.1MP/1080p PTZ IP camera with 30x optical zoom
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Designed for demanding surveillance and security deployments, the Digital Watchdog DWC-MPTZ230XTW PTZ camera puts long-range monitoring and reliable identification first. This NDAA-compliant MEGApix PTZ delivers 2.1MP/1080p at 30fps and a 30x optical zoom so operators can capture fine detail across large perimeters, parking areas or campus grounds. Star-Light Plus color sensitivity and Smart IR extend useful color and B/W imaging in near-total darkness, while true WDR and digital image stabilization keep scenes clear even with strong backlighting or motion.

Built for outdoor use, the aluminum die-cast housing is IP66-rated and IK10-rated against impact, protecting your investment in industrial, transit or municipal installations. Network-friendly features like simultaneous H.265/H.264/MJPEG streams, SD card local storage and remote management reduce bandwidth and simplify integrations with VMS and NVR systems. With support for IPv4/IPv6 and common network protocols, this PTZ camera fits into modern monitoring architectures.

Ideal for perimeter security, transportation hubs and large facility surveillance — contact your reseller to configure the DWC-MPTZ230XTW for your security system.

Features

  • Deliver crisp, actionable video for security and monitoring with 2.1MP/1080p at 30fps for reliable identification
  • Long-range situational awareness with 30x optical zoom and 200' IR to track subjects at distance day or night
  • Dependable outdoor performance: IP66 weatherproofing and IK10 vandal resistance protect critical installations
  • Low-bandwidth, high-quality recording using H.265/H.264 with local SD storage and remote management for efficient surveillance
  • Improved image clarity in challenging lighting with Star-Light Plus color, true WDR and Smart IR for balanced scenes
General Information
Brand Name Digital Watchdog
Manufacturer Digital Watchdog
Product Line MEGApix PTZ
Product Name 2.1MP/1080p PTZ IP camera with 30x optical zoom
Product Type Network Camera
Product Model DWC-MPTZ230XTW
Manufacturer Part Number DWC-MPTZ230XTW
Supported Network Protocols IPv4, IPv6
Technical Information
Material Aluminum Die-cast
Lens Type Varifocal, Zoom
Protocols DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP)
Night Vision Yes
Optical Zoom 30x
Programmable Yes
Field of View Horizontal, Vertical
Video Formats H.264, MJPEG
Output Voltage 24V AC, 24V DC
Maximum Aperture f/1.6
Motion Detection Yes
Night Vision Type Infrared
Maximum Frame Rate 30fps
American Wire Gauge 18AWG
Minimum Focal Length 4.3mm
Illumination Distance 200'
Connectivity Technology Wired
Effective Camera Resolution 2MP
Audio
Audio Encoding G.711
Memory Card Slot Yes
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 200 ft
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP66
Display & Graphics
Tilt 100°
Image Sensor Size 1/3"
Maximum Video Resolution 1920 x 1080
Environmental Conditions
Operating Humidity 10-90% (Non-condensing)
Operating Temperature (T-T) -4-122°F
Maximum Operating Temperature 122°F (50°C)
Minimum Operating Temperature -4°F (-20°C)
Exposure
Minimum Illumination 0.0 lux (B/W), 0.05 lux (color)
Longest Shutter Speed 1/8 Second
Shortest Shutter Speed Off, x2, x4
Aspect Ratio 4:3
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focus Modes Auto, Manual
Focal Length 4.3-129mm
Lens Included Yes
Minimum Aperture f/4.7
Maximum Focal Length 129mm
Media & Performance
Network Technology 10 Base-T Ethernet, 100 Base-T Ethernet
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Weight 6.17lb
Durability Weather Resistant
Form Factor PTZ
Power Description
Input Voltage 24V AC
Product Information
Mount Type Bracket Mount, Ceiling Mount, Corner Mount, Flush Mount, Pole Mount, Wall Mount
Storage
Storage Type Memory Card
Recording Formats Full HD
TBD
Amperage 1666mA
Video
Maximum Resolution 1280 x 720
Analog Video Signal Format CVBS
Warranty
Limited Warranty 2-Year
Miscellaneous
Features 3D Digital Noise Reduction, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Motion Detection, PTZ, SD Card Local Storage, Wide Dynamic Range
Certifications CE, FCC, NDAA, TAA
Country of Origin US
Environmentally Friendly Yes
Impact Protection Rating IK10
Environmental Certification RoHS
