Digital Watchdog DWC-MVA5WIAT MEGApix IVA 5MP IR Vandal Ball IP Camera, 2.7-13.5mm Varifocal Lens, White

SKU: DWC-MVA5WIAT Digital Watchdog
Digital Watchdog MEGApix DWC-MVA5WIAT 5 Megapixel Network Camera - Ball - TAA Compliant

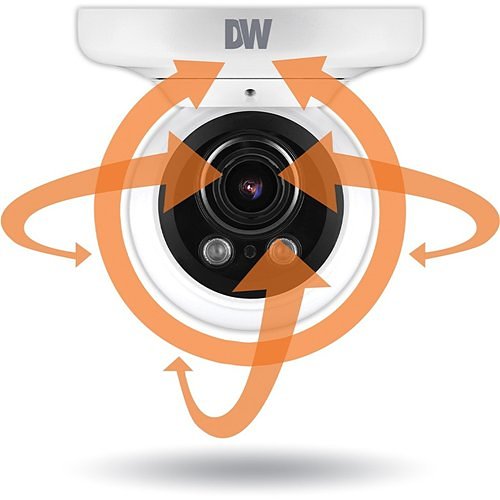

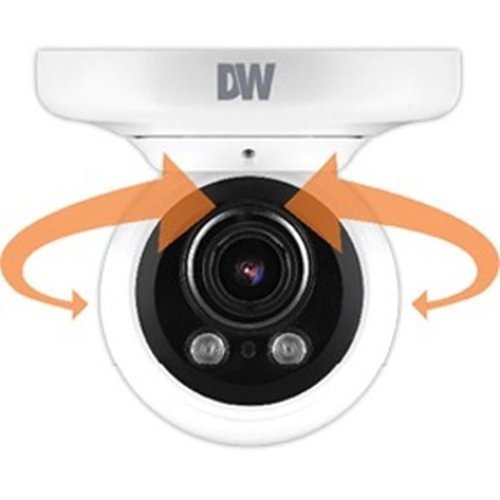

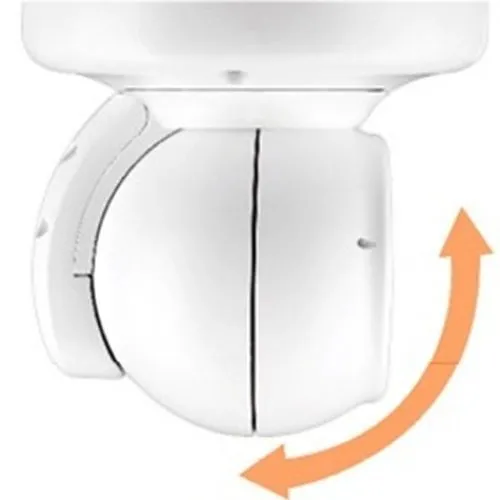

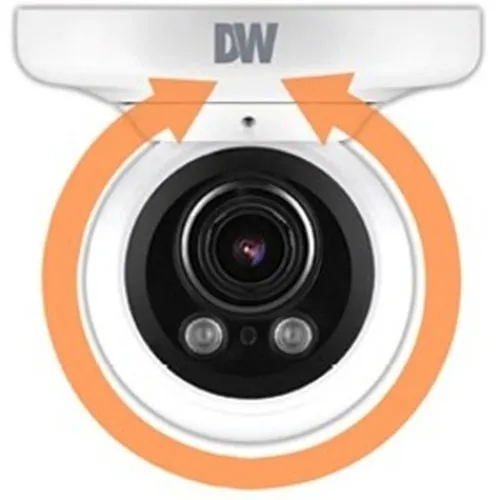

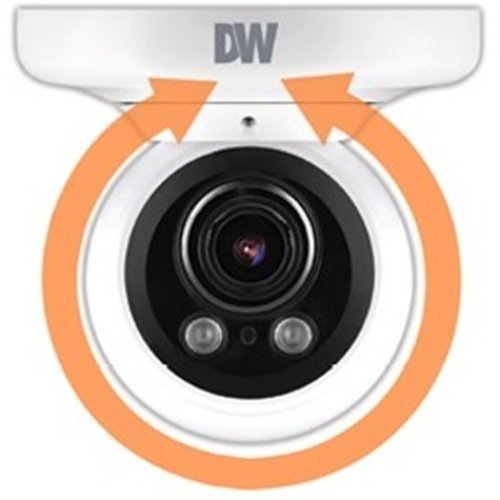

Product images for Digital Watchdog DWC-MVA5WIAT MEGApix IVA 5MP IR Vandal Ball IP Camera, 2.7-13.5mm Varifocal Lens, White. 5 image(s) available. Click on image to view full size.
NDAA Compliant TAA Compliant

Key Features

  • Maintain clear, actionable surveillance day or night with Star-Light Plus color imaging and 5MP resolution at 30fps for accurate identification.
  • Cut false alarms and focus storage on events with built-in Intelligent Video Analytics (IVA+) and smart recording rules.
  • Save bandwidth and storage with simultaneous H.265/H.264/MJPEG streams and flexible codec options for network-friendly monitoring.
  • Achieve precise remote coverage with the 2.7–13.5mm varifocal P‑iris lens, motorized zoom and autofocus for fast onsite or centralized adjustments.
  • Depend on rugged, all-weather protection (IP67, IK10) and a vandal-resistant turret design for secure outdoor and indoor installations.

Quick Specifications

Brand Name
Digital Watchdog
Manufacturer
Digital Watchdog
Product Line
MEGApix
Product Name
5MP Color in Near-total Darkness Vandal Ball IP Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

For demanding security and monitoring applications, the Digital Watchdog MEGApix DWC-MVA5WIAT vandal ball turret IP camera delivers reliable, high-quality video and smart analytics to reduce false alarms and simplify surveillance workflows. This MEGApix IP camera captures 5MP resolution at real-time 30fps and uses Star-Light Plus technology to preserve color and detail in near-total darkness—critical for perimeter, parking lot, and retail security. The 2.7–13.5mm varifocal P-iris lens with 5x optical zoom plus motorized autofocus gives you flexible coverage and remote lens control, reducing onsite service visits. IVA+ video analytics, smart recording logic and compatibility with DW Spectrum IPVMS let you prioritize events and optimize storage. Built for tough environments, the aluminum die-cast housing is IP67 and IK10 rated for vandal and weather resistance. Network-friendly H.265 compression and multi-codec streaming help manage bandwidth for enterprise deployments. Ideal for integrators and facility managers who need dependable, low-light surveillance with advanced analytics—specify the Digital Watchdog MEGApix 5MP turret IP camera for your next project or contact sales to schedule a demo.

Features

  • Maintain clear, actionable surveillance day or night with Star-Light Plus color imaging and 5MP resolution at 30fps for accurate identification.
  • Cut false alarms and focus storage on events with built-in Intelligent Video Analytics (IVA+) and smart recording rules.
  • Save bandwidth and storage with simultaneous H.265/H.264/MJPEG streams and flexible codec options for network-friendly monitoring.
  • Achieve precise remote coverage with the 2.7–13.5mm varifocal P‑iris lens, motorized zoom and autofocus for fast onsite or centralized adjustments.
  • Depend on rugged, all-weather protection (IP67, IK10) and a vandal-resistant turret design for secure outdoor and indoor installations.
General Information
Brand Name Digital Watchdog
Manufacturer Digital Watchdog
Product Line MEGApix
Product Name 5MP Color in Near-total Darkness Vandal Ball IP Camera
Product Type Network Camera
Product Model DWC-MVA5WIAT
Product Series VA
Manufacturer Part Number DWC-MVA5WIAT
Supported Network Protocols IPv4
Technical Information
Material Aluminum Die-cast
Lens Type P-iris, Varifocal, Zoom
Protocols Bonjour, DDNS, DHCP, DNS, Genetec Protocol, HTTP, HTTPs, IGMP, NTP, RTP, RTP (UDP/TCP), RTSP, SNMP, SNMPv1/v2/v3 (MIB-2), TCP, Telnet, uPNP, Zeroconf (AutoIP)
Night Vision Yes
Optical Zoom 5x
Programmable Yes
Field of View Horizontal, Vertical
Video Formats H.264, MJPEG
Output Voltage 12V DC
Maximum Aperture f/1.4
Motion Detection Yes
Maximum Frame Rate 30fps
American Wire Gauge 18AWG
Minimum Focal Length 2.7mm
Illumination Distance 100'
Connectivity Technology Wired
Effective Camera Resolution 5MP
Audio
Memory Card Slot Yes
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 100 ft
Certifications
TAA Compliant Yes
NDAA Compliant Yes
Ingress Protection Rating IP67
Display & Graphics
Image Sensor Size 1/2.8"
Maximum Video Resolution 2592 x 1944
Environmental Conditions
Operating Humidity 10-90% (Non-condensing)
Operating Temperature (T-T) -4-122°F
Maximum Operating Temperature 122°F (50°C)
Minimum Operating Temperature -4°F (-40°C)
Exposure
Minimum Illumination 0.0 lux (B/W), 0.08 lux (color)
Shortest Shutter Speed Off, x15, x2, x3, x4, x5, x6, x7.5
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focus Modes Auto, Manual
Focal Length 2.7-13.5mm
Lens Included Yes
Maximum Focal Length 13.5mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Weight 1.87 lb
Durability Weather Resistant
Form Factor Turret
Power Description
Input Voltage 12V DC
Product Information
Mount Type Ceiling Mount, Junction Box Mount, Wall Mount
Storage
Recording Formats HD
TBD
Amperage 591.6mA
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 5-Year
Miscellaneous
Certifications CE, FCC, NDAA, UL Listing
Indoor/Outdoor Indoor, Outdoor
Country of Origin VN
Environmentally Friendly Yes
Impact Protection Rating IK10
Environmental Certification RoHS
