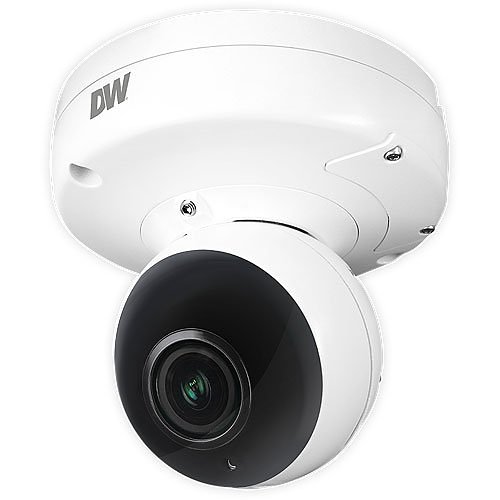

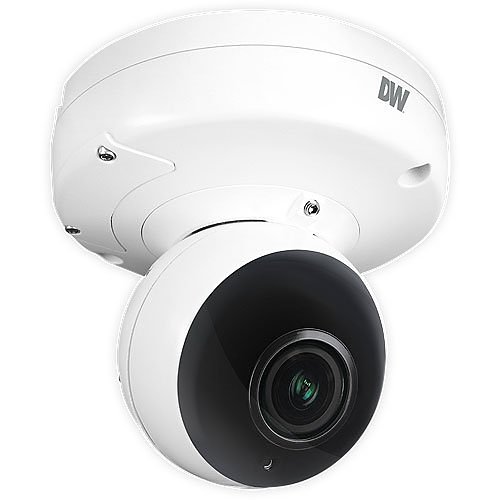

Digital Watchdog DWC-MVD8WIATW MEGApixIVA 4K IR Vandal Ball IP Camera, 2.7-13.5mm Varifocal Lens, White
SKU: DWC-MVD8WIATW
Digital Watchdog
Image of 3
NDAA Compliant
Key Features
- Capture critical detail in low light: Star-Light Plus delivers near‑total darkness color imaging so you can identify faces and license plates around the clock.
- Smarter, actionable alerts: Built‑in IVA (Intelligent Video Analytics) reduces false alarms and supports DW Spectrum integration for efficient surveillance workflows.
- Flexible remote framing: Motorized 2.7–13.5mm varifocal P‑iris lens with 5x optical zoom and autofocus lets installers and operators precisely zoom and focus from anywhere.
- Reliable in all environments: IP66 weatherproofing and IK09 impact protection ensure continuous outdoor operation against weather and vandalism.
- Optimized bandwidth and storage: Simultaneous H.265/H.264/MJPEG streaming, smart recording rules and WDR deliver clear images while minimizing network load.
- Nighttime clarity up to 100 ft: Smart IR with intelligent sync prevents reflections for clean black-and-white footage in complete darkness.
Quick Specifications
- Brand Name
- Digital Watchdog
- Manufacturer
- Digital Watchdog
- Product Line
- MEGApix
- Product Name
- 4K Color In Near-Total Darkness Galaxy Vandal Ball IP Camera with IVA
Product Information Tabs
Overview
For mission‑critical surveillance and monitoring, the Digital Watchdog MEGApix turret camera delivers 4K clarity and intelligent analytics that help security teams see more and act faster. This DWC-MVD8WIATW vandal ball IP camera records 4K (up to 30 fps) video and combines Star‑Light Plus low‑light color with 100' Smart IR and True WDR to preserve detail across bright highlights and deep shadows. The motorized 2.7–13.5mm varifocal P‑iris lens with 5x optical zoom and autofocus lets integrators remotely frame scenes and maintain crisp focus without ladders or site visits.
Built‑for‑business features like NDAA compliance, IP66 weather rating, IK09 impact resistance and DW Spectrum IVA integration reduce false alarms, streamline monitoring and extend recording retention with smart rules and H.265 compression. Ideal for perimeter, retail, transportation and campus security deployments, this turret camera balances high resolution, analytics and rugged reliability. Add the Digital Watchdog MEGApix 4K turret camera to your next security project for improved detection, fewer false alerts and clearer evidence capture.
Features
- Capture critical detail in low light: Star-Light Plus delivers near‑total darkness color imaging so you can identify faces and license plates around the clock.
- Smarter, actionable alerts: Built‑in IVA (Intelligent Video Analytics) reduces false alarms and supports DW Spectrum integration for efficient surveillance workflows.
- Flexible remote framing: Motorized 2.7–13.5mm varifocal P‑iris lens with 5x optical zoom and autofocus lets installers and operators precisely zoom and focus from anywhere.
- Reliable in all environments: IP66 weatherproofing and IK09 impact protection ensure continuous outdoor operation against weather and vandalism.
- Optimized bandwidth and storage: Simultaneous H.265/H.264/MJPEG streaming, smart recording rules and WDR deliver clear images while minimizing network load.
- Nighttime clarity up to 100 ft: Smart IR with intelligent sync prevents reflections for clean black-and-white footage in complete darkness.
| General Information | |
|---|---|
| Brand Name | Digital Watchdog |
| Manufacturer | Digital Watchdog |
| Product Line | MEGApix |
| Product Name | 4K Color In Near-Total Darkness Galaxy Vandal Ball IP Camera with IVA |
| Product Type | Network Camera |
| Product Model | DWC-MVD8WIATW |
| Product Series | MVD8 |
| Manufacturer Part Number | DWC-MVD8WIATW |
| Supported Network Protocols | IPv4 |
| Technical Information | |
| Material | Aluminum Die-cast |
| Lens Type | P-iris, Varifocal, Zoom |
| Protocols | DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP) |
| Night Vision | Yes |
| Optical Zoom | 5x |
| Programmable | Yes |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264, MJPEG |
| Output Voltage | 12V DC |
| Maximum Aperture | f/1.4 |
| Motion Detection | Yes |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| American Wire Gauge | 18AWG |
| Built-in Microphone | Yes |
| Minimum Focal Length | 2.7mm |
| Illumination Distance | 100' |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 8MP |
| Audio | |
| Audio Encoding | G.711 |
| Memory Card Slot | Yes |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 100 ft |
| Certifications | |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Image Sensor Size | 1/2.8" |
| Maximum Video Resolution | 2560 x 1440 |
| Environmental Conditions | |
| Operating Humidity | 10-90% (Non-condensing) |
| Operating Temperature (T-T) | -4-122°F |
| Maximum Operating Temperature | 50°F (10°C) |
| Minimum Operating Temperature | -4°F (-20°C) |
| Exposure | |
| Minimum Illumination | 0.0 lux (B/W), 0.09 lux (color) |
| Longest Shutter Speed | 1/15 Second |
| Shortest Shutter Speed | Off, x10, x2, x3, x5, x6, x7.5 |
| Image | |
| Aspect Ratio | 4:3 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focus Modes | Auto, Manual |
| Focal Length | 2.7-13.5mm |
| Lens Included | Yes |
| Maximum Focal Length | 13.5mm |
| Media & Performance | |
| Network Technology | 1000 Base-T Ethernet |
| Network & Communication | |
| Remote Management | Yes |
| Others | |
| Model Number Replaces | DWC-MPVD8WIATW |
| Physical Characteristics | |
| Color | White |
| Weight | 1.87 lb |
| Durability | Weather Resistant |
| Form Factor | Turret |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Mount Type | Bracket Mount, Ceiling Mount, Corner Mount, Junction Box Mount, Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | 4K |
| TBD | |
| Amperage | 1033mA |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Analog Video Signal Format | CVBS |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Features | 3D Digital Noise Reduction, Anti-flicker, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Motion Detection, Privacy Masking, Wide Dynamic Range |
| Certifications | CE, FCC, NDAA |
| Country of Origin | US |
| Environmentally Friendly | Yes |
| Impact Protection Rating | IK09 |
| Environmental Certification | RoHS |
