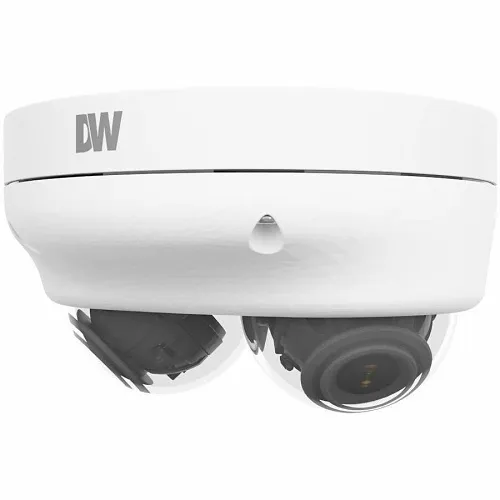

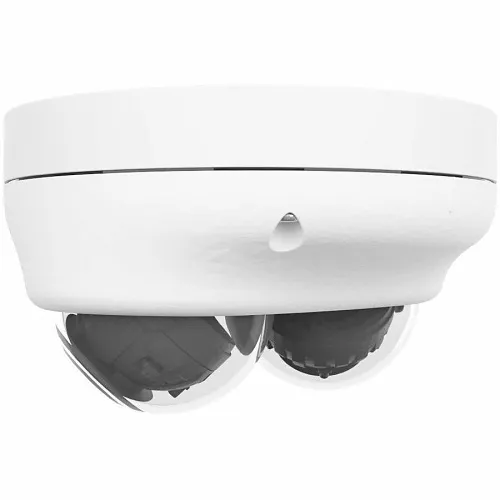

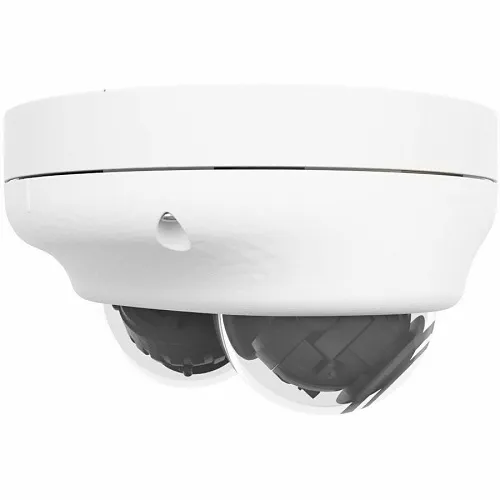

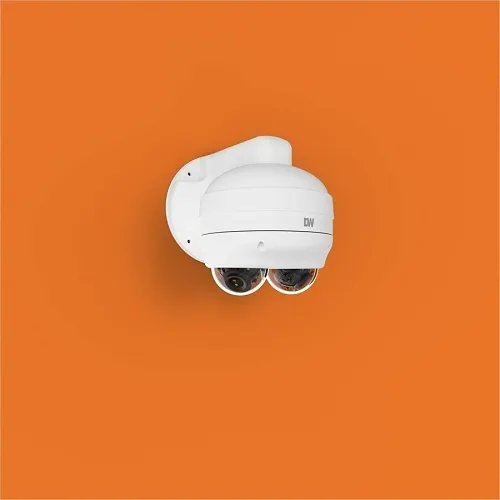

Digital Watchdog DWC-PDS10WI28A MEGApix Ai 10MP IP Dual-Sensor Vandal Dome Camera, 2.8mm Fixed Lens, White
Key Features

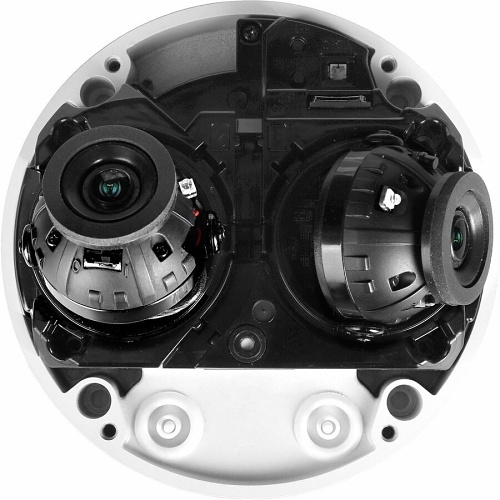

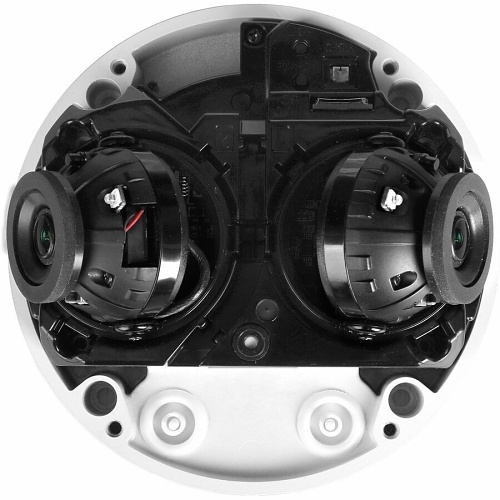

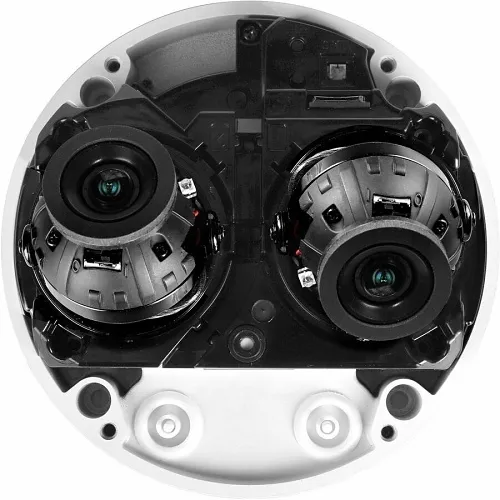

- Dual-view coverage with two independently adjustable 5MP sensors, cutting installation time and hardware costs by replacing two cameras with one
- Ai Deep Learning on one channel reduces false alarms and improves object classification for reliable security monitoring
- Star-Light Plus low-light color imaging and 50 ft infrared extend surveillance hours without sacrificing detail
- Vandal- and weather-resistant design (IK10, IP67) protects critical assets in harsh outdoor and high-traffic environments
- Smart recording and analytics-ready integration with DW Spectrum save storage and streamline event-driven playback
- 2.8mm fixed lens delivers wide area coverage for hallways, corners or open spaces—ideal for retail, transportation, and campus deployments
Quick Specifications
- Brand Name
- Digital Watchdog
- Manufacturer
- Digital Watchdog
- Product Line
- MEGApix Ai
- Product Name
- MEGApix Ai 10MP dual-sensor vandal dome IP camera with fixed lenses
Frequently Bought Together
Digital Watchdog DWC-PDS10WI28A MEGApix Ai 10MP IP Dual-Sensor Vandal Dome Camera, 2.8mm Fixed Lens, White
$1,237.57
13 items selected
Total: $5,398.27
Product Information Tabs
Overview
Protect more area with fewer devices using the Digital Watchdog MEGApix Ai 10MP IP dual-sensor vandal dome camera. Designed for professional security and surveillance, this network camera houses two 5MP sensors that each deliver real-time 30 fps, giving you simultaneous dual-angle coverage from a single ceiling or wall mount. One channel includes an Ai Deep Learning engine for accurate object detection and fewer false alerts, while Star-Light Plus technology preserves color detail in near-total darkness with up to 50 ft of IR illumination.
Built for demanding installations, the DWC-PDS10WI28A features an IK10 impact rating and IP67 weather resistance, plus a compact 2.8mm fixed lens for broad field-of-view monitoring. H.265 compression, onboard SD storage, and seamless DW Spectrum integration reduce bandwidth and storage costs while improving forensic search and remote monitoring. With flexible mounting options and easy setup—no analytics calibration required—this vandal dome is ideal for retail, transportation hubs, campuses, and critical infrastructure surveillance. Upgrade your monitoring reliability and deploy smarter analytics—contact sales or order the MEGApix Ai camera for your next project.
Features
- Dual-view coverage with two independently adjustable 5MP sensors, cutting installation time and hardware costs by replacing two cameras with one
- Ai Deep Learning on one channel reduces false alarms and improves object classification for reliable security monitoring
- Star-Light Plus low-light color imaging and 50 ft infrared extend surveillance hours without sacrificing detail
- Vandal- and weather-resistant design (IK10, IP67) protects critical assets in harsh outdoor and high-traffic environments
- Smart recording and analytics-ready integration with DW Spectrum save storage and streamline event-driven playback
- 2.8mm fixed lens delivers wide area coverage for hallways, corners or open spaces—ideal for retail, transportation, and campus deployments
| General Information | |
|---|---|
| Brand Name | Digital Watchdog |
| Manufacturer | Digital Watchdog |
| Product Line | MEGApix Ai |
| Product Name | MEGApix Ai 10MP dual-sensor vandal dome IP camera with fixed lenses |
| Product Type | Network Camera |
| Product Model | DWC-PDS10WI28A |
| Manufacturer Part Number | DWCPDS10WI28A |
| Supported Network Protocols | IPv4 |
| Technical Information | |
| Material | Aluminum Die-cast |
| Lens Type | Fixed |
| Protocols | DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP) |
| Night Vision | Yes |
| Programmable | Yes |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264, H.265 |
| Output Voltage | 12V DC |
| Motion Detection | Yes |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| American Wire Gauge | 18AWG |
| Built-in Microphone | Yes |
| Minimum Focal Length | 2.8mm |
| Illumination Distance | 50' |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 10MP |
| Audio | |
| Audio Encoding | G.711 |
| Memory Card Slot | Yes |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 50 ft |
| Certifications | |
| TAA Compliant | Yes |
| Ingress Protection Rating | IP67 |
| Display & Graphics | |
| Image Sensor Size | 1/2.8" |
| Number of Sensors | 2 |
| Maximum Video Resolution | 2592 x 1944 |
| Environmental Conditions | |
| Operating Humidity | 10-90% (Non-condensing) |
| Operating Temperature (T-T) | -4-122°F |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | -4°F (-20°C) |
| Exposure | |
| Minimum Illumination | 0.0 lux (B/W), 0.13 lux (color) |
| Longest Shutter Speed | 1/15 Second |
| Shortest Shutter Speed | Off, x10, x2, x3, x5, x6, x7.5 |
| Image | |
| Aspect Ratio | 4:3 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focus Modes | Auto, Manual |
| Focal Length | 2.8mm |
| Lens Included | Yes |
| Maximum Focal Length | 2.8mm |
| Media & Performance | |
| Network Technology | 10 Base-T Ethernet, 100 Base-T Ethernet |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Width | 3.1" |
| Height | 5.5" |
| Weight | 1.49lb |
| Durability | Weather Resistant |
| Form Factor | Dome, Panoramic |
| Power Description | |
| Frequency | 50 Hz |
| Input Voltage | 12V DC |
| Product Information | |

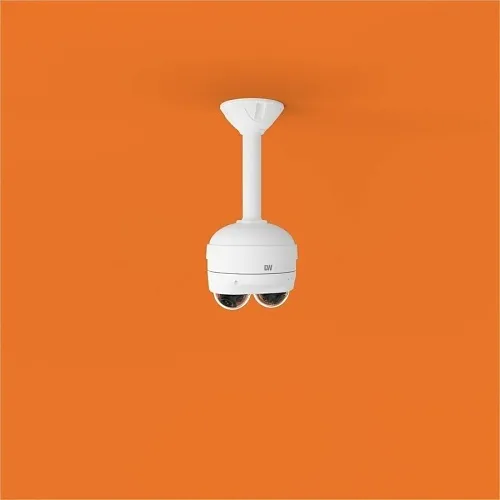

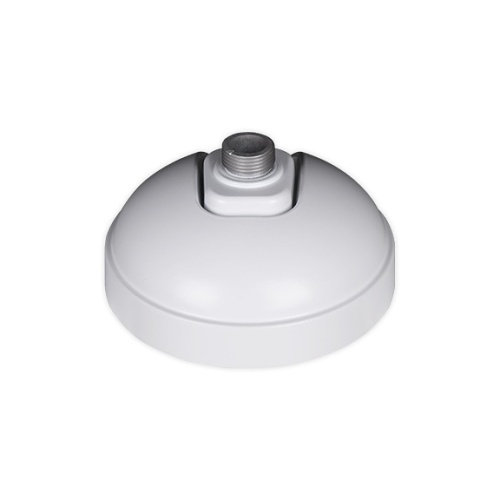

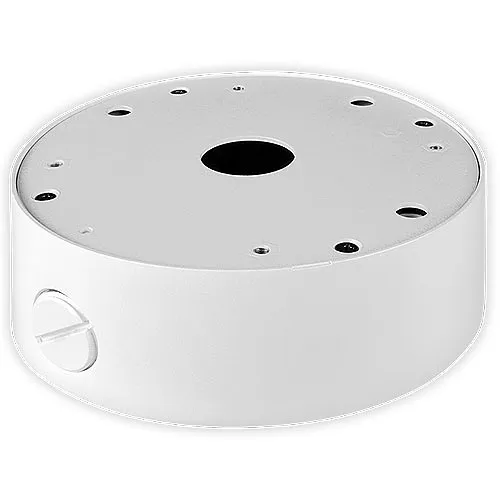

| Mount Type | Ceiling Mount, Corner Mount, Junction Box Mount, Pendant Mount, Pole Mount, Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| TBD | |
| Amperage | 826mA |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Analog Video Signal Format | CVBS |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Features | 3D Digital Noise Reduction, Alarm Detection, Auto Flip, Auto Gain Control, Built-in Web Server, Cross Line Detection, Day/Night, Defog, Enter/Exit Detector, Mirror, Motion Detection, SD Card Local Storage, Smart IR, Tamper Detection, Wide Dynamic Range |
| Certifications | CE, FCC, NDAA, ONVIF, TAA, UL Listing |
| Impact Protection Rating | IK10 |
