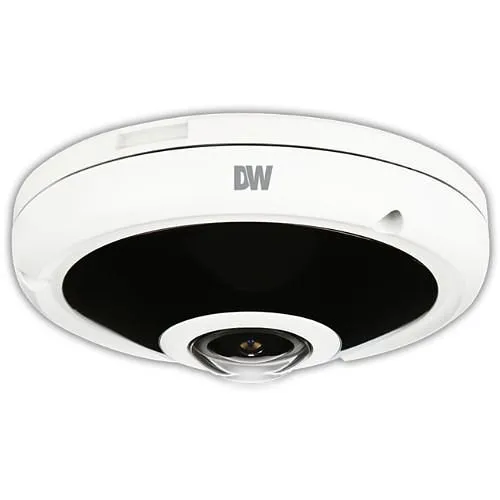

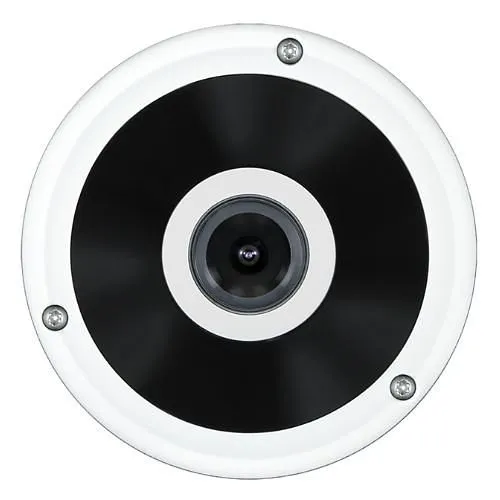

Digital Watchdog DWC-PVF5DI1TW MEGApix IVA 5MP IR Fisheye IP Camera, 1.55mm Lens, White
Key Features
- Complete 360° situational awareness with a single low-profile camera — reduces blind spots and lowers total system cost compared to multiple fixed cameras
- Superior low-light and IR performance (Star-Light Plus, 80' IR) for reliable 24/7 surveillance and clearer evidence capture
- Advanced IVA analytics and DW Spectrum integration to cut false alarms and automate event-driven monitoring and recording
- High-resolution 5MP at 30fps with a 1.55mm fisheye lens for edge-to-edge clarity and true panoramic coverage
- Durable, outdoor-ready IP66 and IK09-rated housing for dependable operation in harsh environments
- Efficient H.265 video compression and smart recording rules to maximize network bandwidth and reduce storage expenses
Quick Specifications
- Product Model
- DWC-PVF5DI1TW
- Brand Name
- Digital Watchdog
- Product Line
- MEGApix
- Product Name
- 5MP Fisheye Low-Profile Vandal Dome IP Camera
Frequently Bought Together
Digital Watchdog DWC-PVF5DI1TW MEGApix IVA 5MP IR Fisheye IP Camera, 1.55mm Lens, White
$679.77
14 items selected
Total: $3,455.51
Product Information Tabs
Overview
Protect large indoor or outdoor areas with a single, versatile panoramic camera. The Digital Watchdog MEGApix DWC-PVF5DI1TW fisheye IP camera delivers continuous 360° surveillance in a compact vandal-resistant dome, letting security teams monitor lobbies, retail floors, warehouses or parking areas without multiple cameras. Its 5MP sensor captures detailed 2592 x 1944 imagery at up to 30fps while the 1.55mm fisheye lens provides true hemispheric coverage and lossless dewarping for actionable views.
Built for real-world deployments, the camera pairs Star-Light Plus color sensitivity and 80' IR night vision for dependable low-light performance, and supports H.265/H.264 for efficient bandwidth and storage use. Intelligent Video Analytics (IVA+) integrates seamlessly with DW Spectrum IPVMS to reduce false alarms and trigger smart recordings or notifications—saving time and lowering operating costs. With IP66 weatherproofing, IK09 impact resistance and a 5-year warranty, the MEGApix fisheye is engineered for long-term surveillance reliability. Ideal for security, monitoring and loss-prevention applications—order now to simplify coverage while improving detection and evidence quality.
Features
- Complete 360° situational awareness with a single low-profile camera — reduces blind spots and lowers total system cost compared to multiple fixed cameras
- Superior low-light and IR performance (Star-Light Plus, 80' IR) for reliable 24/7 surveillance and clearer evidence capture
- Advanced IVA analytics and DW Spectrum integration to cut false alarms and automate event-driven monitoring and recording
- High-resolution 5MP at 30fps with a 1.55mm fisheye lens for edge-to-edge clarity and true panoramic coverage
- Durable, outdoor-ready IP66 and IK09-rated housing for dependable operation in harsh environments
- Efficient H.265 video compression and smart recording rules to maximize network bandwidth and reduce storage expenses
| General Information | |
|---|---|
| Brand Name | Digital Watchdog |
| Manufacturer | Digital Watchdog |
| Product Line | MEGApix |
| Product Name | 5MP Fisheye Low-Profile Vandal Dome IP Camera |
| Product Type | Network Camera |
| Product Model | DWC-PVF5DI1TW |
| Product Series | PVF |
| Manufacturer Part Number | DWC-PVF5DI1TW |
| Supported Network Protocols | IPv4 |
| Technical Information | |
| Material | Aluminum Die-cast |
| Lens Type | Fixed |
| Protocols | Bonjour, DDNS, DHCP, DNS, Genetec Protocol, HTTP, HTTPs, IGMP, NTP, RTP, RTP (UDP/TCP), RTSP, SNMP, SNMPv1/v2/v3 (MIB-2), TCP, Telnet, uPNP, Zeroconf (AutoIP) |
| Night Vision | Yes |
| Programmable | Yes |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264, H.265 |
| Output Voltage | 12V DC |
| Maximum Aperture | f/2.5 |
| Motion Detection | Yes |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| American Wire Gauge | 18AWG |
| Built-in Microphone | Yes |
| Minimum Focal Length | 1.55mm |
| Illumination Distance | 80' |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 5MP |
| Audio | |
| Audio Encoding | G.711 |
| Memory Card Slot | Yes |
| Camera | |
| Image Sensor Type | CMOS |
| Night Vision Distance | 80' |
| Certifications | |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Image Sensor Size | 1/1.8" |
| Maximum Video Resolution | 2592 x 1944 |
| Environmental Conditions | |
| Operating Humidity | 10-90% (Non-condensing) |
| Operating Temperature (T-T) | -4-122°F |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | -4°F (-20°C) |
| Exposure | |
| Minimum Illumination | 0.0 lux (B/W), 0.039 lux (color) |
| Longest Shutter Speed | 1/15 Second |
| Shortest Shutter Speed | Off, x10, x2, x3, x5, x6, x7.5 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focus Modes | Auto, Manual |
| Focal Length | 1.55mm |
| Lens Included | Yes |
| Maximum Focal Length | 1.55mm |
| Media & Performance | |
| Network Technology | 10 Base-T Ethernet, 100 Base-T Ethernet |
| Network & Communication | |
| Remote Management | Yes |
| Others | |
| Model Number Replaces | DWC-PF5M1TIR, DWC-PVF5M1TIR |
| Physical Characteristics | |
| Color | White |
| Width | 2.8" |
| Height | 6.3" |
| Weight | 1.10lb |
| Durability | Weather Resistant |
| Form Factor | Fisheye |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Mount Type | Ceiling Mount, Corner Mount, Gang Box Mount, Junction Box Mount, Pole Mount, Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| TBD | |
| Amperage | 625mA |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Features | 3D Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Dual Stream, Motion Detection, SD Card Local Storage |
| Certifications | CE, FCC, NDAA, UL Listing |
| Indoor/Outdoor | Outdoor |
| Country of Origin | VN |
| Environmentally Friendly | Yes |
| Impact Protection Rating | IK09 |
| Environmental Certification | RoHS |
