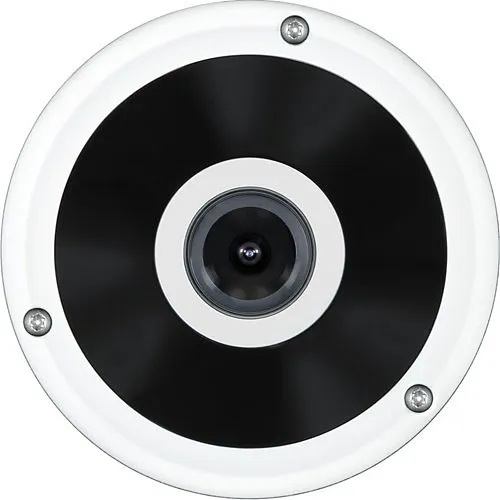

Digital Watchdog DWC-PVF9DI2TW MEGApix IVA 9MP IR Fisheye IP Camera, 2.1mm Fisheye Lens, White
Key Features
- Single-camera 360° coverage reduces installation and maintenance costs while eliminating blind spots for streamlined surveillance.
- 9MP resolution with a 2.1mm fisheye lens delivers edge-to-edge image clarity at 30fps for actionable detail across large areas.
- Star-Light Plus and IR illumination maintain color and black‑and‑white visibility in near‑dark conditions for reliable night monitoring.
- Built-in Intelligent Video Analytics (IVA+) and DW Spectrum integration reduce false alarms and improve event detection accuracy.
- IP66 and IK09-rated aluminum housing with NDAA/TAA compliance supports secure, durable installations in demanding environments.
Quick Specifications
- Product Model
- DWC-PVF9DI2TW
- Brand Name
- Digital Watchdog
- Product Line
- MEGApix
- Product Name
- 9MP Fisheye Low-Profile Vandal Dome IP Camera
Frequently Bought Together
Digital Watchdog DWC-PVF9DI2TW MEGApix IVA 9MP IR Fisheye IP Camera, 2.1mm Fisheye Lens, White
$833.91
14 items selected
Total: $3,609.65
Product Information Tabs
Overview
Capture complete area coverage with a single, high-resolution camera — ideal for lobbies, retail floors, warehouses and perimeter monitoring. The Digital Watchdog MEGApix 9MP fisheye IP camera combines a 2.1mm fisheye lens and a 9MP sensor to produce real-time 30fps panoramic images with edge-to-edge clarity, reducing the number of cameras needed and lowering total cost of ownership. Star-Light Plus technology plus IR illumination preserves usable color and detail in low light, while H.265/H.264 support optimizes bandwidth and storage. Built-in IVA+ analytics and seamless DW Spectrum dewarping let integrators create precise detection rules, cut false alarms and extend recording efficiency with smart recording. The rugged aluminum dome offers IP66 weather resistance and IK09 impact protection, and NDAA/TAA compliance makes it suitable for government and enterprise deployments. For turnkey surveillance that prioritizes coverage, analytics and reliability, choose the Digital Watchdog MEGApix fisheye camera — perfect for centralized monitoring, retail loss prevention, and large-area security projects. Contact your reseller to spec this camera for your next deployment.
Features
- Single-camera 360° coverage reduces installation and maintenance costs while eliminating blind spots for streamlined surveillance.
- 9MP resolution with a 2.1mm fisheye lens delivers edge-to-edge image clarity at 30fps for actionable detail across large areas.
- Star-Light Plus and IR illumination maintain color and black‑and‑white visibility in near‑dark conditions for reliable night monitoring.
- Built-in Intelligent Video Analytics (IVA+) and DW Spectrum integration reduce false alarms and improve event detection accuracy.
- IP66 and IK09-rated aluminum housing with NDAA/TAA compliance supports secure, durable installations in demanding environments.
| General Information | |
|---|---|
| Brand Name | Digital Watchdog |
| Manufacturer | Digital Watchdog |
| Product Line | MEGApix |
| Product Name | 9MP Fisheye Low-Profile Vandal Dome IP Camera |
| Product Type | Network Camera |
| Product Model | DWC-PVF9DI2TW |
| Product Series | PVF |
| Manufacturer Part Number | DWC-PVF9DI2TW |
| Supported Network Protocols | IPv4 |
| Technical Information | |
| Material | Aluminum Die-cast |
| Lens Type | Fixed |
| Protocols | Bonjour, DDNS, DHCP, DNS, Genetec Protocol, HTTP, HTTPs, IGMP, NTP, RTP, RTP (UDP/TCP), RTSP, SNMP, SNMPv1/v2/v3 (MIB-2), TCP, Telnet, uPNP, Zeroconf (AutoIP) |
| Night Vision | Yes |
| Programmable | Yes |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264 |
| Output Voltage | 12V DC |
| Maximum Aperture | f/2.2 |
| Motion Detection | Yes |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| American Wire Gauge | 18AWG |
| Built-in Microphone | Yes |
| Minimum Focal Length | 2.1mm |
| Illumination Distance | 80' |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 9MP |
| Audio | |
| Audio Encoding | G.711 |
| Memory Card Slot | Yes |
| Camera | |
| Image Sensor Type | CMOS |
| Night Vision Distance | 80' |
| Certifications | |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Image Sensor Size | 1/1.7” |
| Maximum Video Resolution | 3008 x 3000 |
| Environmental Conditions | |
| Operating Humidity | 10-90% (Non-condensing) |
| Operating Temperature (T-T) | -4-122°F |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | -4°F (-20°C) |
| Exposure | |
| Minimum Illumination | 0.0 lux (B/W), 0.03 lux (color) |
| Longest Shutter Speed | 1/15 Second |
| Shortest Shutter Speed | Off, x10, x2, x3, x5, x6, x7.5 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focus Modes | Auto, Manual |
| Focal Length | 2.1mm |
| Lens Included | Yes |
| Maximum Focal Length | 2.1mm |
| Media & Performance | |
| Network Technology | 10 Base-T Ethernet, 100 Base-T Ethernet |
| Network & Communication | |
| Remote Management | Yes |
| Others | |
| Model Number Replaces | DWC-PPVF9DI2TW, DWC-PVF9M2TIR |
| Physical Characteristics | |
| Color | White |
| Width | 4.9" |
| Height | 1.9" |
| Weight | 1.10lb |
| Durability | Weather Resistant |
| Form Factor | Fisheye |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Mount Type | Ceiling Mount, Corner Mount, Gang Box Mount, Junction Box Mount, Pole Mount, Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| TBD | |
| Amperage | 708.3mA |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Features | 3D Digital Noise Reduction, Audio Compression, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Gain Control, Motion Detection, SD Card Local Storage |
| Certifications | CE, FCC, NDAA, ONVIF, TAA, UL Listing |
| Indoor/Outdoor | Indoor |
| Country of Origin | KR |
| Environmentally Friendly | Yes |
| Impact Protection Rating | IK09 |
| Environmental Certification | RoHS |
