Digital Watchdog DWC-PZ21M69TW MEGApix Pano 21MP Multi-Sensor Vandal IP Camera, x 8mm Lens, White

SKU: DWC-PZ21M69TW Digital Watchdog
Image of 6K-PZ21M69TW

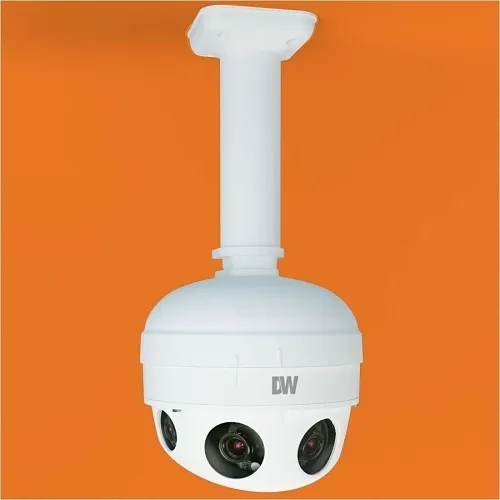

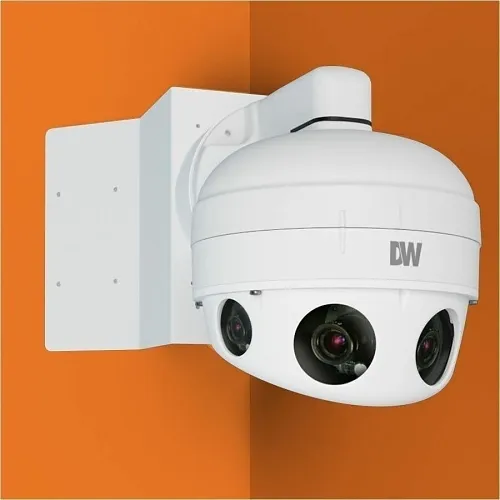

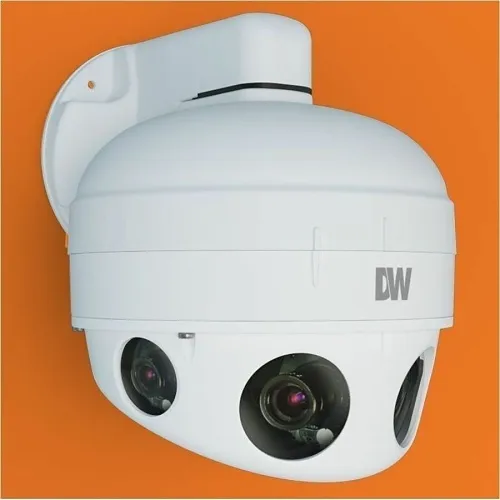

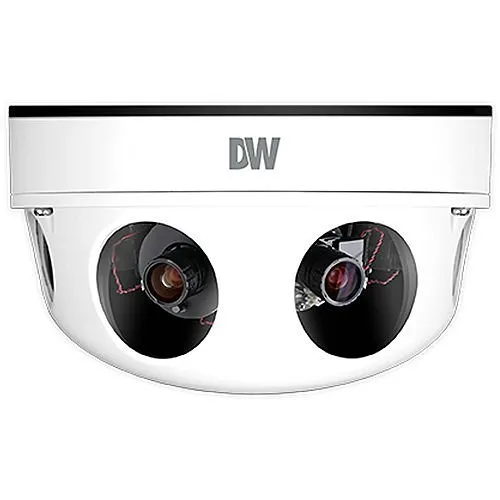

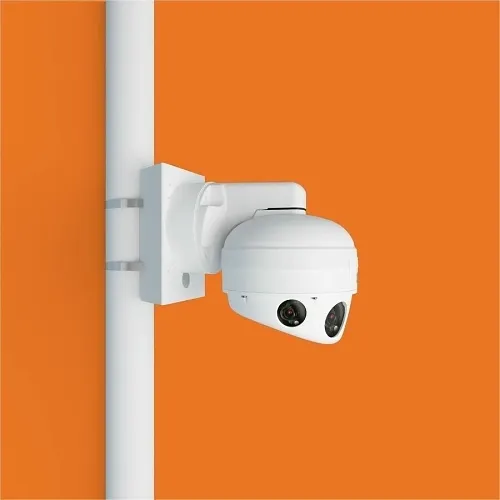

Product images for Digital Watchdog DWC-PZ21M69TW MEGApix Pano 21MP Multi-Sensor Vandal IP Camera, x 8mm Lens, White. 6 image(s) available. Click on image to view full size.
NDAA Compliant TAA Compliant

Key Features

  • Capture a full 180° scene with one MEGApix Pano camera, cutting hardware and installation costs
  • 21MP multi-sensor clarity at real-time 30fps delivers actionable detail across wide areas
  • Rugged IP66, die-cast aluminum vandal housing protects critical outdoor surveillance assets
  • PoE-enabled with included injector for quick, single-cable network power and simplified deployment
  • Built-in analytics (human/vehicle detection), two-way audio and Smart DNR for smarter monitoring

Quick Specifications

Product Model
DWC-PZ21M69TW
Brand Name
Digital Watchdog
Product Line
MEGApix
Product Name
MEGApix Pano 21MP multi-sensor vandal IP camera with fixed lenses
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Designed for enterprise security and large-area monitoring, the Digital Watchdog MEGApix Pano 21MP multi-sensor IP camera gives you comprehensive, high-resolution surveillance from a single mount. Combining four 1/1.8" sensors with 8mm fixed lenses, this panoramic camera captures a 180° field of view at real-time 30fps and up to 3072 x 1728 resolution so operators can see both broad coverage and fine detail—reducing the number of cameras required and simplifying management. Built for demanding outdoor environments, the die-cast aluminum vandal-resistant housing is IP66 rated and features zero-distortion anti-reflective glass to maintain image clarity in any weather. PoE support (injector included) streamlines installation while dual H.264/MJPEG streams, built-in Smart DNR, and analytics like human and vehicle detection improve recording efficiency and event response. Ideal for campuses, parking lots, transit hubs and city surveillance projects, this MEGApix Pano camera helps integrators deliver reliable, scalable security solutions. Add it to your next project to upgrade perimeter protection and situational awareness.

Features

  • Capture a full 180° scene with one MEGApix Pano camera, cutting hardware and installation costs
  • 21MP multi-sensor clarity at real-time 30fps delivers actionable detail across wide areas
  • Rugged IP66, die-cast aluminum vandal housing protects critical outdoor surveillance assets
  • PoE-enabled with included injector for quick, single-cable network power and simplified deployment
  • Built-in analytics (human/vehicle detection), two-way audio and Smart DNR for smarter monitoring
General Information
Brand Name Digital Watchdog
Manufacturer Digital Watchdog
Product Line MEGApix
Product Name MEGApix Pano 21MP multi-sensor vandal IP camera with fixed lenses
Product Type Network Camera
Product Model DWC-PZ21M69TW
Manufacturer Part Number DWC-PZ21M69TW
Supported Network Protocols IPv4
Technical Information
Material Aluminum Die-cast
Lens Type Fixed
Protocols 802.1x, DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP)
Night Vision Yes
Programmable Yes
Field of View Horizontal, Vertical
Video Formats H.264, MJPEG
Output Voltage 12V DC
Maximum Aperture f/1.6
Motion Detection Yes
Maximum Frame Rate 30fps
American Wire Gauge 18AWG
Built-in Microphone Yes
Minimum Focal Length 8mm
Connectivity Technology Wired
Effective Camera Resolution 21MP
Audio
Audio Encoding G.711
Memory Card Slot Yes
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Certifications
TAA Compliant Yes
NDAA Compliant Yes
Ingress Protection Rating IP66
Display & Graphics
Image Sensor Size 1/1.8"
Number of Sensors 4
Maximum Video Resolution 3072 x 1728
Environmental Conditions
Operating Humidity 0-80% RH (Non-condensing)
Operating Temperature (T-T) -4-122°F
Maximum Operating Temperature 122°F (50°C)
Minimum Operating Temperature -4°F (-20°C)
Exposure
Minimum Illumination 0.16 lux (color)
Longest Shutter Speed 1/15 Second
Shortest Shutter Speed Off, x10, x2, x3, x5, x6, x7.5
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focus Modes Auto, Manual
Focal Length 8.0mm
Lens Included Yes
Maximum Focal Length 8mm
Media & Performance
Network Technology 1000 Base-T Ethernet
Network & Communication
Remote Management Yes
Others
Model Number Replaces DWC-PZ21M69T
Physical Characteristics
Color White
Weight 4.40lb
Durability Dustproof, Tamper Resistant, Vandal Resistant, Waterproof, Weather Resistant
Form Factor Panoramic
Power Description
Input Voltage 12V DC
Storage
Storage Type Memory Card
TBD
Amperage 1.79A
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 5-Year
Miscellaneous
Features 3D Digital Noise Reduction, Auto Flip, Back Light Compensation (BLC), Defog, Dual Stream, Gain Control, Highlight Compensation (HLC), Human Detection, Motion Detection, Vehicle Detection, White Balance
Certifications CE, FCC, NDAA, UL Listing
Country of Origin KR
Environmentally Friendly Yes
Environmental Certification RoHS
